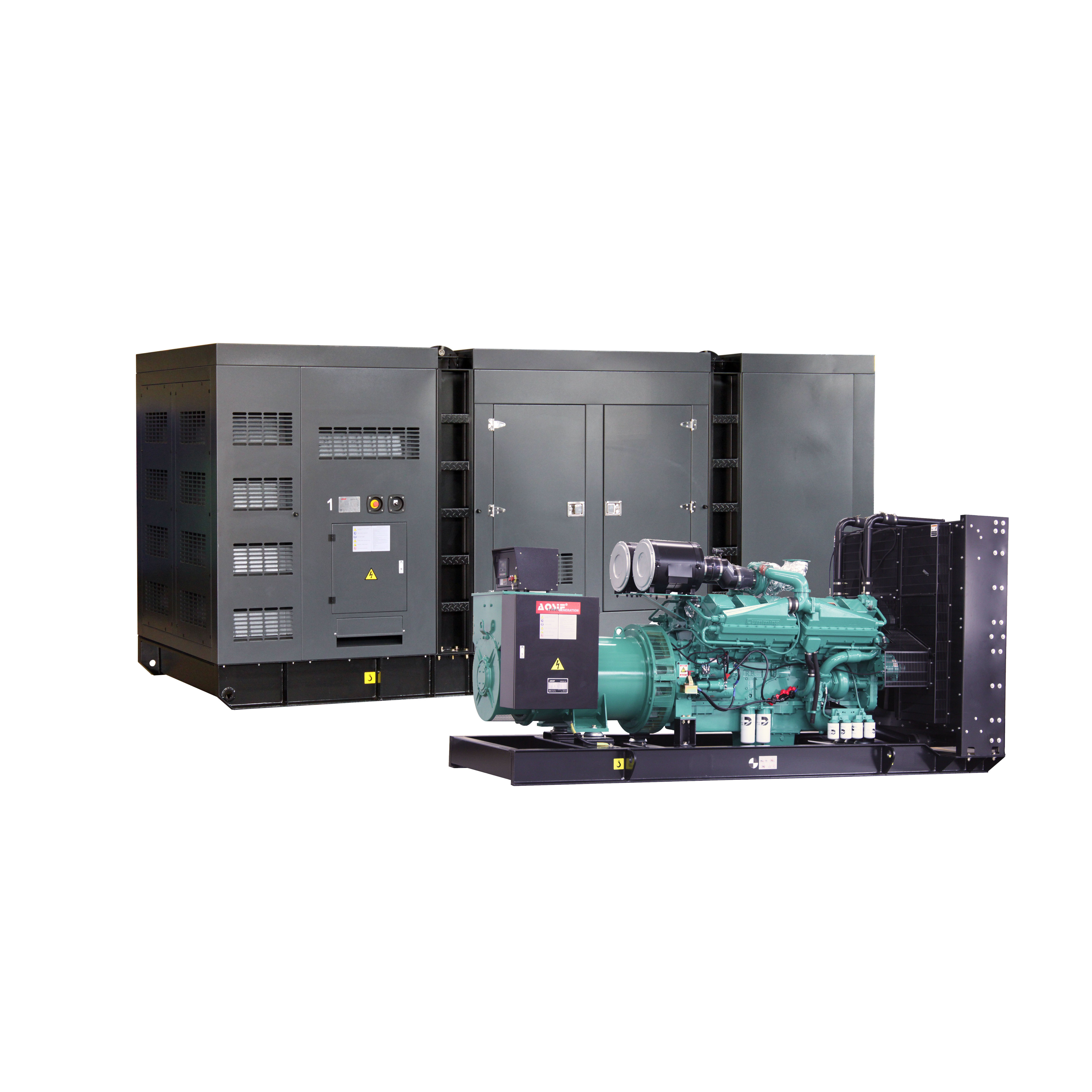

AOSIF 550 kva pto diesel generator price auto start generator diesel electric generator with cummins engine 550kva

FOB Reference Price: Get Latest Price

≥1 Sets

US $38042

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Fujian, China

Brand Name:: AOSIF

Model Number:: AC688

Speed:: 1500rpm

Engine Brand:: with Cummins engine

Engine Model:: KTAA19-G6A

Alternator brand:: Leroysomer

Alternator:: TAL-A47-F

Controller:: Deepsea 6120

Type:: Silent(super Silent)or Open

Phase:: 3 phase

Certificate:: CE/ISO9001/ISO14001

Warranty:: 12 Months/1000 Hours

Governor:: electrical

Quick Details

Rated Voltage:: 380V 400V 415V

Rated Current:: 1000A

Frequency:: 50hz

Place of Origin:: Fujian, China

Brand Name:: AOSIF

Model Number:: AC688

Speed:: 1500rpm

Engine Brand:: with Cummins engine

Engine Model:: KTAA19-G6A

Alternator brand:: Leroysomer

Alternator:: TAL-A47-F

Controller:: Deepsea 6120

Type:: Silent(super Silent)or Open

Phase:: 3 phase

Certificate:: CE/ISO9001/ISO14001

Warranty:: 12 Months/1000 Hours

Governor:: electrical

Certificate Show

Certification & Partner

—————————————————————————————————————————

Power Technical Data

—————————————————————————————————————————

Genset Main Technical Data:

Genset Model

AC688

Prime Power(50HZ)

--/ --

Standby Power(50HZ)

550KW / 688KVA

Frequency/Speed

50Hz/1500rpm

Standard Voltage

230V/400V

Available Voltage

220V/380V, 240V/415V

Phases

Three phases, four wires

Manufacturer

Xiamen AOSIF Engineering LTD.

Engine Specifications:

Manufacturer

Chongqing Cummins Engine Co. Ltd.

Model

KTAA19-G6A

Engine speed

1500rpm

Engine power

--------------------Standby power

610kw /818HP

--------------------Prime power

N/A

Type

4 cycle, In-line, 6-cylinder

Aspiration

Turbocharged and Air to Air Aftercooled

Bore * Stroke

159*159 mm

Displacement

18.9 L

Compression ratio

13.0:1

Idle speed

675 – 775 r/min

Brake mean effective pressure(standby power)

2568kPa

Piston speed

7.9 m/s

Friction horsepower

45kw(60HP)

Alternator Specifications:

Manufacturer

Leroy-somer Electro-technique (Fuzhou) Company Ltd.

Model

TAL-A47-F

Frequency

50HZ

Voltage

400V

Output power-----------Continuous duty/40℃

625kVA / 500kW

-----------Stand-by/27℃

688kVA / 550kW

Phase

3 ph.

Power factor

P.F.=0.8

Insulation class

Winding pitch

2/3 (N° 6S )

Number of wires

Protection

IP23

Altitude

≤ 1000 m

Overspeed

2250 min-1

Excitation system

shunt

AVR type

R120

Voltage regulation

±0.5%

Short-circuit current

300% (3IN) 0s

Total harmonics (THD)

no load < 4%

Wave form : NEMA = TIF

< 50

Air follow

1.1 m3/s

Relative humidity

≤ 95%

Bearing

Single

Standard Supply Scope

—————————————————————————————————————————

Optional Supply Scope

—————————————————————————————————————————

You Can Choose

Details Images

—————————————————————————————————————————

Factory Show

—————————————————————————————————————————

Why us

—————————————————————————————————————————

Our Exhibition

—————————————————————————————————————————

Packing

—————————————————————————————————————————

Our Sales Promise

—————————————————————————————————————————

1. AOSIF Engineering provides a full line of brand new and high quality products. Each and every unit is strictly factory tested before shipment.
2.Quality Warranty is according to our standard conditions: 12 months from BL date or 1,000 running hours, whichever comes first.
3. Service and parts are available from XIAMEN AOSIF Engineering Ltd. or distributors in your location.
4.All the products from Xiamen AOSIF Engineering Ltd. is CE marked.

If You Are Interesting In AOSIF, Pls Contace Us Freely ,Welcome To Visit AOSIF!!
