- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
JWAT203
-
Material:
-
Si-aluminium alloy
-
Color:
-
yellow,gray,blue,red
-
Waterproof Telephone:
-
Yes
-
Output Voltage:
-
AC220V 50Hz
-
Working Current:
-
≤0.2A
-
Frequency Response:
-
250~3000 Hz
-
Ambient Temperature:
-
-40~+80°c
-
Atmospheric Pressure:
-
80~110kpa
-
Size:
-
343X294X206mm
-
Weight:
-
12kg
Quick Details
-
Brand Name:
-
Joiwo
-
Type:
-
Antique Telephone
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
JWAT203
-
Material:
-
Si-aluminium alloy
-
Color:
-
yellow,gray,blue,red
-
Waterproof Telephone:
-
Yes
-
Output Voltage:
-
AC220V 50Hz
-
Working Current:
-
≤0.2A
-
Frequency Response:
-
250~3000 Hz
-
Ambient Temperature:
-
-40~+80°c
-
Atmospheric Pressure:
-
80~110kpa
-
Size:
-
343X294X206mm
-
Weight:
-
12kg
Industrial Pbx telephone system set ,intercom marine loudspeaker telephone phones with sim cards
Range
Can be used in the explosive, gas dangerous places,suitable for the industry of oil , chemical industry,
oil refining, wharf, fire, power plant, steel etc.
Features
1.The communication system can be independent and composed with telephone,program-controlled switches and coupler.
2.Can be directly connected to a telecommunications network
3.Telephone amplifying sounds’s volume can be adjusted according to their environment.
4.Automatic amplification function and broadcast function
5.The telephone circuit uses the universal double integrated circuit, with the advantage of hair Accuration,
clear communication and stable work.
6.The degree of protection IP65 can apply to damp, dust and corrosion and other harsh environment.
7.The shell of telephone’s design is patent, waterproof, dustproof, without waterproof cover, beautiful and
practical.
8.Shell is made of silicon aluminum alloy die casting and the surface temperature of anti-static spray,applicable to a variety of harsh environment, high mechanical strength, strong shock resistance.
9.Using our patent stainless steel keyboards, contact resistance≤30 ohm, service life ≥2 million,push force 160-200 grams,good hand feeling.
10.The handle uses imported PC explosionproof plastic material, thermostability of the PTFE wire,. The military anti-noise transmitter, clear conversation in the 115dB environment.
1.Hook adopts magnetic induction swith,life cycle ≥ 500 thousand
Method of use
Pick up the phone to call another explosionproof explosionproof telephone, after 6 ring bell automatically switch on the
speaker, and expand the broadcast calling. The called party take off the hook after hearing the call (1 minutes nobody
take off the hook will automatically hang up), the speaker is automatically closed, both sides can talk.
Technical parameters
Explosion-proof mark |
Exd[ib]ib II BT6 DIP A20 T A ,T6 |
Defend grade |
IP65 |
Working voltage |
AC220V 50Hz |
Wait\working current |
≤ 0.2A |
Frequency response |
250~3000 Hz |
Ambient temperature |
- 4 0~+ 60 ° c |
Atmospheric pressure |
80~1 10 KPa |
Relative humidity |
≤ 95 % |
Amplify output power |
10~ 25W |
effective distance of the call |
5Km |
Size |
343*294*206mm |
Outlet thread |
G-3/4” |
Installation |
wall-mounted |
Weight |
12kg |

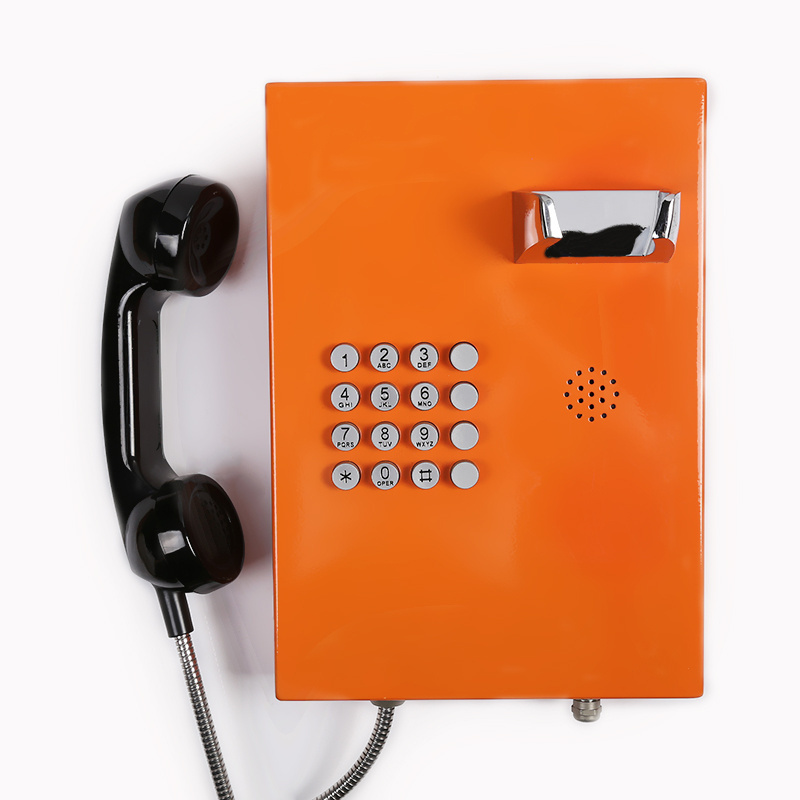

Product show
