- Product Details
- {{item.text}}
Quick Details
-
Mounting Type:
-
Side Mount Top Mount
-
Description:
-
Detecting Liquid Level for high Level or Low level, Liquid Level Float Switch
-
Manufacturing Date Code:
-
By Actual Production Date
-
Model Number:
-
FAST-80LPP~400LPP
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZFAST
-
Theory:
-
Magnetic Reed Contact
-
Output:
-
Switching Signal ON/OFF
-
Material:
-
Plastic PP
-
Rod Length:
-
80~200mm
-
Mounted direction:
-
Vertically Mounted M12
-
Liquid Level/Float number:
-
1
-
Switching Type:
-
NO/NC
-
Switched Power:
-
10 / 70W
-
Switched Voltage Vdc/Vac:
-
(200/140) / (200/250)
-
Switched Current:
-
0.5 / 1.0A
-
Temp. Range:
-
-40 ~ +85°C
-
Other Options:
-
wires length, terminals and customization as your drawing
Quick Details
-
Usage:
-
Detecting Liquid Level in Water Tank
-
Series:
-
Float Switch/Liquid Level Sensor
-
Features:
-
Detecting Liquid Levels
-
Mounting Type:
-
Side Mount Top Mount
-
Description:
-
Detecting Liquid Level for high Level or Low level, Liquid Level Float Switch
-
Manufacturing Date Code:
-
By Actual Production Date
-
Model Number:
-
FAST-80LPP~400LPP
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZFAST
-
Theory:
-
Magnetic Reed Contact
-
Output:
-
Switching Signal ON/OFF
-
Material:
-
Plastic PP
-
Rod Length:
-
80~200mm
-
Mounted direction:
-
Vertically Mounted M12
-
Liquid Level/Float number:
-
1
-
Switching Type:
-
NO/NC
-
Switched Power:
-
10 / 70W
-
Switched Voltage Vdc/Vac:
-
(200/140) / (200/250)
-
Switched Current:
-
0.5 / 1.0A
-
Temp. Range:
-
-40 ~ +85°C
-
Other Options:
-
wires length, terminals and customization as your drawing
>>>We are switch and sensor manufacturer for 20 years<<<
Shenzhen Fast Sensor Co., Ltd
Tel.: +86 755 3393 6919 Fax: +86 755 3393 6682
Contact: Sophy DENG Skype: sophy-deng
M.B/Wechat/WhatsApp: +86 134 8061 4936
-------------------------------------------
Below is the catalog of float level switches/fuel level sensors,you can learn more↓↓↓
Below is the catalog of water leak sensors,you can learn more↓↓↓
Below is the catalog of hall/pulse/turbine flow sensors,you can learn more↓↓↓
Below is the catalog of water flow switches,you can learn more↓↓↓

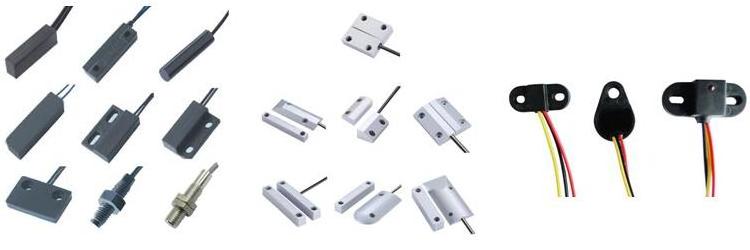

Below is the catalog of magnetic reed sensors,you can learn more↓↓↓

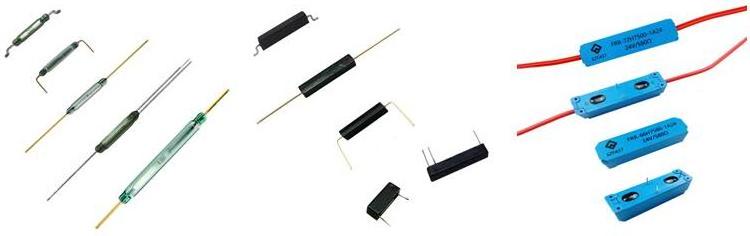

Below is the catalog of plastic housed reed switches,you can learn more↓↓↓
Below is the catalog of glass reed switches,you can learn more↓↓↓
