It is suitable for frozen food, sea food,fruits etc packing
- Product Details
- {{item.text}}
Quick Details
-
Production Capacity:
-
20-50 Bag/Min
-
Weight (KG):
-
2000
-
Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Zon Pack
-
Dimension(L*W*H):
-
4m*2.5m*4m
-
Product name:
-
Automatic Vertical Packing Machine
-
Packing speed:
-
20-50 Bag/Min
-
weighing range:
-
10g-5000g
-
Accuracy:
-
0.1-1.5g
-
Material:
-
Stianless Steel
-
Certification:
-
CE
-
Bag type:
-
Gusset Bag,pillow bag,punching bag,connecting bag.
-
After Warranty Service:
-
Video technical support
Quick Details
-
Function:
-
FILLING, Sealing, weighing
-
Packaging Type:
-
Bags, Film, Pouch, Stand-up Pouch
-
Packaging Material:
-
Plastic
-
Production Capacity:
-
20-50 Bag/Min
-
Weight (KG):
-
2000
-
Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Zon Pack
-
Dimension(L*W*H):
-
4m*2.5m*4m
-
Product name:
-
Automatic Vertical Packing Machine
-
Packing speed:
-
20-50 Bag/Min
-
weighing range:
-
10g-5000g
-
Accuracy:
-
0.1-1.5g
-
Material:
-
Stianless Steel
-
Certification:
-
CE
-
Bag type:
-
Gusset Bag,pillow bag,punching bag,connecting bag.
-
After Warranty Service:
-
Video technical support
Product Description
|
Model
|
ZH-BL10
|
|
System Output
|
≥ 8.4 Ton/Day
|
|
Packing speed
|
30-70 Bags / Min
|
|
Packing Accuracy
|
± 0.1-1.5g
|
|
Bag size(mm)
|
(W) 60-200 (L)60-300 for 420VFFS
(W) 90-250 (L)80-350 For 520VFFS
(W) 100-300 (L)100-400 For 620VFFS
(W) 120-350 (L)100-450 For 720VFFS
|
|
Bag making mode
|
Pillow bag, standing bag (gusseted), punch, Linked bag
|
|
Range of measuring (g)
|
5000
|
|
Thickness of film (mm)
|
0.04-0.10
|
|
Packing Material
|
laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE,
PET/ AL/PE , NY/PE, PET/ PET,
|
|
Power Parameter
|
220V 50/60Hz 2.2KW
|
Product Application

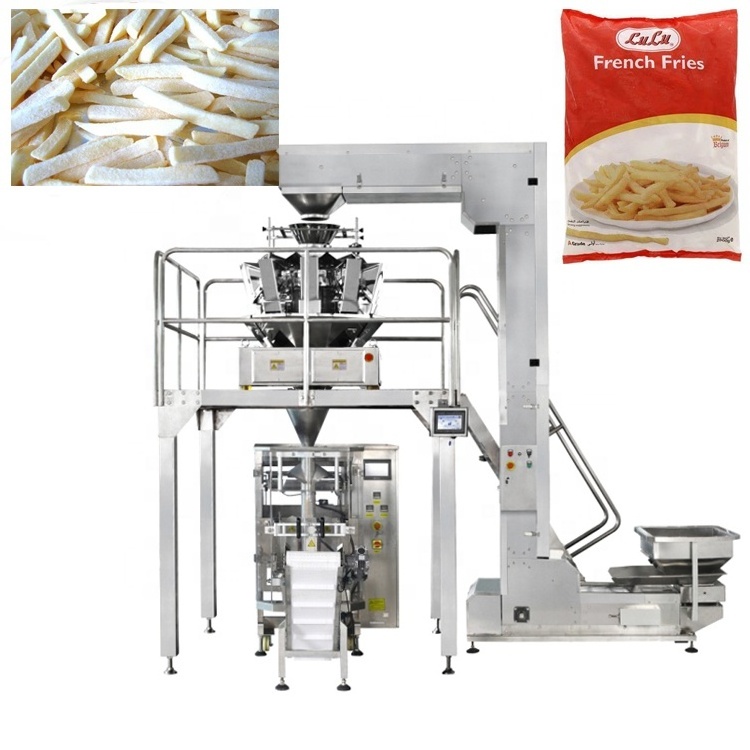

System unite
1.Z arm conveyor/Incline conveyor
2.Multihead weigher
3.Working Platform
4.VFFS
5.Finished bags conveyor
6.Check weigher/Metal detector
7.Rotary table
Main Features
For weighing machine
1.The amplitude of vibrator can be auto-modified for more efficient weighing.
2. High precise digital weighing sensor and AD module have been developed.
3. Multi-drop and succeeding drop methods can be selected to prevent puffed material blocking the hopper.
4. Material collecting system with function of unqualified product remove, two direction discharge, counting, restore default setting.
5. Multi-language operation system can be selected basing on customer's requests.
For packing machine
6.Adopting PLC from Japan or Germany to make machine run stable. Touch screen from Tai Wan to make operation easy.
7. Sophisticated design on electronic and pneumatic control system makes the machine with high level of precision, reliability and stability.
8. Single or double belt pulling with servo of high precise positioning makes film transporting system stable, servo motor from Siemens or Panasonic.
9. Perfect alarm system to make problem solved quickly.
10. Adopting intellectual temperature controller,the temperature is controlled to ensure neat sealing.
11. Machine can make pillow bag and standing bag (gusseted bag) according to customer's requirements. Machine also can make bag with punching hole & linked bag from 5-12 bags and so on.
Detailed Images
1.Multihead weigher
We usually use multihead weigher to measure the target weight or count pieces.
It can work with VFFS,doypack packing machine,Jar packing machine.
Machine type:4 head, 10head ,14 head,20 head
Machine accuracy :± 0.1g
Material weight range: 10-5kg
Right photo is our 14 heads weigher
2. Packing machine
304SS Frame,
Bag size:
ZH-V420 Packing machine: (W) 60-200 (L)60-300
ZH-V520 Packing machine:(W) 90-250 (L)80-350ZH-V620 Packing machine:(W) 100-300 (L)100-400
ZH-V720 Packing machine:(W) 120-350 (L)100-450
Bag making :
Pillow bag, standing bag (gusseted), punch, Linked bag
Eye mark sensor
It is for detetcing eye mark on Film.For cutting well,and bag lenth is suitable
Siemens /Mitsubishi PLC
PLC conrtol
Servo Driver
It is for driving motor to pull film
Printing machine
Our Standard Printing machine is ribbon printing for date printing.
if you want to print letters,OQcode,Bar code,we have other type printing machine which works
Printing type we can do
We have printing machines which can printing dates,OQ code,bar code,letters,See above photos
