New generation of powerful GNSS mainboard Board-803 with 1598 channels enables C6 to support a wide range of satellite signals, including GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS, etc, with greater single stability and positioning accuracy.
- Product Details
- {{item.text}}
Quick Details
-
Channels:
-
1598
-
GPS:
-
L1,L1C,L2C,L2P,L5
-
Battery:
-
6800mAh, 3.7V
-
Operating Time:
-
15h
-
Tilt Range:
-
Up to 60°
-
Galileo Tracking:
-
E1,E5A,E5B,AltBOC
-
Protection Class:
-
IP67
-
Type & Storage:
-
SSD 8GB
-
GLONASS Tracking:
-
G1,G2
-
BeiDou Tracking:
-
B1,B2,B3
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
GuangZhou China
-
Brand Name:
-
TIANYU
-
Channels:
-
1598
-
GPS:
-
L1,L1C,L2C,L2P,L5
-
Battery:
-
6800mAh, 3.7V
-
Operating Time:
-
15h
-
Tilt Range:
-
Up to 60°
-
Galileo Tracking:
-
E1,E5A,E5B,AltBOC
-
Protection Class:
-
IP67
-
Type & Storage:
-
SSD 8GB
-
GLONASS Tracking:
-
G1,G2
-
BeiDou Tracking:
-
B1,B2,B3
Product Description

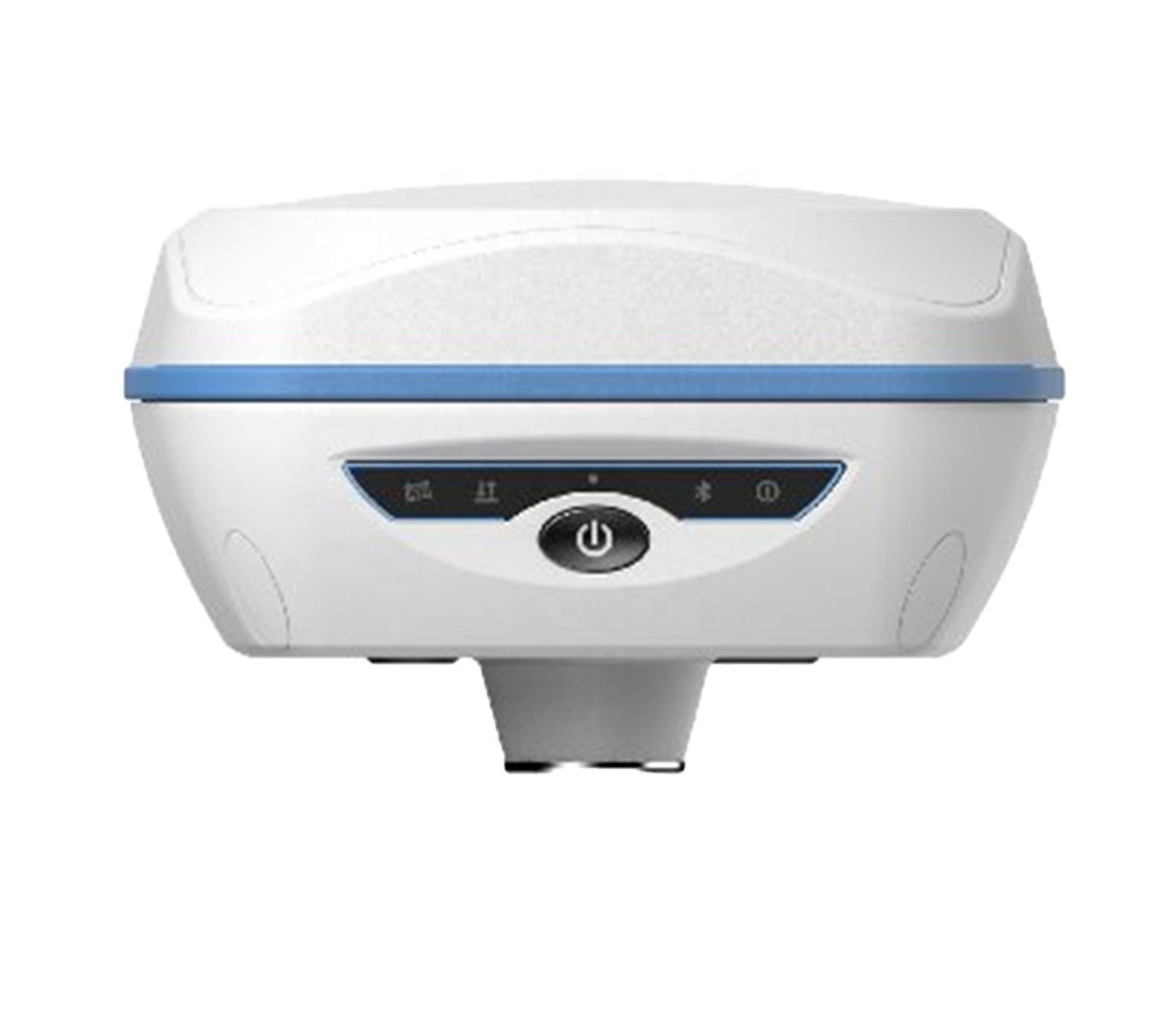

TIANYU C6 GNSS POSITIONING SYSTEM
*
Buil
t-in transceiver integratedradio, working frequency 410-470MHz
Trim Talk
450S,
TrimMark3,SOUTH CHC SATEL HI-TARGET are all compatible.Equipped with Far-Link "Simultaneous" radio module,based on Farlink protocol, it can increase the sensitivity
and efficiency of radio signal, achieve the typical working range as 8KM operation, and meet the needs of customers for small and medium-scale.
*
Built-in 6800mAh high-capacity battery, the battery life is more than 15 hours, one charge, meets all-day work.Equipped with fast charging charger, which can be fully charged within 5 hours.The battery core can be recharged with long life, and performance is more secure and reliable.
*By connecting through the integrated WiFi of C6, you can log on an user- friendly management platform on the browser of your phone or computer.All status monitoring and parameter settings can be achieved in a fast and easy way.
*Built-in IMU compensator, correct the coordinates according to the tilt direction and angle of the centering rodautomatically within 60°,assist you quickly and accurately survey or stake out points without leveling the pole,error less than 3cm
within 45° inclination, improve working efficiency by 20%.
*Powered by the new generation of embedded Linux operating system, C6 has a greatly improved RTK performance and efficiency.One unique core processing mechanism is able to response to more than one command at one time.
*Android 8.1 5” touch screen 4GB/32GB Alphanumeric keypad Ip67
*
Android software SurvX Easy-to-use work flow Useful survey tools Google map supported DXF, DWG import & display
*
10/25W Output SOUTH/Trimtalk Protocol 403-473MHz Blue tooth 4.0 Ip67
H6 Controller
H6 as an Industrial controller has rugged cover which reaches to IP67. The device is waterproof and 1.5m drop proof, your data will be protected and the reliability of the device in the most challenging environments. In addition, the 9200 mAh Li-ion battery fulfills the long time working time need.
Dual nano SIM card slots supports 4G network bring perfect experience of high speed net
connection
Integrated with various sensors,like NFC, gyroscope, E-compass,
G-sensor, etc. New generation Blue tooth V4.1 working distance is more than 20 meters , the
advanced WIFI module makes the working range up tp 30 meters in good condition.
|
|
Operating system
:Android 8.1
CPU
:Octa-core 2.0GHz
RAM
:4GB
ROM
:64GB
Storage extension
:Support
128 GB extension
|
|
SIM
FREQUENCIES
|
GSM
: B2/B3/B5/B8
FDD-LTE
:B1/B2/B3/B4/B5/
B7/
B8/B12/B13/B17/B20/
B25/B28
TDD-LTE
:
B38/
B39/
B40
/B41
T
DSCDMA
:
B34/
B39
WCDMA
:
B1/B2/B5/B8
CDMA1x/CDMA2000
:BC0
Dual SIM card
slot
:
Support two nano sim
USB
:type-C, support
OTG
WiFi(WLAN)
:
IEEE 802.11 a/b/ g/n,
2.4G/
5G
Blue tooth
:V4.1
|
|
|
Display
:5 inches capacitive touch screen (720×1280
dpi)
Keypad
:Full keypad
Audio
:Integrated speaker, microphone
Camera
:13megapixel camera with auto
focus
Flash light:High light Flash LED
Support
:Gyro,NFC,G
Sensor
Compass
GNSS
:GPS/GLONASS/BDS
|
|
|
Battery Capacity
:9200mAh
Stand-by Time
:240 Hrs
Operating Time
:
15 Hrs
|
|
ENVIROMENT
|
Waterproof/Dustproof
:IP67
Shockproof
:1.5m
Operation temperature
:-20℃~+60℃
Storage temperature
:
-30℃~+70℃
|
|
PHYSICAL
PROPERTY
|
Size
:235mm*90mm*35mm
Weight
:520g
|
Specification of TIANYU S
outh C6
|
|
Channels
:1598
GPS Tracking
:L1,L1C,L2C,L2P,L5
GLONASS Tracking
:G1,G2
BeiDou Tracking
:B1,B2,B3
Galileo Tracking
:E1,E5A,E5B,AltBOC
QZSS
:L1,L2C,L5
SBAS
:L1*
IRNSS
:L5*
Positoning Rate
:1-20Hz
|
|
|
Code Differential
:Horizontal 0.25m±1ppm (rms) Vertical 0.50m±1ppm (rms)
Static
:Horizontal 2.5mm±0.5ppm (rms)
Vertical 5mm±0.5ppm (rms)
Real-Time Kinematic
:Horizontal 8mm±1ppm (rms) Vertical 15mm±1ppm (rms)
Network RTK *By controller
:Horizontal8mm±0.5ppm (rms)
Vertical 15mm±0.5ppm (rms)
|
|
|
Tilt Range
:
Up to 60°
Accuracy
:＜2cm(within 30°) ＜5cm(within 60°)
|
|
|
UHF Radio Module :X-link 1W 410-470MHz Protocol :TrimTalk 450s, TrimMark3, PCC EOT, SOUTH WiFi :802.11b/g/n Hotspot Data Link Blue tooth :Blue tooth 2.1 +EDR and 4.0 NFC :<10cm |
|
INTERFACES
|
Button
:One
LED Indicator
:Blue tooth, Data Link, Satellite, Power
|
|
|
Type & Storage
:SSD 8GB External USB pen drive
Date Transfe
:USB transfer Supports FTP/HTTP download
Format (Differential)
:CMR+, sCRMx, RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2
GPS Output Format :NMEA 0183, PJK plane coord., binary code, Trimble GSOF VRS, FKP, MAC Network Model :NTRIP fully supportable |
|
POWER SUPPLY
|
Battery
:Internal Li-on, 6800mAh, 3.7V PowerCase supported
Operating Time :15h |
|
PHYSICAL
|
Dimension
:84mm (H), 135mm (W)
Weight with batt :890g Operating Temp :-45°C to 60°C Protection Class :IP67 Shock :2m drop on hard surface Vibration :40G 10ms sawtooth wave |
