Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
THINKER MOTION
-
Model Number:
-
42E248-BS1204-X-4-150
-
Current / Phase:
-
2.5
-
Voltage/Phase (V):
-
2
-
Resistance/Phase (Ω):
-
0.8
-
Inductance/Phase (mH):
-
1.8
-
Number of Lead Wires:
-
4
-
Rotor Inertia (g.cm2):
-
70
-
Motor Weight (g):
-
385
-
Motor Length L (mm):
-
48
-
Screw Type:
-
ball screw
-
Ball Screw Diameter (mm):
-
12
-
Ball Screw Lead (mm):
-
4
Quick Details
-
Phase:
-
2
-
Type:
-
Closed Loop
-
Warranty:
-
2 years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
THINKER MOTION
-
Model Number:
-
42E248-BS1204-X-4-150
-
Current / Phase:
-
2.5
-
Voltage/Phase (V):
-
2
-
Resistance/Phase (Ω):
-
0.8
-
Inductance/Phase (mH):
-
1.8
-
Number of Lead Wires:
-
4
-
Rotor Inertia (g.cm2):
-
70
-
Motor Weight (g):
-
385
-
Motor Length L (mm):
-
48
-
Screw Type:
-
ball screw
-
Ball Screw Diameter (mm):
-
12
-
Ball Screw Lead (mm):
-
4
>> Short descriptions

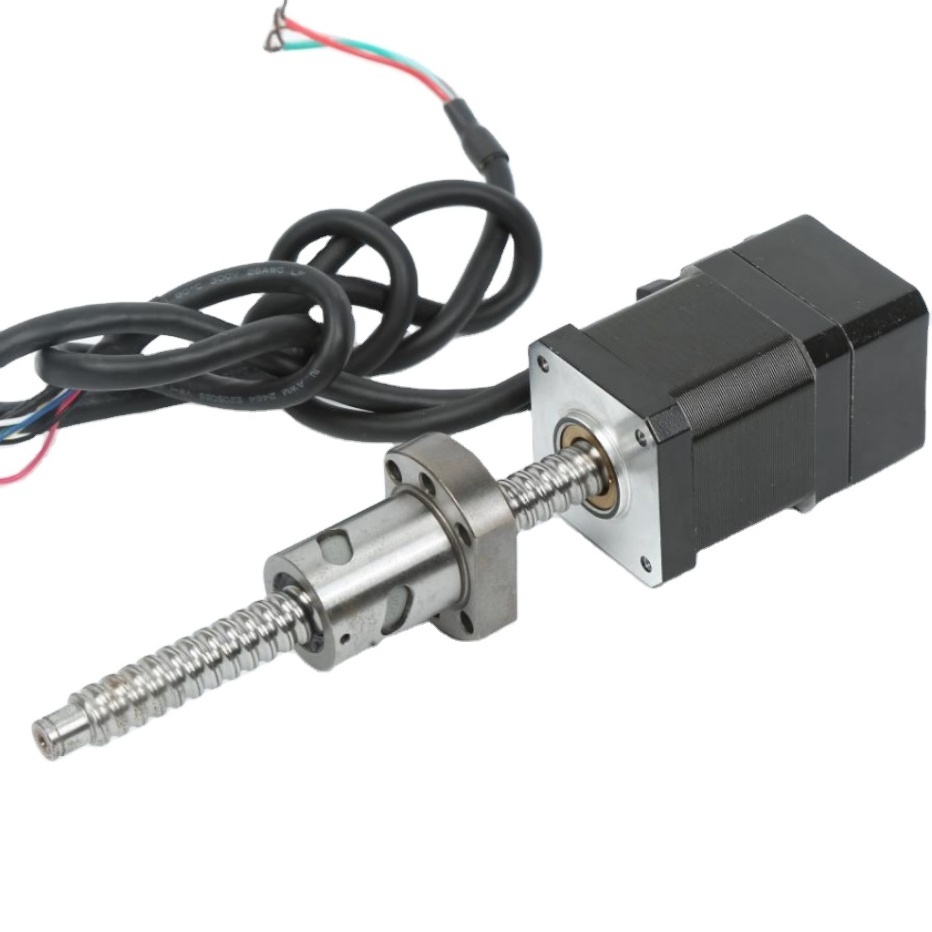

Nema 17 (42 mm) hybrid stepper motor, bipolar, 4-lead, ball screw, low noise, long life, high performance, CE and RoHS certified.
> > Electrical parameters
|
M otor Size |
V oltage/Phase ( V) |
C urrent/Phase ( A) |
R esistance/Phase ( Ω) |
Inductance/Phase ( mH) |
N umber of L ead Wires |
R otor Inertia ( g . cm 2 ) |
M otor Weight ( g) |
Motor Length L ( mm) |
| 42 | 2 | 2.5 | 0.8 | 1.8 | 4 | 70 | 385 | 48 |
W e always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
We focus on providing high quality service to our customers in quick response, accurate product selection, rapid sample building and stable product quality.
