Quick Details
-
Horsepower:
-
351 - 450hp
-
Cargo Tank Type:
-
Column plate
-
Gross Vehicle Weight:
-
25000
-
Drive Wheel:
-
4x4
-
After-sales Service Provided:
-
Video technical support
-
Brand Name:
-
SINOTRUK
-
Place of Origin:
-
Shandong, China
-
Size:
-
8268*2500*3300
-
Cargo Tank Dimension:
-
7300x2500x3400
-
Product name:
-
20 ton SINOTRUK HOWO 4x4 all wheel drive cargo truck
-
Color:
-
army green
-
Drive type:
-
4X4
-
Engine:
-
WD615.47
-
Certificate:
-
ISO9001
-
Tire:
-
1200R20
-
Brand:
-
SINOTRUK
-
Transmission:
-
HW19710
-
Axle:
-
ST16
-
Cab:
-
HW76
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 2
-
Market Segement:
-
Agricultural and sideline products transportation
-
Horsepower:
-
351 - 450hp
-
Cargo Tank Type:
-
Column plate
-
Gross Vehicle Weight:
-
25000
-
Drive Wheel:
-
4x4
-
After-sales Service Provided:
-
Video technical support
-
Brand Name:
-
SINOTRUK
-
Place of Origin:
-
Shandong, China
-
Size:
-
8268*2500*3300
-
Cargo Tank Dimension:
-
7300x2500x3400
-
Product name:
-
20 ton SINOTRUK HOWO 4x4 all wheel drive cargo truck
-
Color:
-
army green
-
Drive type:
-
4X4
-
Engine:
-
WD615.47
-
Certificate:
-
ISO9001
-
Tire:
-
1200R20
-
Brand:
-
SINOTRUK
-
Transmission:
-
HW19710
-
Axle:
-
ST16
-
Cab:
-
HW76

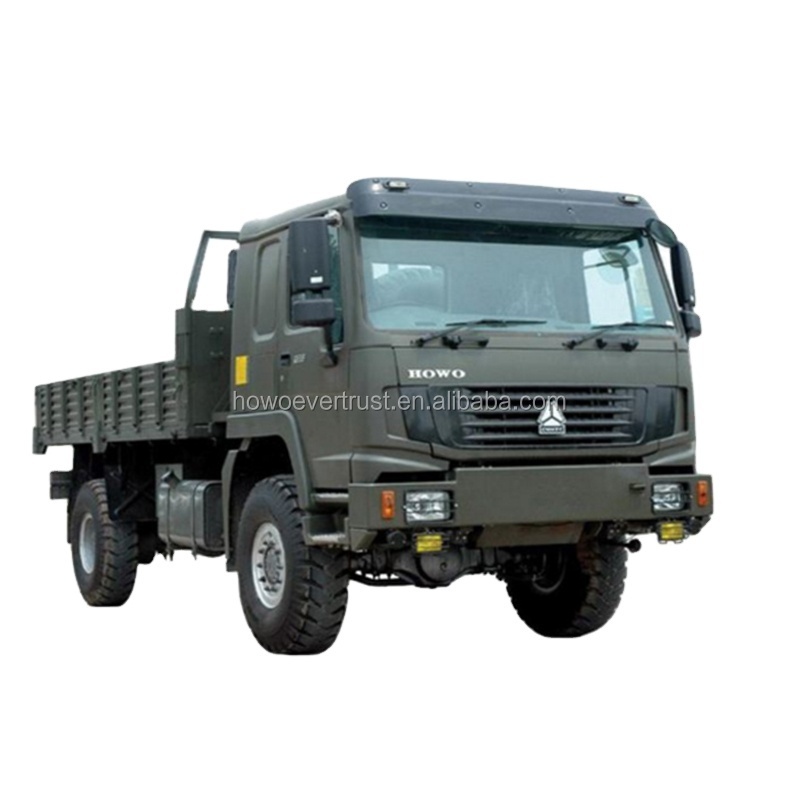

hot sale 336hp 371hp 20 ton SINOTRUK HOWO 4x4 all wheel drive cargo truck HOWO 4x4 cargo truck price
LHD RHD SINO TRUK HOWO 250-350HP 4X4 CARGO TRUCK
|
Model |
ZZ2167M4627A-290HP |
|
|
Drive Type |
4x4 LHD (RHD is optional) |
|
|
Cab |
Type |
HW7D, HOWO CABIN |
|
Equipment |
With Air Condition, One sleeper HOWO TYPE INSTRUMENT DESK |
|
|
Weight |
Kerb mass(kg) |
7780 |
|
GVW(kg) |
7780+16000 |
|
|
Dimensions |
Max.Length *Width*Height(mm) |
8268×2496×3200 |
|
Front/Rear overhang(chassis) |
1500/1400 |
|
|
Wheel base(mm) |
4600 |
|
|
Track width(mm) |
2045/1800 |
|
|
Body size |
Length *Width*Height(mm) |
5500x2300x600 |
|
Thickness of Steel |
Floor 3mm, back&side 1.5mm |
|
|
Performance |
Max. speed (km/h) |
80±10 |
|
Max. gradeability(%) |
50 |
|
|
Approach/Departure angel(°) |
20/40 |
|
|
Engine |
Brand |
SINO BRAND |
|
Model |
WD615.87 |
|
|
Power (kw/hp) |
213kw/290hp |
|
|
Max torque (N.M)/rpm |
1160/1200--1600 |
|
|
Displacement (L) |
9.726 |
|
|
Emission Standards |
Euro II |
|
|
Specific fuel consumption |
192g/kwh |
|
|
Transmission |
Brand |
SINOTR |
|
Model |
HW19710 |
|
|
Control type |
Manual |
|
|
Gear Shift |
10-forward &2-reverse speeds |
|
|
Clutch |
Type |
Single plate,diaphragm spring |
|
Diameter (mm) |
Φ430 |
|
|
Action |
Hydraulically operating with air assistance |
|
|
Brakes |
Type |
Drum |
|
Service Brake |
With dual-circuit compressed air brake |
|
|
Park Brake |
Power spring brake acting on rear wheel |
|
|
Auxiliary Brake |
WEVB |
|
|
Brand |
WABCO SYSTERM |
|
|
Steering |
Type |
ZF8098(From Germany) |
|
ZF TECHNOLOGY |
ZF8098 hydraulic steering with power assistance |
|
|
Chassis |
Type |
Ladder structure with parallel straight |
|
Dimensions (mm) |
300x80x8 |
|
|
Suspension |
Front |
Reinforced front vertical semi-ellipse leaf spring, drum shock absorber, front stabilizing bar |
|
Rear |
Reinforced rear integrated balanced suspension, single side tilt 4 riding screws, rear stabilizing bar |
|
|
Axles |
Brand |
SINOTRUK |
|
Front |
HF10 TYPE: 10 ton axle |
|
|
Rear |
AC16 TYPE: 16 ton strengthened axle, double reduction driving axle with inter-wheel differential and differential lock |
|
|
Ratio |
6.5 |
|
|
Tyre |
Type |
12.00-20 bias tire |
|
Number |
10+1 |
|
|
Fuel tank |
Tank capacity(L) |
400 |
|
Material |
Aluminum alloy |
|
|
Electrics |
Type |
24V |
|
Starter |
7.5kw(24V) |
|
|
Generator |
2.0kw(28V 70A) |
|
|
Battery |
2x180Ah |
|
