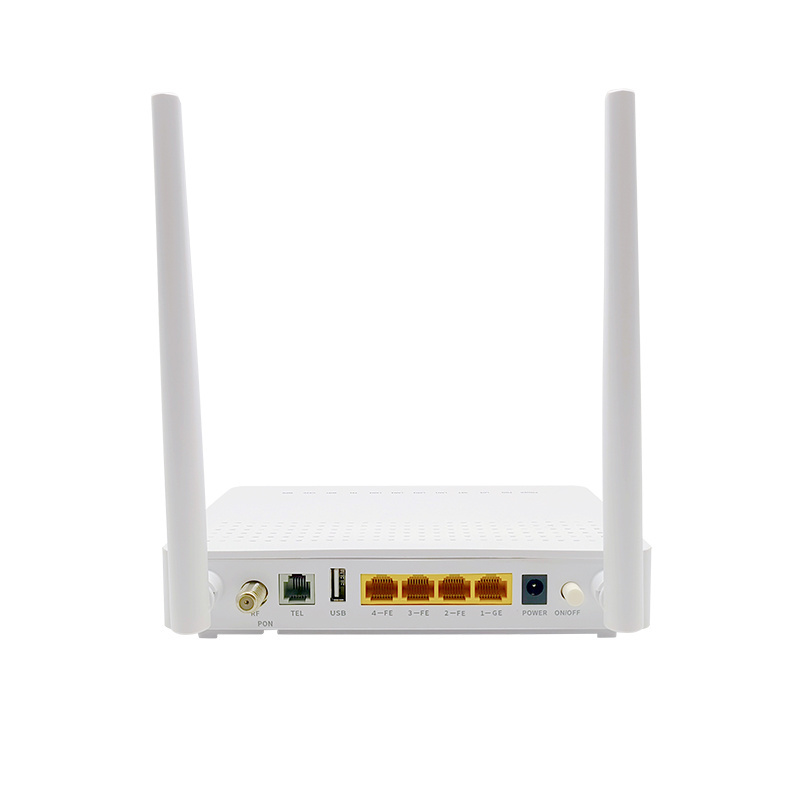

ZIKUN ZC-520T GPON CATV ONU with 1GE+3FE+WIFI+1Phone+catv+wdm same as HG8247 F668

Technical Item

Details

PON interface

1 G/ EPON port ( EPON PX 20+ and GPON Class B +)

Upstream : 1310 nm ; Downstream : 1490 nm

SC/APC connector

Receiving sensitivity : ≤-27 dBm

Transmitting optical power : 0~+4 dBm

Transmission distance : 20 KM

LAN interface

1x10/ 100/ 1000 Mbps    and 3x10/ 100 Mbps auto adaptive Ethernet interfaces . Full / Half , RJ 45 connector

USB Interface

Stamdard USB 2.0

WIFI Interface

Compliant with IEEE 802.11b/g/ n

Operating frequency : 2.400-2.4835 GHz

support MIMO , rate up to 300 Mbps

2T2R,2 external antenna 5 dBi

Support: Multiple SSID

Channel :13

Modulation type : DSSS , CCK and OFDM

Encoding scheme : BPSK , QPSK , 16 QAM and 64 QAM

CATV Interface

RF , optical power : +2~- 18 dBm

Optical reflection loss : ≥ 45 dB

Optical receiving wavelength : 1550±10 nm

RF frequency range : 47~ 1000 MHz , RF output impedance : 75Ω

RF output level : ≥ 82 dBuV ( -7 dBm optical input )

AGC range : +2~-7 dBm /-4~- 13 dBm /-5~- 14 dBm

MER : ≥ 32 dB (- 14 dBm optical input ), > 35(- 10 dBm )

POTS Port

RJ11

Max 1 km distance

Balanced Ring , 50 V RMS

LED

10 LED, For Status of WIFI , W PS , PWR , LOS/ PON , LAN1~LAN4 , NORMAL ( CATV ), FXS

Push-Button

4, for Function of Power on / off , Reset , WPS , WIFI

Operating condition

Temperature : 0 ℃~ +50 ℃

Humidity :10% ~ 90% ( non - condensing )

Storing Condition

Temperature : -40 ℃~ +60 ℃

Humidity :10% ~ 90% ( non - condensing )

Power supply

DC 12V/1A

Power Consumption

<6W

Net Weight

<0.4 kg
