Quick Details
-
Certificate:
-
NON
-
Place of Origin:
-
China
-
Product name:
-

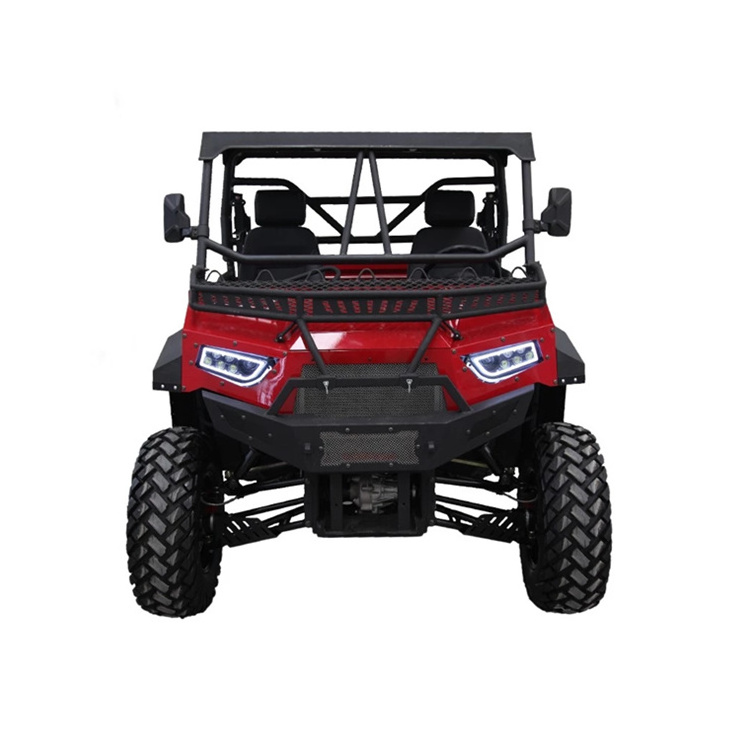

1000cc 4x4/4x2 EFI EPS UTV automatic drive
-
Max power:
-
63KW(81HP)
-
Fuel System:
-
Electronic Fuel Injection
-
Drive System:
-
Shaft, Selectable 4x4,,Front Differential Lock
-
Power steering:
-
yes
-
wheels:
-
14" Cast Aluminum rims
-
color:
-
black/red
Quick Details
-
Brand Name:
-
OEM
-
Tire Size:
-
F/R: 27x9-14/27x11-14
-
Dimension:
-
2898 mmx1680 mmx1900mm
-
Certificate:
-
NON
-
Place of Origin:
-
China
-
Product name:
-
1000cc 4x4/4x2 EFI EPS UTV automatic drive
-
Max power:
-
63KW(81HP)
-
Fuel System:
-
Electronic Fuel Injection
-
Drive System:
-
Shaft, Selectable 4x4,,Front Differential Lock
-
Power steering:
-
yes
-
wheels:
-
14" Cast Aluminum rims
-
color:
-
black/red
| 1000cc UTV Specifications: (use CF brand engine) | |||
| Loading Infomation | |||
| 40ft HQ Container | 14 Units | ||
| 20ft HQ Container | 5 Units | ||
| Packing Size | 2320×1700×1270 | ||
| Gross Weight | 930kg | ||
| Engine & Drivetrain | |||
| Cooling | Liquid | ||
| Cylinders Displacement | 996.6cc | ||
| Drive System | Shaft, Selectable 4x4, Front Differential Lock | ||
| Compression Ratio | 10.5 : 1 | ||
| Engine Type | V-twin , 4-Stroke , SOHC | ||
| Fuel System/Battery | Electronic Fuel Injection | ||
| Max Power | 63kw(81hp)/6500rpm | ||
| Max Torque | 95N.m/5500rpm | ||
| Transmission | CVT L-H-N-R-P | ||
| Starting system | Electric start | ||
| Dimensions | |||
| Overall Length×width×Height | 2898 mmx1680 mm x1900mm | ||
| Cargo Box Dimensions | 820 mm x1410 mm x250mm Dump 35° | ||
| Estimated Dry Weight | 830 kg | ||
| Front/Rea Box Capacity | 50kg/200kg | ||
| Fuel Capacity | 30L | ||
| Wheelbase | 1915 mm | ||
| Ground clearance | 340 mm | ||
| Brakes | |||
| Front/Rear Barkes | 4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers | ||
| Additional Spesifications | |||
| Cargo System | Electric dump bed | ||
| Doors | Metal Half Door | ||
| Lighting | 4 D-series lights | ||
| Mirrors | Rear mirror | ||
| Roof | Metal Roof | ||
| Tires/Wheels | |||
| Electronic Power Steering | Standard | ||
| Front Tires | 27x9-14 | ||
| Rear Tires | 27x11-14 | ||
| Wheels | Cast Aluminum | ||
| Steering | Rack & pinion Steering | ||
| Suspension | |||
| Front Suspension | Dual A-arm | ||
| Rear Suspension | Dual A-arm | ||
| Features: | |||
| Electric Power Steering | |||
| Electric Dump Bed | |||
| Metal Half Door | |||
| Electrophoretic Coating Frame and Body | |||
| Heavy-duty Bumper | |||
| Reliable V-twin Engine | |||
