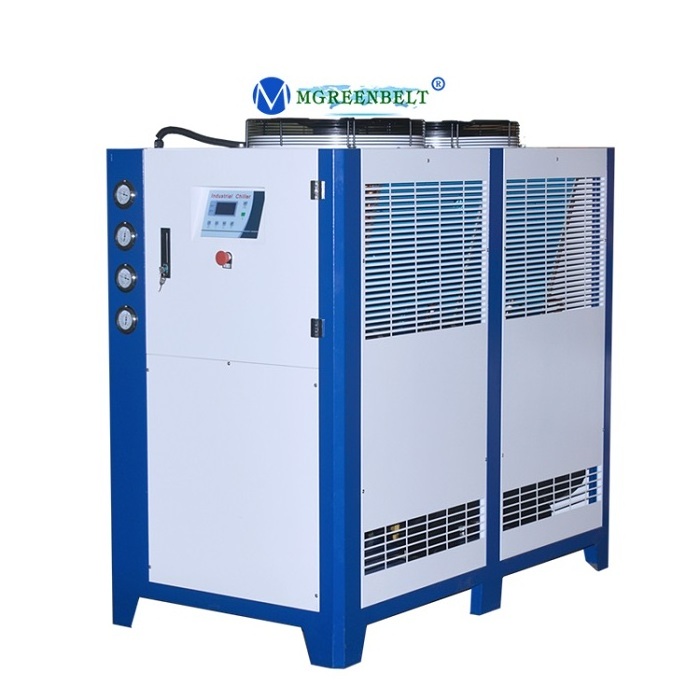

Mgreenbelt 15HP 20HP 25HP Chiller 30HP 40HP 50HP Air Cooled Chiller Industrial Water Chiller

Mgreenbelt 15HP 20HP 25HP Chiller 30HP 40HP 50HP Air Cooled Chiller Industrial Water Chiller

FOB Reference Price: Get Latest Price

≥1 Sets

US $1950

≥3 Sets

US $1750

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 3ph-220~460V/50hz~60hz(Customized)

Dimension(L*W*H):: 1610*820*1500mm

Weight:: 450 KG

Power:: 10.8kw

Working Temperature Range:: -5~35deg C

Product name:: Air Cooled Water Chiller

Refrigerant:: R22/R407C/410a etc

Compressor Brand:: Copeland \ Danfoss \ Sanyo

Cooling capacity:: 5kw-125kw/5ton-35ton

Compressor:: Hermetic Scroll

Evaporator:: Stainless Steel Tank/Shell and tube/Blate

Condenser:: Finned Copper Tube

Application:: Brewry/Chemical/Plastic

After Warranty Service:: Video technical support

Marketing Type:: New Product 2020

Quick Details

Condition:: Brand New

Place of Origin:: Shandong, China

Brand Name:: MGREENBELT

Voltage:: 3ph-220~460V/50hz~60hz(Customized)

Dimension(L*W*H):: 1610*820*1500mm

Weight:: 450 KG

Power:: 10.8kw

Working Temperature Range:: -5~35deg C

Product name:: Air Cooled Water Chiller

Refrigerant:: R22/R407C/410a etc

Compressor Brand:: Copeland \ Danfoss \ Sanyo

Cooling capacity:: 5kw-125kw/5ton-35ton

Compressor:: Hermetic Scroll

Evaporator:: Stainless Steel Tank/Shell and tube/Blate

Condenser:: Finned Copper Tube

Application:: Brewry/Chemical/Plastic

After Warranty Service:: Video technical support

Marketing Type:: New Product 2020

MGREENBELT Air Cooled Chiller Description

1). Brand and durable Scroll type compressor: Copeland, Danfoss, or Panasonic.
2).Three type evaporator support different working circuit.
A.Tank with coil, easy clearance
B. Shell and tube, high efficient
C. Brazed plate heat exchanger type( BPHE)
3). High efficient V type condenser: Screw copper tube covered aluminum fins
4). Expansion valve: Emerson
5) .Iron and stainless steel pump for different option
6). Buffer tank installed inside chiller optional
7). Inbuilt iron or stainless steel circulation water pump
8). Muti- protection devices: -Compressor inner protection,Over current protection,High/low pressure protection,Over temperature protection ,Flow switch,Phase sequence/phase missing protection,Low coolant level protection,Anti freezing protection ,Exhaust overheat protection

Air cooled glycol chiller
Model					MG-3C	MG-5C	MG-6C	MG-8C(D)	MG-10C(D)	MG-12C(D)
	-5℃	kw	5.7	8.9	10.3	13.8	19.3	21
Power	kw			3.45	5.45	6.31	8.22	10.54	12.33
Power input					3PH-220V/380V0415V-50HZ/60HZ
	Type			R22/R407C/R410a/R404a
Refrigerant	Control			Thermostatic expansion valve
Compressor	Type			Hermetic scroll type
Compressor		Power	kw	2.84	4.36	5.2	3.5*2	4.4*2	5.2*2
Evaporator	Type			Plate heat exchanger or Shell and tube
		m3/h		m³/h	1.17	1.83	2.12	2.84	3.97	4.32
		pipe diameter of chilled water			DN25	DN25	DN25	DN32	DN32	DN32
Condenser	Type			High efficiency hydrophilic aluminum foll finned type
Condenser		Power	kw	0.19	0.52	0.52	0.24*2	0.46*2	0.46*2
pump	Type			Centrigual water pump
		Power	kw	0.37	0.75	0.75	0.75	0.75	0.75
		lift	m	20	20	20	20	20	20
Protection System					Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L	mm	1200	1200	1200	1400	1560	1560
		W	mm	600	600	600	800	850	850
		H	mm	1100	1100	1100	1400	1500	1500
Weight	kg			150	200	230	310	450	500

Packing&Shipping

We consider all different potential situation in the delivery, so we use every prevention measures to avoid any
potential inconvenience or trouble.
1.Bulk cargo: Standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the surface of our products.
2. Container cargo: the equipment will be bound firmly and won't easily swing to the side, or up, or down.
Shipping: Deliver from Qingdao port within 15-35 days after the payment

company profile

RFQ

Q:How to choose a right chiller model? A:Please make sure the details as follow: 1.What's the flow rate need? 2.Inlet and outlet temperature need ? Then we will calculate what's hte cooling capacity you need. Q: How to quote a accurate solution for you? A: After make sure the cooling capacity,please inform us:1.What's the power supply need? Phase/Voltage/Frequency. 2.What's the refrigerant need? R22/R407C/R410A/R134A and etc. If this water chiller not suitable for your working need, we have different chiller series, please choose it as follows. 1. Air Cooled Scroll Chiller : cooling capacity range from 1 ton to 35 tons; 2. Water Cooled Scroll Chiller : cooling capacity range from 1 ton to 40 tons; 3. Air Cooled Screw Chiller : cooling capacity range from 20 tons to 150 tons; 4. Water Cooled Screw Chiller :cooling capacity range from 25 ton to 400 tons; Temperature range: -25 deg C~+35 deg C based on different industry working need.
