Quick Details
-
Brand Name:
-
Mosen
-
Weight:
-
3500
-
Design Pressure(MPa):
-
1.0
-
Working Temperature(℃):
-
1 - 400 ℃
-
Name:
-
Industrial Composite Autoclave Machine
-
Application:
-
Composite Industrial
-
Raw material:
-
Composite Autoclave
-
Material:
-
Q345R Composite Autoclave
-
Heating Methodelectric:
-
steam Composite Autoclave
-
Capacity:
-
12.3CBM Composite Autoclave
-
Key word:
-
Composite Autoclave
-
Function:
-
Composite Autoclave Machine
-
After Warranty Service:
-
Video technical support
-
Certification:
-
ASME CE ISO
Quick Details
-
Volume (m³):
-
0.4
-
Max Working Pressure(MPa):
-
4.0
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Mosen
-
Weight:
-
3500
-
Design Pressure(MPa):
-
1.0
-
Working Temperature(℃):
-
1 - 400 ℃
-
Name:
-
Industrial Composite Autoclave Machine
-
Application:
-
Composite Industrial
-
Raw material:
-
Composite Autoclave
-
Material:
-
Q345R Composite Autoclave
-
Heating Methodelectric:
-
steam Composite Autoclave
-
Capacity:
-
12.3CBM Composite Autoclave
-
Key word:
-
Composite Autoclave
-
Function:
-
Composite Autoclave Machine
-
After Warranty Service:
-
Video technical support
-
Certification:
-
ASME CE ISO
Products Description

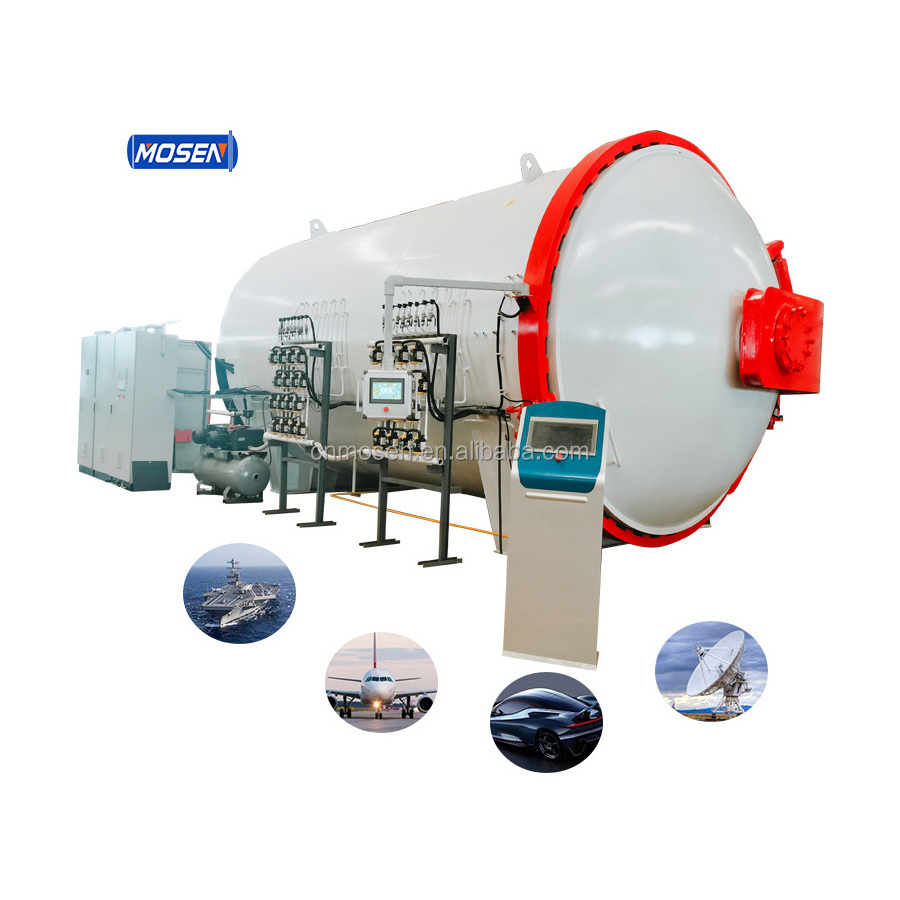

Composite Autoclave for Sale Composite Carbon Fiber Auto Parts Autoclave High Pressure Carbon Fiber Composite Autoclave
EQUIPMENT INTRODUCTION
The hot press tank is mainly used for metal/non-metal bonding structural parts and resin based high strength glass fiber, carbon fiber, boron fiber, aramid fiber and epoxy resin composite materials hot press curing molding key equipment. The equipment can
realize heating and pressure curing molding under the condition of vacuuming composite products. One of the main advantages is suitable for the production of a variety of materials, as long as the curing cycle, pressure and temperature in the hot pot within the limit of the composite can be produced. Another advantage of the hot- press tank is that it on the composite parts of the pressure flexibility. Usually the workpiece is placed on one side of the mold,and then loaded into a vacuum bag. Pressure is applied to the workpiece to make i t close to the mold, and the pressure on the workpiece is further strengthened by vacuum
pumping in the bag.Therefore,the hot -press tank molding technology can produce different shapes of composite products. As a result of these advantages,hot-press sing tank is widely used in aerospace advanced composite production.
realize heating and pressure curing molding under the condition of vacuuming composite products. One of the main advantages is suitable for the production of a variety of materials, as long as the curing cycle, pressure and temperature in the hot pot within the limit of the composite can be produced. Another advantage of the hot- press tank is that it on the composite parts of the pressure flexibility. Usually the workpiece is placed on one side of the mold,and then loaded into a vacuum bag. Pressure is applied to the workpiece to make i t close to the mold, and the pressure on the workpiece is further strengthened by vacuum
pumping in the bag.Therefore,the hot -press tank molding technology can produce different shapes of composite products. As a result of these advantages,hot-press sing tank is widely used in aerospace advanced composite production.
Specification
|
TYPE
|
1600*2500
|
2000*3500
|
2500*5500
|
3000*6500
|
3500*7500
|
4000*8500
|
|
Max pressure
|
3.8MPA
|
1.0MPA
|
1.0MPA
|
1.5MPA
|
1.2MPA
|
1.2MPA
|
|
Design pressure
|
4MPA
|
1.2MPA
|
1.2MPA
|
1.6MPA
|
1.3MPA
|
1.3MPA
|
|
Max temperature
|
400℃
|
250℃
|
250℃
|
250℃
|
250℃
|
250℃
|
|
Design temperature
|
420℃
|
270℃
|
270℃
|
270℃
|
270℃
|
270℃
|
|
Insulation
|
Internal 200mm
|
Internal 150mm
|
Internal 150mm
|
Internal 150mm
|
Internal 150mm
|
Internal 150mm
|
|
Total power
|
60kw
|
90kw
|
210kw
|
330kw
|
510kw
|
780kw
|
EQUIPMENT FEATURES
1. PLC control
2. Electrical Curing recommended (Far-infrared heating internative)
3. Water cooling system
4. Air cycle system
5. Meet CE International Standard
2. Electrical Curing recommended (Far-infrared heating internative)
3. Water cooling system
4. Air cycle system
5. Meet CE International Standard
Autoclave Characters
1. Electric curing ensure effective heating all around the interior chamber.
2. Motor fans make air evenly circulation for temperature distribution better.
3. Double channel PLC control system, alternative control channel guarantee the presetted
process progressive while the autoclave accident happens.
4. Vacuum port connect with the vacuum bags pressure, control and detecting independent.
5. Interior air circulation system
6. Chamber and motor cooling system
7. Auto door leaf with oil cylinder control
8. Each vacuum port independent control and detecting
9. Temperature ,pressure and time pre-setted and adjustable
10. Interior and outside Insulation
Autoclave specification need to confirm with you, diameter ,length ,pressure ,temperature ect .
2. Motor fans make air evenly circulation for temperature distribution better.
3. Double channel PLC control system, alternative control channel guarantee the presetted
process progressive while the autoclave accident happens.
4. Vacuum port connect with the vacuum bags pressure, control and detecting independent.
5. Interior air circulation system
6. Chamber and motor cooling system
7. Auto door leaf with oil cylinder control
8. Each vacuum port independent control and detecting
9. Temperature ,pressure and time pre-setted and adjustable
10. Interior and outside Insulation
Autoclave specification need to confirm with you, diameter ,length ,pressure ,temperature ect .
Product application
Realted product
Why Choose Us
Customer Photos
After-sales Service
Packaging
FAQ
Q: Are you the autoclave manufacturer or trading company?
A: We are a professional manufacturer.
Q: What is your business scope?
A: There are three categories, such as rubber vulcanization autoclave,food sterilization machine, jacket cooker.
Q: How about the autoclave installation? And what if the autoclave machine goes down?
A: We wil l do that. There are two options.
a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa,
accommodation and labor cost shall be on your side.
b. On-line service will be provided. If still is under guarantee period, the necessary accessories and parts will be provided
free, but the transportation cost of it shall be on your side.
Q: Do you take L/C?
A: Yes, we accept L/C, T/T and irrevocable L/C payable.
If you want to know more about our industrial rubber autoclave , welcome to our company for detailed information. Here we have professional engineers and technicians to instruct you.
A: We are a professional manufacturer.
Q: What is your business scope?
A: There are three categories, such as rubber vulcanization autoclave,food sterilization machine, jacket cooker.
Q: How about the autoclave installation? And what if the autoclave machine goes down?
A: We wil l do that. There are two options.
a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa,
accommodation and labor cost shall be on your side.
b. On-line service will be provided. If still is under guarantee period, the necessary accessories and parts will be provided
free, but the transportation cost of it shall be on your side.
Q: Do you take L/C?
A: Yes, we accept L/C, T/T and irrevocable L/C payable.
If you want to know more about our industrial rubber autoclave , welcome to our company for detailed information. Here we have professional engineers and technicians to instruct you.
