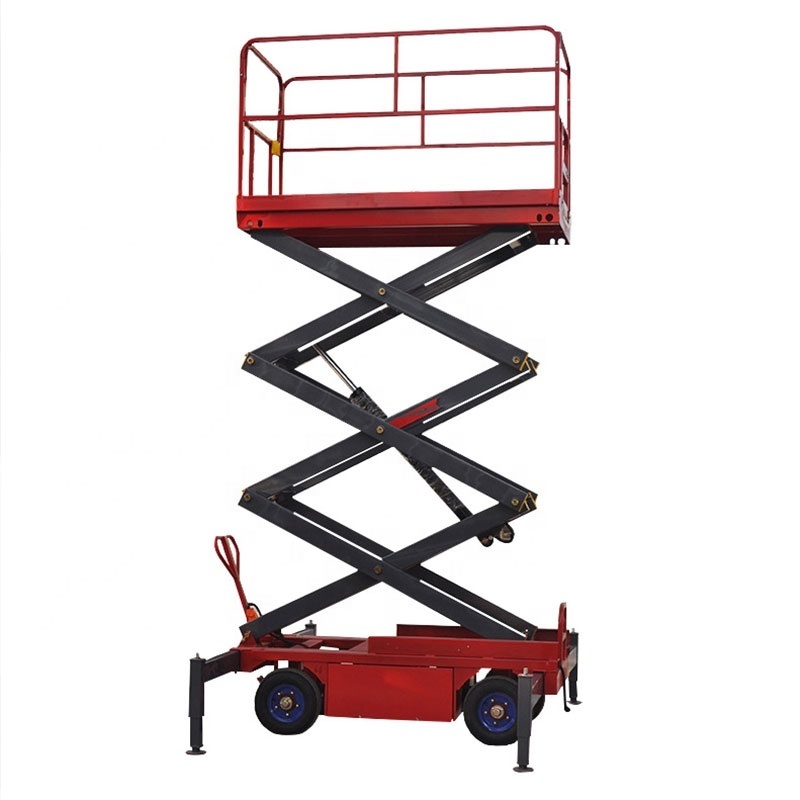

The high-altitude working platform with human traction walking is installed on the special self-made underframe, and is used for high-altitude working platform with human traction walking. Through the strength of human traction to achieve the speed of walking. The device solves the problem of difficult movement when changing the location in short distance. Conventional scissors pull leg-type lifting platform, higher security, better stability, only one can achieve the equipment forward, back, turn and other functions, better user-friendly use.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
48V,4.0KW
-
Min. Lifting Height:
-
8
-
Table Size:
-
2010*830
-
Overall Dimensions:
-
2016*1000*1000
-
Weight:
-
850 kg
-
Type of equipment:
-
SJY0.5-4
-
Mesa size(mm):
-
2010*830
-
carrying capacity (kg):
-
500
-
go up(M):
-
4
-
outline dimension(mm):
-
2016*1000*1000
-
weight(kg):
-
850
-
The next track:
-
3mm steel plate bending configuration
-
bearing:
-
Each model is equipped
-
On the track:
-
3mm steel plate bending configuration
-
Bottom frame protection plate:
-
1mm flat plate bending
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
gradin
-
Power:
-
48V,4.0KW
-
Min. Lifting Height:
-
8
-
Table Size:
-
2010*830
-
Overall Dimensions:
-
2016*1000*1000
-
Weight:
-
850 kg
-
Type of equipment:
-
SJY0.5-4
-
Mesa size(mm):
-
2010*830
-
carrying capacity (kg):
-
500
-
go up(M):
-
4
-
outline dimension(mm):
-
2016*1000*1000
-
weight(kg):
-
850
-
The next track:
-
3mm steel plate bending configuration
-
bearing:
-
Each model is equipped
-
On the track:
-
3mm steel plate bending configuration
-
Bottom frame protection plate:
-
1mm flat plate bending
mobile scissors lift series is a widely used high-altitude operation special equipment. This series of elevators has the characteristics of flexible movement, stable lifting, large load, easy operation and so on. It is suitable for continuous work at high altitude at stations, docks, parks, stadium, residential properties, factories and workshops, etc.
|
Models |
SJY0.5-4
|
|
Mesa dimensions
|
2010*830mm
|
|
Load
|
500kg
|
|
Up
|
4m
|
|
External dimensions
|
2016*1000*1000mm
|
|
Weight
|
850kg
|
A variety of color specifications are optional
Detachable guardrail
Add high kick board to prevent tools from falling from height. The use of detachable guardrail, more convenient to use, safe and
secure operators
secure operators
Pneumatic tires
Super wear-resistant tires, thicken and enlarge tires, not afraid of harsh environment.
Alloy support leg
Folding support leg, easy to set up equipment before lifting the equipment to support the legs, with a level, strong support,
lifting and stable
lifting and stable
Use of high-quality pumping stations
Well-known brand pump station, high power, low noise, stable performance.
Show the details
Use methods
1, the platform should carefully check the hydraulic system without leakage or exposed wires before use.
2. The use voltage model should be determined before use.(380v or 220v or battery)
3, when the platform is in use, the four legs should be firmly supported on a solid ground.
4, the center of gravity of the load should be in the center of the working table as far as possible, and overloading operation is strictly prohibited.
5. When using the platform, it shall be kept horizontally (not ramp) and shall not be moved.
6, when using, the guardrail at both ends of the moving door should be closed, locked after the operation.
Applies to a variety of scenarios
Why Choose Us
Founded in 2000,Jinan Quentin Machinery Co., Ltd. is located in the capital city of Shandong province - Jinan city, well known for its developed machinery industry and convenient transportation(300 km from Qingdao port). We are a professional manufacturer specialized in R&D, manufacturing, sales and service of all kinds of aerial work platforms and hydraulic lift platforms. As one of the leading companies in vertical material transportation and aerial work platforms, we have been committing ourselves in providing our customers with safer, more convenient and more efficient products. We have a strong team with 39 R&D professionals, 132 veteran workers and 42 commercial experts. In 2016, our sales revenue reached 30,000,000 USD.
With an investment of 20,000,000 USD, our current production base covers 60,0000 square meters, equipped with assembling workshop, structure workshop, paint workshop,final product test field, hydraulic lab, electric lab, R&D center,administration center and staff apartments.
With more than 15 years of efforts, Jinan Quentin Machinery has become a leading company in the industry participating in establishing various national standards and industrial standards.We have been cooperating with several domestic machinery institutes with more than 60 patents.
Certifications
FAQ
1.Are you a factory or trading company?
Yes, we're factory with over 10 years exporting experience.
2. Do you offer OEM&ODM service?
Yes, like lifting capacity, lifting height, size of platform, painting color, logo, manual etc.
3. How can I get the after-sales service?
We offer Videos, Pictures, User Manual, Technical guidance and 24 hours online service
4.What's the quality warranty?
24 months. Spare parts provided freely within quality warranty.
