Quick Details
-
Model Number:
-
FN-H2-100
-
Certification:
-
CE
-
Output Voltage:
-
12v-380v
-
rotor diameter:
-
0.78~4.8m
-
Application:
-
Wind Power System
-

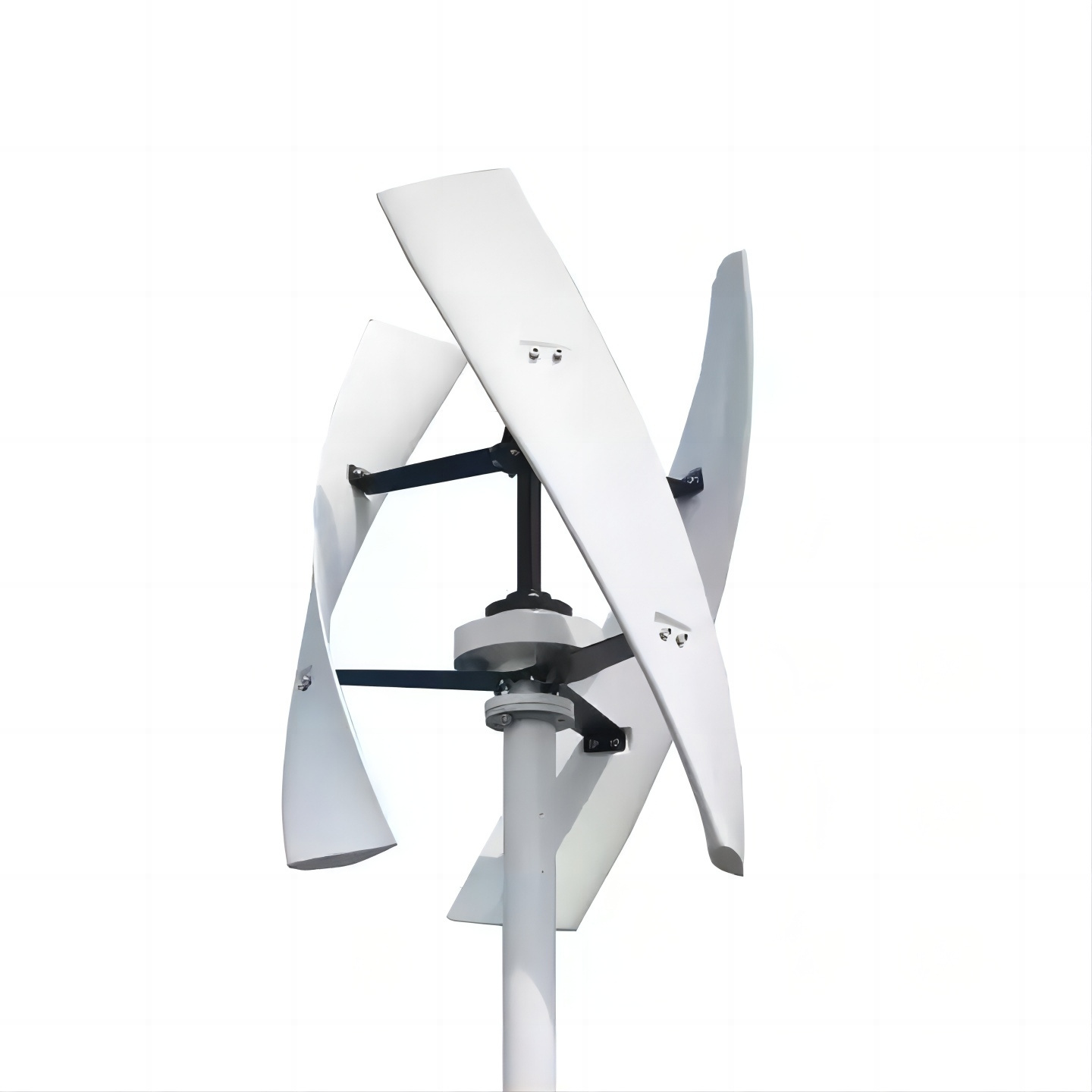

Product name:
-
Vertical Wind Power
-
Generator type:
-
3 Phase AC Permanent-magnet
-
Rated Voltage:
-
12V - 480V
-
Rated wind speed:
-
10m/s
-
Blade Material:
-
Aluminum Alloy
-
Type:
-
Permanent Magent Generator
-
Color:
-
White
-
Start-up wind speed:
-
1.5m/s
-
Keywords:
-
Wind Electricity Generator
Quick Details
-
Rated Power:
-
100w~10kw
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FNEPower
-
Model Number:
-
FN-H2-100
-
Certification:
-
CE
-
Output Voltage:
-
12v-380v
-
rotor diameter:
-
0.78~4.8m
-
Application:
-
Wind Power System
-
Product name:
-
Vertical Wind Power
-
Generator type:
-
3 Phase AC Permanent-magnet
-
Rated Voltage:
-
12V - 480V
-
Rated wind speed:
-
10m/s
-
Blade Material:
-
Aluminum Alloy
-
Type:
-
Permanent Magent Generator
-
Color:
-
White
-
Start-up wind speed:
-
1.5m/s
-
Keywords:
-
Wind Electricity Generator
|
Rated power
|
100W
|
200W
|
300W
|
500W
|
600W
|
800W
|
1KW
|
10KW
|
|||||||
|
Max power
|
150w
|
250W
|
350W
|
550W
|
700W
|
900W
|
1.5KW
|
12KW
|
|||||||
|
Nominal voltage
|
12v/24V
|
12v/24V
|
12v/24V
|
24v/48v
|
24v/48v
|
24v/48v
|
96V/120V
|
220V/380V
|
|||||||
|
Start-up wind speed
|
2.5m/s
|
2.5m/s
|
2.5m/s
|
2.5m/s
|
2.5m/s
|
2.5m/s
|
2.5m/s
|
2.5m/s
|
|||||||
|
Rated wind speed
|
10m/s
|
10m/s
|
10m/s
|
10m/s
|
10m/s
|
10m/s
|
12m/s
|
12m/s
|
|||||||
|
Survival wind speed
|
40m/s
|
40m/s
|
40m/s
|
40m/s
|
40m/s
|
40m/s
|
40m/s
|
45m/s
|
|||||||
|
Top net weight
|
28KG
|
35KG
|
48KG
|
60KGG
|
80KG
|
100KG
|
85KG
|
950KG
|
|||||||
|
Wind wheel diameter
|
0.78m
|
0.78m
|
0.78m
|
0.95 m
|
1.16 m
|
1.16 m
|
1.5m
|
4 m
|
|||||||
|
Blade Height
|
0.9m
|
1.2 m
|
1.2 m
|
1.6 m
|
1.7m
|
1.8 m
|
2m
|
5.6m
|
|||||||
|
Blades material
|
aluminum alloy
|
|
|
|
|
|
|
|
|||||||
|
Fuselage material
|
8A3 carbon steel
|
|
|
|
|
|
|
|
|||||||
Advantages and characteristics
1
patent generator with low starting up
2
blades are made of high quality aluminum alloy plate,which surface using spray or torque,high wind energy utilization.
oxidation treatment,Better anti-corrosion, more beautiful and durable.
3
blades are made of high quality aluminum
4
4.
being installed by human design and easy for installation,maintenance and repair.
install
1
Check and prepare all installation accessories of wind turbine generator. 3 blades in total
2
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable forproducing PET plastic containers and bottles in all shapes.
3
Take out the fan blade bracket,fix it in the mounting hole at the end of the upper bracket of the fan blade with bolts in turn,and pre tighten it
4
Take out the fan blade,fix it in the mounting hole at the end of the fan blade support with bolts from the outside of the fanblade, and pre tighten it
5
Tighten all the bolts of the fan blade and bracket, and gently move the fan blade to ensure that the fan has no abnormal sound andis blocked. Finally, tighten the adjusting nut under the fan cover plate to make the upper cover fixing plate tightly fixed
6
Align the flange hole of the integral fan with the flange hole on the tower rod, put on the flat washer and elastic washer, and
tighten the nut
tighten the nut
