Quick Details
-
Full throttle operating rang:
-
4500-5500 r/m
-
Maximum Output:
-
18kw/25hp
-
Idling Speed:
-
1100±50r/m
-
Displacement:
-
496cc
-
Bore*Stroke:
-
72*61mm
-
Ignition System:
-
CDI
-
Spark Plug:
-
B8HS-10
Quick Details
-

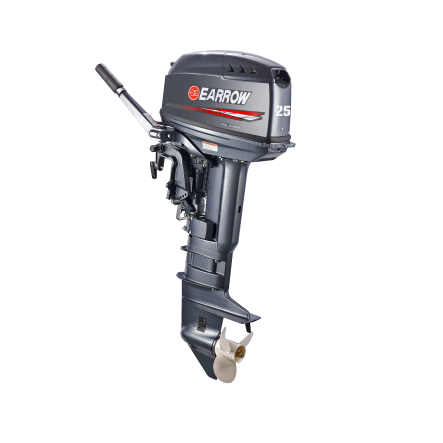

Product:
-
25hp outboard engine
-
Type:
-
2-stroke, 25hp
-
N.W(KG):
-
S:53kg;L:55kg;
-
Full throttle operating rang:
-
4500-5500 r/m
-
Maximum Output:
-
18kw/25hp
-
Idling Speed:
-
1100±50r/m
-
Displacement:
-
496cc
-
Bore*Stroke:
-
72*61mm
-
Ignition System:
-
CDI
-
Spark Plug:
-
B8HS-10
Product: outboard engine
Type:2-stroke, 25hp
Specification
| Outboard Motor Model | 25H |
| Net Weight | S:53Kg ; L: 55kg |
| Full Throttle Operating Range | 4500-5500 r/m |
| Maximum Output | 18kw/25hp |
| Idling Speed | 1100±50r/m |
| Type | Two Stroke |
| Displacement | 496cc |
| Bore*Stroke | 72*61mm |
| Ignition System | CDI |
| Spark Plug | BR7HS-10 |
| Spark Plug Gap | 0.9-1.0mm |
| Control System | Tiller Handle |
| Starting System | Manual |
| Starting Carburation System | Choke Valve |
| Gear Position | Forward-Neutral-Reverse |
| Gear Ratio | 2.08 (27:13) |
| Trim and Tilt System | Manual Tilt |
| Recommended Fuel | Unleaded Gasoline |
| Gear Oil | 0.320L |
| Fuel Tank Capacity | 24L |
Certification
CE/SGS/ISO 9001
Why Earrow outboards is your correct choice
1) 7 years spare parts production experience.Most die casting(aluminum) parts and plastic parts are made by our own production line, assure the parts quality control
2) Main engineers used to work in previous BRP Chinese subsidiary plant, we learn from BRP technology, compared with other Chinese outboard motor,our outboards are more quiet;
3) Same surface treatment standard process with BRP technology.
We have a special surface pretreatment production line, passivated surface made the parts & engine more durable, anti corrosion
4) Fuel-efficient lower fuel consumption---The Electric parts / Intake valve/ Carburetor(now use TK carburetor) all use high quality suppliers(Taiwan and Japan parts), oil consumption of 30hp is 11.5L/h, 15hp 7.3L/h now
| 5) The most important parts of the engine like cylinder head gasket, crank, bearing, drive shaft, |
| pinon, gear1,gear2 is all Taiwan brand parts. |
| Our carburator is TK carburator, Japanese brand. |
Product Series
We have both 4 and 2 stroke series, we also have 4 stroke propane engines which are more environment friendly. Almost plastic and die casting parts are made by ourselves, almost parts are made by Aluminum and treated by special surface treatment, so that we could control the quality serious, it is anti-corrosion and durable in salt water use.
OEM service
1% free spare parts
Warranty
1 year for commercial usage;
Package
Standard export package, carton box;
Logistic
The forwarder could be choose by you, we could provide some information of forwarders if you need.
Port of Load
Ningbo, port.
How long is EARROW company in outboards industry ?
Our Earrow outboards factory started from 2012, for past two years, we mainly focus on product
R&D and product endurable testing;
We also have separate production line for producing most die casting & plastic parts
for outboards,
W e have customers in here ?
The Middle East countries, Russia, Thailand, Malaysia, Cambodia, India, Bangladesh, Sri Lanka, Philippines, South Korea , Indonesia, Uganda, Tanzania, Ghana, Sudan, Nigeria, Liberia, South Africa, Australian , Maldives , Colombia, Congo, Ecuador, France, Germany, Greece, Guinea, Iceland, Iran, Iraq, Ireland, Israel, Italy, Jamaica, Libya, Madagascar, Mauritius, Mexico, Pakistan, Panama, Paraguay, Peru, Poland, Portugal, Saudi Arabia, Somalia, Spain, Togo, Turkey, U.K, U.S.A, The Yemen Rep.(N).
What' s your production ability per month/per year ?
2000PCS each month, and 25000pcs/ye
What kind of Certificate you have :
ISO9001/CE certified/SGS;
How long you will test each engine before packing and shipment?
Half hour for testing before packaging.
The spare parts was made by yourself or purchased?
Some key parts buy from Taiwan and Japan,
all other plastic & aluminum parts (such as bottom cover, lower unit case, propeller, crankcase etc. are made by our own plant , assure our spare parts quality control and delivery time.
How about Warranty?
1 year warranty for commercial use;
Over 50 units , we supply 1% free wearing spare parts to distributor, to support their after sale service.
P roduction T ime :
20 workdays after order confirm
How about the payment term?
Western union, T/T, MoneyGram
Sample order, 100% T/T advanced payment before deliver.
Container order: 30% deposit + 70% balance pay before shipping when the outboards had prepared.
What's MOQ ? and how to arrange shipping ?
1 pc outboard motor testing order, Delivery by TNT or DHL ecnomy delivery. 5 -8 days arriving, Door to Door delivery .
3 pcs outboard motors, Shipping by sea LCL.
How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit ;
We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
