Quick Details
-
Brand Name:
-
Technic Power
-
Model Number:
-
MY
-
Frequency:
-
50Hz/60Hz
-
Product Name:
-
Single Phase Electric Motors
-
Rated Voltage:
-
220-230v
-
Protection class:
-
IP54/IP55
-
Cooling method:
-
IC411
-
Housing:
-
Aluminum Case
-
Application:
-
General Machinery
-
Winding:
-
100% Cooper Wire
-
Motor type:
-
Asynchronous Single Phase
Quick Details
-
AC Voltage:
-
220 V/230 V / 240 V/400 V
-
Warranty:
-
18 months
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Technic Power
-
Model Number:
-
MY
-
Frequency:
-
50Hz/60Hz
-
Product Name:
-
Single Phase Electric Motors
-
Rated Voltage:
-
220-230v
-
Protection class:
-
IP54/IP55
-
Cooling method:
-
IC411
-
Housing:
-
Aluminum Case
-
Application:
-
General Machinery
-
Winding:
-
100% Cooper Wire
-
Motor type:
-
Asynchronous Single Phase

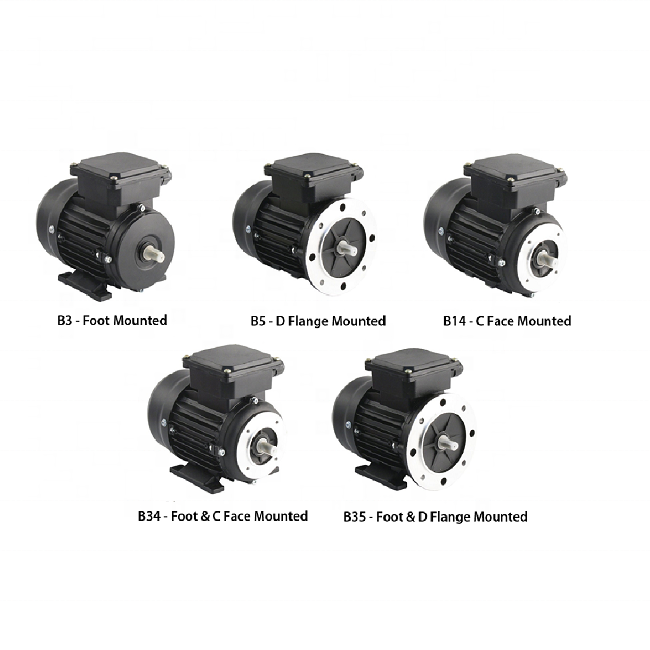

B3 B5 B14 B35 B34 Aluminum Flange Transmission Driving Motor Single Phase Induction Electric AC Motor
1. MOTOR FEATURES:
Utilize IP55 enclosures,IP54 on request
Multiple feet locations
Aluminum frame, end shields and base
High strength cable gland
Shaft key and protector supplied
Superior paint finish
Motors made to heavy duty service factors
Can be made with stainless steel shaft
Motors made for continuous S1 duty
Utilize Vacuum impregnated Class B insulation
Class F insulation on request
High performance and efficiency
2. CUSTOMER BENEFITS:
Water, dust and vermin resistant
Quiet operation
Electricity saving
Easy installation (bolt on feet or brackets as required)
Corrosion resistant
Dependable
Superior life, Good performance, 1.8 to 2.5 times more than the rated torque.
Reliable in country, city or factory environments
3. TECHNICAL DATA:(50HZ)
|
Model |
HP |
KW |
Voltage |
Speed rpm |
Weight kg |
|
MY561-2 |
0.12 |
0.09 |
230 |
2800 |
4.2 |
|
MY562-2 |
0.16 |
0.12 |
230 |
2800 |
4.5 |
|
MY631-2 |
0.25 |
0.18 |
230 |
2800 |
5 |
|
MY632-2 |
0.34 |
0.25 |
230 |
2800 |
5.3 |
|
MY711-2 |
0.5 |
0.37 |
230 |
2800 |
6.2 |
|
MY712-2 |
0.75 |
0.55 |
230 |
2800 |
6.5 |
|
MY801-2 |
1 |
0.75 |
230 |
2800 |
8.3 |
|
MY802-2 |
1.5 |
1.1 |
230 |
2800 |
9 |
|
MY90S-2 |
2 |
1.5 |
230 |
2800 |
13 |
|
MY90L-2 |
3 |
2.2 |
230 |
2800 |
15 |
|
MY100L-2 |
4 |
3 |
230 |
2800 |
27 |
|
MY561-4 |
0.08 |
0.06 |
230 |
1400 |
4.3 |
|
MY562-4 |
0.12 |
0.09 |
230 |
1400 |
4.6 |
|
MY631-4 |
0.16 |
0.12 |
230 |
1400 |
5.1 |
|
MY632-4 |
0.25 |
0.18 |
230 |
1400 |
5.5 |
|
MY711-4 |
0.34 |
0.25 |
230 |
1400 |
6.3 |
|
MY712-4 |
0.5 |
0.37 |
230 |
1400 |
7.1 |
|
MY801-4 |
0.75 |
0.55 |
230 |
1400 |
9.5 |
|
MY802-4 |
1 |
0.75 |
230 |
1400 |
10 |
|
MY90S-4 |
1.5 |
1.1 |
230 |
1400 |
13 |
|
MY90L-4 |
2 |
1.5 |
230 |
1400 |
16 |
|
MY100L1-4 |
3 |
2.2 |
230 |
1400 |
23 |
|
MY100L2-4 |
4 |
3 |
230 |
1400 |
27 |
4.Details in pictures:
