Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Brand Name:
-
ZHENGDING
-
Core Components:
-
Steel
-
Products name:
-

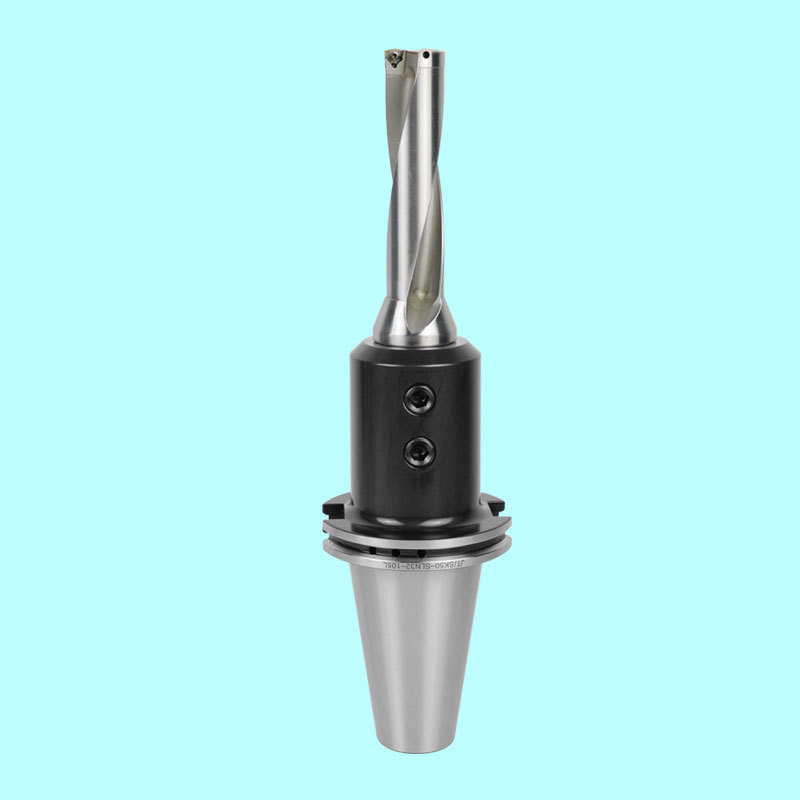

SK SLN side fixed tool holder
-
Model Number:
-
SK40/50--SLN16/20/25/32/40
-
Material:
-
42CrMo
-
Hardness:
-
HRC48-52
-
Accuracy:
-
0.008mm
-
Standard:
-
DIN69871
-
Related products:
-
U Drill/pull stud
-
Sample:
-
Avilable
-
Non-standard customization:
-
Avilable
-
After Warranty Service:
-
Video technical support
Quick Details
-
Place of Origin:
-
Shandong, China
-
Applicable Industries:
-
Other, Cnc machining center
-
Weight (KG):
-
2
-
Marketing Type:
-
Hot Product 2023
-
Brand Name:
-
ZHENGDING
-
Core Components:
-
Steel
-
Products name:
-
SK SLN side fixed tool holder
-
Model Number:
-
SK40/50--SLN16/20/25/32/40
-
Material:
-
42CrMo
-
Hardness:
-
HRC48-52
-
Accuracy:
-
0.008mm
-
Standard:
-
DIN69871
-
Related products:
-
U Drill/pull stud
-
Sample:
-
Avilable
-
Non-standard customization:
-
Avilable
-
After Warranty Service:
-
Video technical support
|
Product name
|
SK-SLN tool holder
|
|
Size
|
SK40/50--SLN20/SLN25/ SLN32/SLN40
|
|
Material
|
42CrMo
|
|
Feature
|
High presion
|
Double screw compression method, ensure the processing is more stable
②The whole through hole is beneficial to the central water outlet
The middle through hole, is conducive to water, increase earthquake resistance
|
Size
|
L
|
L1
|
L3
|
L4
|
L5
|
d1
|
d2
|
d3
|
T
|
|
SK40-SLN6-50L
|
118.4
|
50
|
18
|
-
|
50
|
6
|
25
|
25
|
M5*0.8P
|
|
SK40-SLN8-50L
|
118.4
|
50
|
18
|
-
|
50
|
8
|
28
|
28
|
M6*1.0P
|
|
SK40-SLN10-50L
|
118.4
|
50
|
20
|
-
|
55
|
10
|
35
|
35
|
M8*1.25P
|
|
SK40-SLN12-50L
|
118.4
|
50
|
22.5
|
-
|
60
|
12
|
42
|
42
|
M10*1.5P
|
|
SK40-SLN16-63L
|
131.4
|
63
|
24
|
-
|
100
|
16
|
45
|
45
|
M12*1.75P
|
|
SK40-SLN16-100L
|
168.4
|
100
|
22
|
18
|
100
|
16
|
45
|
45
|
M12*1.75P
|
|
SK40-SLN16-150L
|
218.4
|
150
|
22
|
18
|
100
|
16
|
35
|
42
|
M10*1.5P
|
|
SK40-SLN20-63L
|
131.4
|
63
|
25
|
-
|
100
|
20
|
50
|
50
|
M12*1.75P
|
|
SK40-SLN20-100L
|
168.4
|
100
|
25
|
20
|
100
|
20
|
50
|
50
|
M12*1.75P
|
|
SK40-SLN20-150L
|
218.4
|
150
|
25
|
20
|
100
|
20
|
45
|
50
|
M12*1.75P
|
|
SK40-SLN25-100L
|
168.4
|
100
|
24
|
25
|
110
|
25
|
65
|
65
|
M12*1.75P
|
|
SK40-SLN25-150L
|
218.4
|
150
|
24
|
25
|
110
|
25
|
45
|
50
|
M12*1.75P
|
|
SK40-SLN32-100L
|
168.4
|
100
|
24
|
28
|
120
|
32
|
70
|
70
|
M16*2.0P
|
|
SK40-SLN32-150L
|
218.4
|
150
|
24
|
28
|
120
|
32
|
52
|
57
|
M16*2.0P
|
|
SK50-SLN6-63L
|
164.75
|
63
|
18
|
-
|
50
|
6
|
25
|
25
|
M5*0.8P
|
|
SK50-SLN6-100L
|
201.75
|
100
|
18
|
18
|
50
|
6
|
25
|
25
|
M5*0.8P
|
|
SK50-SLN8-63L
|
164.75
|
63
|
18
|
-
|
50
|
8
|
28
|
28
|
M6*1.0P
|
|
SK50-SLN8-100L
|
201.75
|
100
|
18
|
18
|
50
|
8
|
28
|
28
|
M6*1.0P
|
|
SK50-SLN10-63L
|
164.75
|
63
|
20
|
18
|
55
|
10
|
35
|
35
|
M8*1.25P
|
|
SK50-SLN10-100L
|
201.75
|
100
|
20
|
18
|
55
|
10
|
35
|
35
|
M8*1.25P
|
|
SK50-SLN12-63L
|
164.75
|
63
|
22.5
|
18
|
60
|
12
|
42
|
42
|
M10*1.5P
|
|
SK50-SLN12-100L
|
201.75
|
100
|
22.5
|
18
|
60
|
12
|
42
|
42
|
M10*1.5P
|
|
SK50-SLN16-63L
|
164.75
|
63
|
24
|
-
|
100
|
16
|
45
|
45
|
M12*1.75P
|
|
SK50-SLN16-100L
|
201.75
|
100
|
22
|
18
|
100
|
16
|
45
|
45
|
M12*1.75P
|
|
SK50-SLN16-150L
|
251.75
|
150
|
22
|
18
|
100
|
16
|
35
|
42
|
M10*1.5P
|
|
SK50-SLN20-63L
|
164.75
|
63
|
25
|
-
|
100
|
20
|
50
|
50
|
M12*1.75P
|
|
SK50-SLN20-100L
|
201.75
|
100
|
25
|
20
|
100
|
20
|
50
|
50
|
M12*1.75P
|
|
SK50-SLN20-150L
|
251.75
|
150
|
25
|
20
|
100
|
20
|
45
|
50
|
M12*1.75P
|
|
SK50-SLN25-80L
|
181.75
|
80
|
24
|
-
|
110
|
25
|
65
|
65
|
M12*1.75P
|
|
SK50-SLN25-100L
|
201.75
|
100
|
24
|
25
|
110
|
25
|
65
|
65
|
M12*1.75P
|
|
SK50-SLN25-150L
|
251.75
|
150
|
24
|
25
|
110
|
25
|
45
|
50
|
M12*1.75P
|
|
SK50-SLN32-100L
|
201.75
|
100
|
24
|
28
|
120
|
32
|
70
|
70
|
M16*2.0P
|
|
SK50-SLN32-150L
|
251.75
|
150
|
24
|
28
|
120
|
32
|
52
|
57
|
M16*2.0P
|
|
SK50-SLN32-200L
|
301.75
|
200
|
24
|
28
|
120
|
32
|
52
|
57
|
M16*2.0P
|
|
SK50-SLN40-100L
|
201.75
|
100
|
30
|
32
|
120
|
40
|
80
|
80
|
M20*2.0P
|
|
SK50-SLN40-150L
|
251.75
|
150
|
30
|
32
|
120
|
40
|
65
|
72
|
M16*2.0P
|
|
SK50-SLN40-200L
|
301.75
|
200
|
30
|
32
|
120
|
40
|
65
|
72
|
M16*2.0P
|
|
SK50-SLN42-100L
|
201.75
|
100
|
30
|
32
|
120
|
42
|
80
|
80
|
M20*2.0P
|
|
SK50-SLN42-150L
|
251.75
|
150
|
30
|
32
|
120
|
42
|
67
|
74
|
M16*2.0P
|
|
SK50-SLN42-200L
|
301.75
|
200
|
30
|
32
|
120
|
42
|
67
|
74
|
M16*2.0P
|
|
SK50-SLN50-120L
|
221.75
|
120
|
35
|
35
|
120
|
50
|
90
|
90
|
M20*2.0P
|
|
SK50-SLN50-150L
|
251.75
|
150
|
35
|
35
|
120
|
50
|
90
|
90
|
M20*2.0P
|
|
SK50-SLN50.8-120L
|
221.75
|
120
|
35
|
35
|
120
|
50.8
|
90
|
90
|
M20*2.0P
|
|
SK50-SLN50.8-150L
|
251.75
|
150
|
35
|
35
|
120
|
50.8
|
90
|
90
|
M20*2.0P
|
1:Are you factory or trade company?
We are Industry and trader integration.
2: Why we can choose you?
1): Reliable--.we are the real company, we dedicate in win-win
2): Professionalwe offer the pet products exactly you want
3): Factory--we have factory so have compective price
3: Could you supply samples?
Yes,we can supply samples.
4:Do you support processing customized products?
It can be customized according to drawings, samples and dimension drawings
