Quick Details
-
Filling Accuracy:
-
99%
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
JOYGOAL
-
Dimension(L*W*H):
-
3900*2300*2230 MM
-
Weight:
-
1400 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Model:
-
ZLD-4A
-
Filling nozzles:
-
4
-
Packing speed:
-
2400-4000 bags/hour
-
Filling volume:
-
5-3000 ml
-
Air Pressure:
-
0.5-0.7MPa
-
Air consumption:
-
0.7m3/min
-
Design for:
-
liquid packing machine
Quick Details
-
Machinery Capacity:
-
4000BPH
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Other, Milk, Water, Oil, Juice
-
Filling Accuracy:
-
99%
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
JOYGOAL
-
Dimension(L*W*H):
-
3900*2300*2230 MM
-
Weight:
-
1400 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Model:
-
ZLD-4A
-
Filling nozzles:
-
4
-
Packing speed:
-
2400-4000 bags/hour
-
Filling volume:
-
5-3000 ml
-
Air Pressure:
-
0.5-0.7MPa
-
Air consumption:
-
0.7m3/min
-
Design for:
-
liquid packing machine
| JOYGOAL Shanghai factory price for stand-up pouch water packaging machine / liquid filling machine / liquid packing machine |
HOT SALES!!!
liquid filling capping machine
To Dear friend,
You can find out a large number of suppliers use our pictures, many of them are trading companies. So please contact us directly, we are the final factory, and we can provide you pictures and machine running videos.And also you can visit our factory.
What is the details of Spout pouch packing machine, doypack filling machine ?
1)Automatic spout pouch filling and capping machine is suitable for liquid or semi-liquid,such as packing jelly, soy milk, yoghourt, mineral water, juice, ice cream, edible oil, seasoning, scour, laundry detergent etc;
2)This is a full automatic production line with such processes as automatic pouch-loading, vacuuming, fixed-position filling, nitrogen flushing, clean spout, cap feeding and inserting, capping (applying magnetic adjusting torque for rather stability), discharging;
3)This machine can be connected CIP cleaning syetem, PLC control and touch screen system, air-purifying system, safeguard switch, glass cover. All of these functions can be added or removed according to the clients' requirements.
What is the technical parameters of Spout pouch packing machine, doypack filling machine ?
What is the working process of Spout pouch packing machine, doypack filling machine ?
1.Automatic pouch loading
2.fixed-position filling
3.clean spout
4.arranging caps and putting on caps
5.capping
6.discharging.
What is the advantages of Spout pouch packing machine, doypack filling machine ?
1)We are factory in Shanghai, directly sales with competive price;
2)More than 8 years experience of design, manufacturing and serving ;
3)Professional designers and workers to serve you;
4)This machine with a strict inspection before out of storage;
5) Food grade 304# stainless steel is used in our spout pouch filling capping machine ;
6)This machine use world famous electrical and pneumatic components,such as OMRON and SIEMENS PLC, WEINVIEW and SIEMENS touch screen, Mitsubishi motors,Schneider switches, AIRTAC and FESTO cylinder.

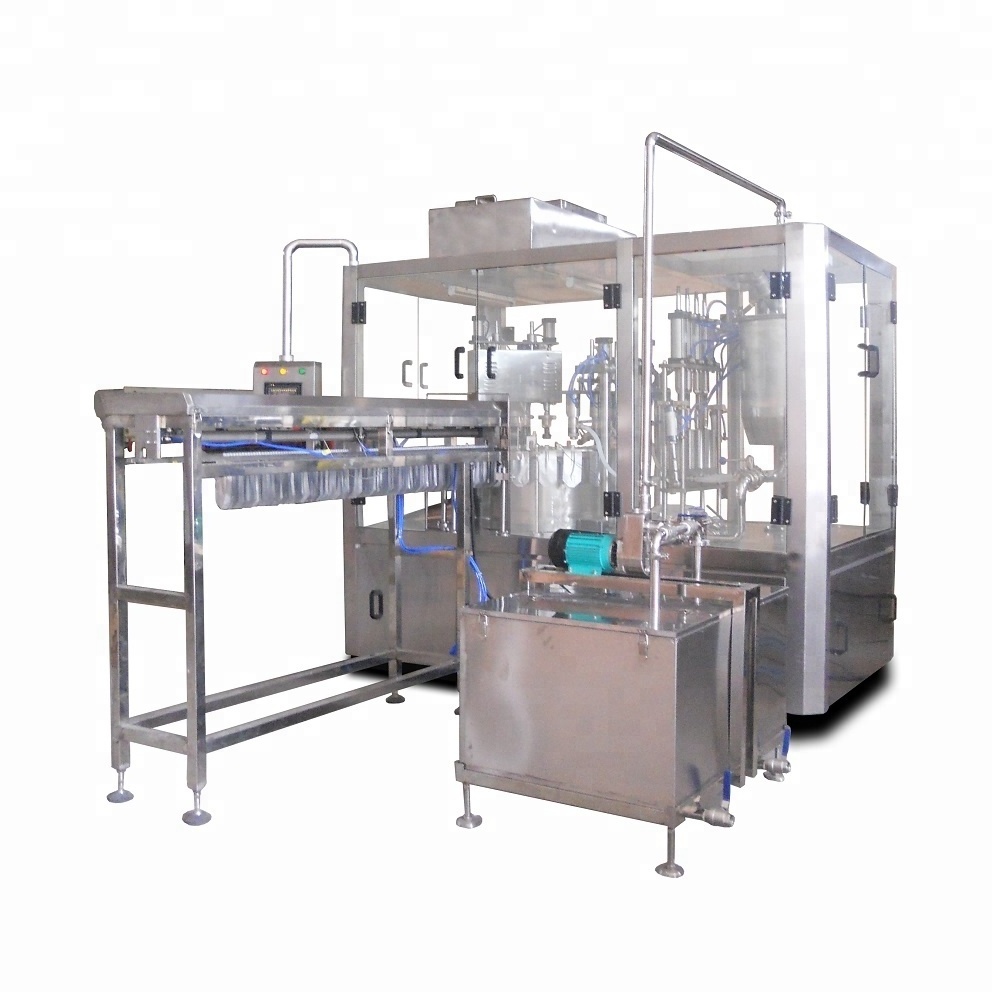

Machine photos
2 4 hours online service
The inquiry will be replied in 2 hours
One year warranty
1%-2%Spare Parts
CKD and SKD are available
Free parts for any breakdown with convincing eviden ce
