Full Automatic Counter Shoe Lasting Machine Seat And Lasting Machine Lasting Machines
Full Automatic Counter Shoe Lasting Machine Seat And Lasting Machine Lasting Machines
Full Automatic Counter Shoe Lasting Machine Seat And Lasting Machine Lasting Machines
Full Automatic Counter Shoe Lasting Machine Seat And Lasting Machine Lasting Machines
Full Automatic Counter Shoe Lasting Machine Seat And Lasting Machine Lasting Machines
Full Automatic Counter Shoe Lasting Machine Seat And Lasting Machine Lasting Machines
Full Automatic Counter Shoe Lasting Machine Seat And Lasting Machine Lasting Machines
Full Automatic Counter Shoe Lasting Machine Seat And Lasting Machine Lasting Machines

Full Automatic Counter Shoe Lasting Machine Seat And Lasting Machine Lasting Machines

FOB Reference Price: Get Latest Price
≥1 Sets
US $5999
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Application:
Shoe Lasting Making
Place of Origin:
Henan, China
Brand Name:
JAWO
Power:
3700
Dimension(L*W*H):
1000*1700*1900
Weight:
300
Features:
Hydraulic Toe-Lasting Machine
Name:
Lasting Machine
Function:
Shoe Making Machine Automatic
Pincer:
9 Claws
PACKING SIZE:
1830*1000*2230mm
Color:
Customized
Safety:
Switch
Electro heat:
1.5kw
Applicaton:
Lasting Machine
Pressure:
50kg/cm2
MOQ:
1SET

Quick Details

Production Capacity:
180 Pairs/8hours
Voltage:
110-380V
Marketing Type:
Hot Product 2022
Application:
Shoe Lasting Making
Place of Origin:
Henan, China
Brand Name:
JAWO
Power:
3700
Dimension(L*W*H):
1000*1700*1900
Weight:
300
Features:
Hydraulic Toe-Lasting Machine
Name:
Lasting Machine
Function:
Shoe Making Machine Automatic
Pincer:
9 Claws
PACKING SIZE:
1830*1000*2230mm
Color:
Customized
Safety:
Switch
Electro heat:
1.5kw
Applicaton:
Lasting Machine
Pressure:
50kg/cm2
MOQ:
1SET
Product Overview

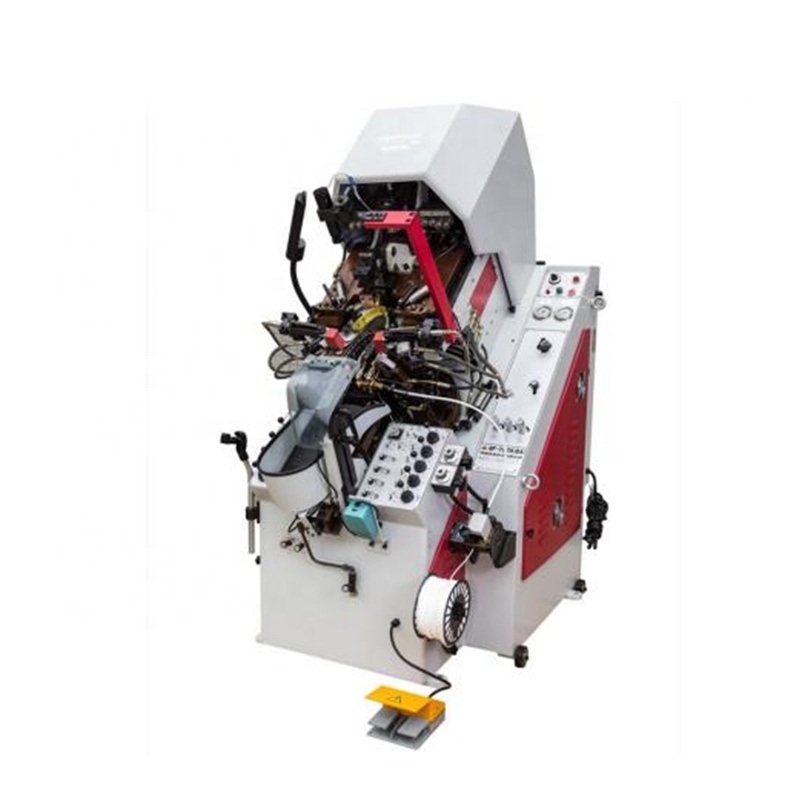

Full Automatic Counter Shoe Lasting Machine Seat And Lasting Machine Lasting Machines

Shoe Lasting Machine: 1.The crosshead projection light will ensure accurate last positioning. 2.The pressure head mechanism adopts adjustable two-segment pressure to ensure steady pressure and achieve the best pressing result. 3.The all-round band and wiper with special tracking system make sure that each part of the upper is tightly against the shoe last after lasting without any point angle but with smooth appearance.
Features:
4.The 9 independent pincers can be adjusted independently.
5.The pincer plate can be also adjusted synchronously according to the shoe size
6.The pincers of number 2 and 5 have independent adjusting device to adapt to different types of last rapidly and
accurately to ensure the minimum interval between each pincers and make sure it is free of any angles.
7.The pressure, position,and speed of each device may be adjusted from outside directly and conveniently.
8.The uniquely designed internal and external
supporting device can be quickly adjusted to the relative position between it and the middle pincer in accordance with the shoe size.
Product Paramenters
Shoe Lasting Machine
Model
JW-QB737MA
Pincers
9
Pump Motor
1.5KW
Max. Power Consumption
3.7KW
Oil pressure
50kg/cm2
Productivity
180 pairs/hour
Oil filling
100 liters
N.W.
1100KGS
Dimension
1000(L), 1700(W), 1900(H) mm
Packing size
1830(L), 1000(W), 2230(H) mm
Details Images
Product packaging
