Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
THCOO
-
Model Number:
-
SKE
-
Torque:
-
10-100N
-
Product Name:
-
Small Volume Independent Research Low Noise 12V Linear Actuator
-
Stroke:
-
Customized
-
IP degree:
-
IP54
-
Operating temperature:
-
0℃-80℃
-
Noise:
-
Under Db40
-
Inner Pipe:
-
Aluminum Alloy
-
Adapting Piece:
-
Steel(optional type;A,B,C,D,E;Accept customized)
-
Min dimension:
-
S+105+L(adapting piece)
-
Installation Dimension:
-
S-10mm can be customized
Quick Details
-
Speed(RPM):
-
2000rpm
-
Continuous Current(A):
-
<2A
-
Efficiency:
-
IE 1
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
THCOO
-
Model Number:
-
SKE
-
Torque:
-
10-100N
-
Product Name:
-
Small Volume Independent Research Low Noise 12V Linear Actuator
-
Stroke:
-
Customized
-
IP degree:
-
IP54
-
Operating temperature:
-
0℃-80℃
-
Noise:
-
Under Db40
-
Inner Pipe:
-
Aluminum Alloy
-
Adapting Piece:
-
Steel(optional type;A,B,C,D,E;Accept customized)
-
Min dimension:
-
S+105+L(adapting piece)
-
Installation Dimension:
-
S-10mm can be customized
|

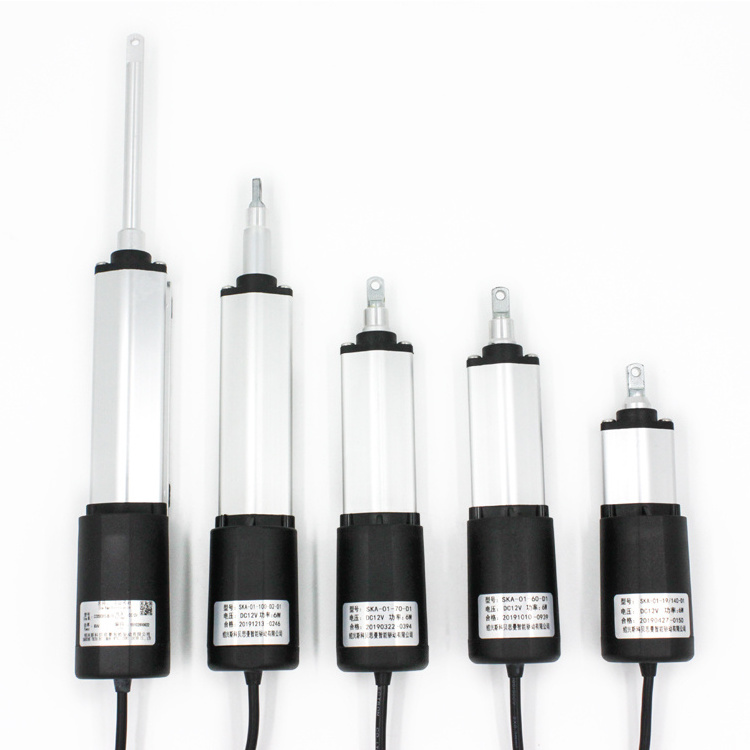

12V 10-500mm Stroke Micro Linear Motor Low Noise 100N Any Stroke Quick Small Linear Actuator
|
|
|
|
|||
|
Model
|
SKE
|
Power
|
6-10W
|
|||
|
Brand
|
Thcoo
|
Color
|
Sliver
|
|||
|
IP Grade
|
IP54
|
Limit Switch
|
Built in
|
|||
|
Duty cycle
|
10%,2 min.on/18 min.off
|
Stroke
|
Customized stroke available
|
|||
|
Noise level
|
<=50dB
|
Minimum installation distance
|
Stroke+105mm
|
|||
|
|
|
Operation temperature
|
0℃~+80℃
|
|||
|
Voltage(VDC)
|
12V/24V
|
|
|
||
|
Dynamic Load Force(N)
|
20N
|
50N
|
100N
|
||
|
No Load Speed(mm/s)
|
20
|
15
|
5
|
||
|
Stroke
|
Min install length
|
Stroke
|
Min install length
|
|
20mm
|
S+105mm
|
450mm
|
S+105mm
|
|
50mm
|
|
500mm
|
|
|
100mm
|
|
550mm
|
|
|
150mm
|
|
600mm
|
|
|
200mm
|
|
650mm
|
|
|
250mm
|
|
700mm
|
|
|
300mm
|
|
750mm
|
|
|
350mm
|
|
800mm
|
|
|
400mm
|
|
850mm
|
|
Show You Interior Material
Cable
Screw Rod
Limit Switch
Gear
Screw
Smart Cover
1. Q : Can I get a sample and how long will it take?
A: Yes , we would like to do one sample for checking .Normal type(5 days),OEM type（15 days）
2. Q : What's the MOQ ?
A: NO MOQ, one Piece is welcome！
3. Q : Can I have my own customized product?
A :Yes, your customized requirements for color, logo, design, package, carton mark, etc. are very welcome.
A: NO MOQ, one Piece is welcome！
3. Q : Can I have my own customized product?
A :Yes, your customized requirements for color, logo, design, package, carton mark, etc. are very welcome.
4. Q : Do you have quality control ?
A : Yes, We have professional quality control personnel.we attach great importance to quality control,all of our products are 100% inspection
5. Q : Do you have CE TUV UL certification
A: Yes, Third party inspection is welcomed. All our adjustable desks are CE Fcc TUV & UL approved.
6. Q : How about the warranty?
A: 5 years
A : Yes, We have professional quality control personnel.we attach great importance to quality control,all of our products are 100% inspection
5. Q : Do you have CE TUV UL certification
A: Yes, Third party inspection is welcomed. All our adjustable desks are CE Fcc TUV & UL approved.
6. Q : How about the warranty?
A: 5 years
