Quick Details
-
Brand Name:
-
PIOGOODS
-
Use:
-
FTTH
-
Warranty Time:
-
1 years
-
Network:
-
fiber optic network
-
Product name:
-

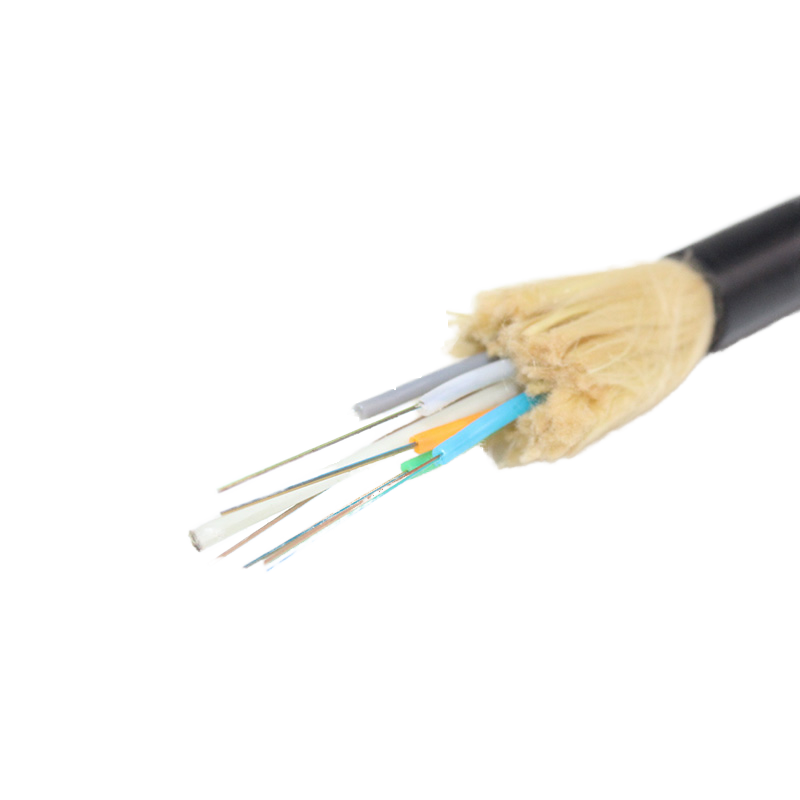

ADSS Optical Cable
-
Application:
-
FTTH FTTB FTTX Network
-
Material:
-
HDPE
-
Fiber Type:
-
G652D/G657A1/G657A2
-
Package:
-
2km/roll
-
Fiber count:
-
4~144 Core
-
Standard:
-
IEC 60794-1
-
Wavelength:
-
1310/1550nm
-
Warranty:
-
1Year/12Months
-
Operating temperature:
-
40~+70
Quick Details
-
Type:
-
Fiber Optic Cable
-
Model Number:
-
PG-ADSS
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PIOGOODS
-
Use:
-
FTTH
-
Warranty Time:
-
1 years
-
Network:
-
fiber optic network
-
Product name:
-
ADSS Optical Cable
-
Application:
-
FTTH FTTB FTTX Network
-
Material:
-
HDPE
-
Fiber Type:
-
G652D/G657A1/G657A2
-
Package:
-
2km/roll
-
Fiber count:
-
4~144 Core
-
Standard:
-
IEC 60794-1
-
Wavelength:
-
1310/1550nm
-
Warranty:
-
1Year/12Months
-
Operating temperature:
-
40~+70
Related Products
Product Details
Product Specification
|
ADSS Single-Sheath Optical Cable
|
|
|
|
|||
|
Fibers
|
12~144cores
|
|
|
|||
|
No. of Tube
|
144cores
|
48cores
|
12cores
|
|||
|
|
12
|
4
|
1
|
|||
|
No. of fiber/Tube
|
12 Fibers
|
|
|
|||
|
Fibers color
|
Blue、Orange、Green、Browm、Gray、White
|
|
|
|||
|
Loose Tube Diameter
|
2.0 mm
|
|
|
|||
|
Tubes color
|
Blue/Orange/Green
|
|
|
|||
|
FRP Strength Member Diameter
|
2.0mm
|
|
|
|||
|
Aramid Yarn Section
|
2.0mm²
|
|
|
|||
|
Out Sheath Diameter Thickness
|
2.0mm
|
|
|
|||
|
Cable Diameter
|
12cores
|
48cores
|
144cores
|
|||
|
|
9.5 mm
|
10~10.5mm
|
14.5~15.0mm
|
|||
|
Cable Weight
|
90kg/km
|
100kg/km
|
200kg/km
|
|||
|
Loose Tube Material
|
PBT
|
|
|
|||
|
Filling compound (Tube)
|
Thixotropic Jelly
|
|
|
|||
|
Water Blocking
|
Water blocking tape
|
|
|
|||
|
Filler rope
|
PVC
|
|
|
|||
|
Out sheath
|
HDPE
|
|
|
|||
|
ADSS Double-Sheath Optical Cable
|
|
|
|
|||
|
Fibers:
|
12Fibers
|
|
|
|||
|
No. of Tube
|
144cores
|
48cores
|
12cores
|
|||
|
|
12
|
4
|
1
|
|||
|
No. of fiber/Tube
|
12Fibers
|
|
|
|||
|
Fibers color
|
Blue/Orange/Green/Browm/Gray/White
|
|
|
|||
|
Loose Tube Diameter
|
2.0 mm
|
|
|
|||
|
Tubes color
|
Blue/Orange
|
|
|
|||
|
FRP Strength Member Diameter
|
2.0mm
|
|
|
|||
|
Inner Sheath Diameter
|
144cores
|
48cores
|
12cores
|
|||
|
|
13.0mm
|
9.0mm
|
7.5 mm
|
|||
|
Inner Sheath Thickness
|
0.8mm
|
|
|
|||
|
Aramid Yarn Section
|
2.0mm²
|
|
|
|||
|
Out Sheath Diameter
|
144cores
|
48cores
|
12cores
|
|||
|
|
17.0mm
|
12.5mm
|
11.5mm
|
|||
|
Out Sheath Diameter Thickness
|
1.75mm
|
|
|
|||
|
Cable Diameter
|
144cores
|
48cores
|
12cores
|
|||
|
|
17.0mm
|
12.5mm
|
11.5 mm
|
|||
|
Cable Weight
|
260KG/KM
|
160KG/KM
|
115KG/KM
|
|||
|
Loose Tube Material
|
PBT
|
|
|
|||
|
Filling compound (Tube)
|
Thixotropic Jelly
|
|
|
|||
|
Water Blocking
|
Water Swell able Material
|
|
|
|||
|
Out sheath
|
PE OR AT
|
|
|
|||
