Quick Details
-
Voltage:
-
220v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HENGJIN
-
Gross Power:
-
900W
-
Dimensions(L*W*H):
-
530x 580x 1385mm
-
Weight:
-
150 KG
-
Product name:
-
Running table hot stamping machine
-
Max printing logo size:
-
150x 195mm
-
Max printing products height:
-
185mm
-
Work bench size::
-
17 * 22 cm
-
Heating Power:
-
900W
-
Stamping Pressure:
-
<130kgf
-
Stamping stroke:
-
38mm
-
Machine dimension:
-
70*75*170 cm
-
standard:
-
CE certification
Quick Details
-
Condition:
-
New
-
Plate Type:
-
Letterpress
-
Color & Page:
-
single color
-
Voltage:
-
220v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HENGJIN
-
Gross Power:
-
900W
-
Dimensions(L*W*H):
-
530x 580x 1385mm
-
Weight:
-
150 KG
-
Product name:
-
Running table hot stamping machine
-
Max printing logo size:
-
150x 195mm
-
Max printing products height:
-
185mm
-
Work bench size::
-
17 * 22 cm
-
Heating Power:
-
900W
-
Stamping Pressure:
-
<130kgf
-
Stamping stroke:
-
38mm
-
Machine dimension:
-
70*75*170 cm
-
standard:
-
CE certification

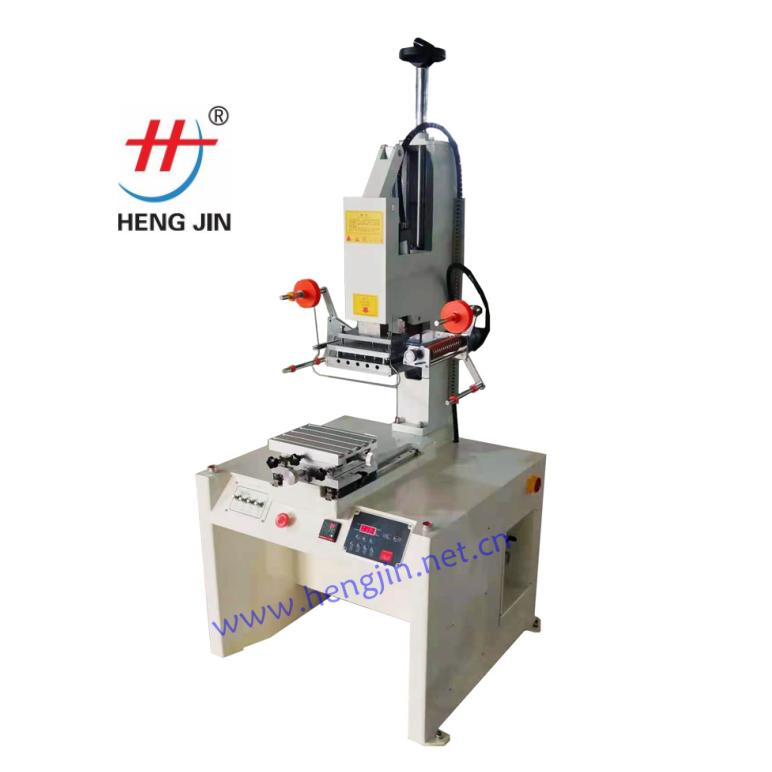

HH-195 Hot sale running table hot stamping machine
New style Hot stamping machine for paper leather plastic products
hot stamp printing machine Parameter:
|
Stamping Plate Size |
150x 195mm |
Stamping Temperature Scope |
0-280 C degree |
|
Worktable Size |
108x 108mm |
Max products Height |
185mm |
|
|
|
Stamping Pressure |
Less 130KGF |
|
Max products Size |
100x 100mm |
Max Stamping Speed |
1200 pcs/ hr |
|
Stroke of Stamping Plate |
38mm |
Power |
220V 50HZ |
|
Heating Power |
900W |
Air Source Pressure |
4-7 bar |
|
Gas Consumption |
Less 40L/Min |
Dimention |
530x 580x 1385mm |
hot stamp printing machine Function Features:
1 Microprocessor controlling, pneumatic units driving;
2 Stamping pressure, temperature and time adjustable;
3 Worktable could be adjustable for forth/rear move, easy and safe operation;
4 Worktable could be adjustable for forth/back, left/right position,as well as turned slightly;
5 Auoto and adjustable paper feeding, collection;
6 According to different height of various substrates, stamping height adjustment through turning handwheel and stamping stroke adjustment by turning knob;
7 Available for bend and cylindrical substance printing, dismantle shuttle table for flat printing;
