Name:
-

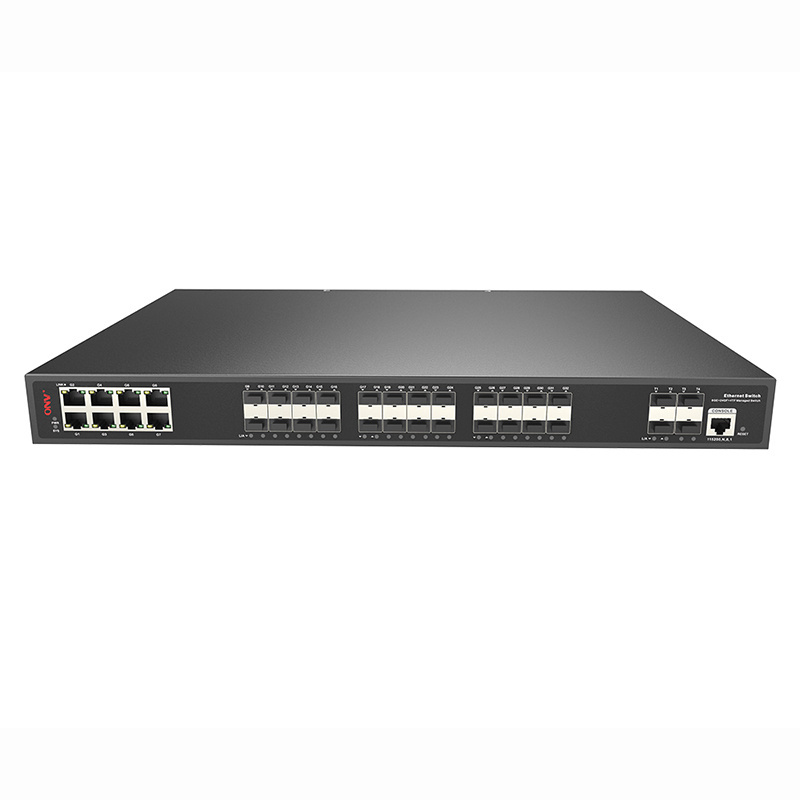

Ethernet Switch 24 Ports Gigabit Core Switch
-
Brand:
-
ONV, Accept OEM
-
PoE Standard:
-
IEEE802.3af/at
-
Switching Capacity:
-
336Gbps (Non-blocking)
-
Buffer Memory:
-
12M
-
Warranty:
-
3 Years
Quick Details
-
Type:
-
Enterprise Switch
-
Model Number:
-
ONV58368FM
-
Place of Origin:
-
Guangdong China
-
Brand Name:
-
ONV
-
Use:
-
CCTV, Indoor
-
Products Status:
-
Stock
-
Transmission Rate:
-
10gbps
-
Certification:
-
CE RoHS FCC
-
Name:
-
Ethernet Switch 24 Ports Gigabit Core Switch
-
Brand:
-
ONV, Accept OEM
-
PoE Standard:
-
IEEE802.3af/at
-
Switching Capacity:
-
336Gbps (Non-blocking)
-
Buffer Memory:
-
12M
-
Warranty:
-
3 Years
Gigabit multi fiber port access, 10G SFP+ fiber port uplink
◇All series supports “Gigabit Ethernet port and gigabit SFP fiber slot port and 1/10G SFP+ fiber slot port “combination, which enables users to flexibly build networking to meet the needs of various scenarios. ◇Support non-blocking wire-speed forwarding. ◇Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Strong business processing capability
◇IEEE802.1Q VLAN, flexible VLAN division,Voice VLAN and QinQ configuration. ◇QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR & SP+WRR. ◇ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control. ◇IGMP V1/V2 and IGMP Snooping. ◇ERPS/STP/RSTP/MSTP. ◇Static and dynamic aggregation.
Easy operation and maintenance management
◇Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).
◇HTTPS, SSLV3, and SSHV1/V2.
◇RMON, system log, LLDP, and port traffic statistics.
◇CPU monitoring, memory monitoring, Ping test, and cable diagnose.
Security
◇802.1X authentication. ◇Port isolation,Storm control. ◇IP-MAC-VLAN-Port binding.
◇CCC,CE, FCC, RoHS. ◇Low power consumption, galvanized steel casing, The fan active cooling. ◇Self-developed power supply, high redundancy design, providing a long term and stable power output. ◇The user-friendly panel, it can show the device status through the LED indicator of PWR,SYS, Link/A.
|
Model
|
ONV36368FM
|
|
||
|
Interface Characteristics
|
|
|
||
|
Fixed Port
|
8*10/100/1000Base-T RJ45 ports (Data)
24*100/1000Base-X SFP ports (Data) 4*1/10G RJ45 ports (Data) 1*Console RS232 port (115200,N,8,1) |
|
||
|
Ethernet Port
|
Port 1-8 support 10/100/1000Base-T,auto-sensing,Full/half duplex MDI/MDI-X self-adaption
|
|
||
|
Twisted Pair Transmission
|
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
||
|
SFP Slot Port
|
Gigabit SFP optical fiber interface, default matching optical modules
(optional order single-mode / multi-mode, single fiber /dual fiber optical
module. LC)
|
|
||
|
Optical Cable
|
Multi mode: 850nm 0 ~ 550M,single mode: 1310nm 0 ~ 40KM, 1550nm
0
~
120KM.
|
|
||
|
Chip Parameter
|
|
|
||
|
Network Management Type
|
L2+
|
|
||
|
Network Protocol
|
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX/FX; IEEE802.3ab 1000Base-TX IEEE802.3z 1000Base-X；IEEE802.3x |
|
||
|
Forwarding Mode
|
Store and Forward(Full Wire Speed)
|
|
||
|
Switching Capacity
|
336Gbps
|
|
||
|
Forwarding
Rate@64byte |
107.14Mpps
|
|
||
|
MAC
|
16K
|
|
||
|
Buffer Memory
|
12M
|
|
||
|
Jumbo Frame
|
9.6K
|
|
||
|
LED Indicator
|
Power indicator:PWR(yellow); system indicator:SYS(yellow); network indicator: Link(yellow); Fiber port indicator L/A(green)
|
|
||
|
Reset Switch
|
Yes, One-button factory reset
|
|
||
|
Power
|
|
|
||
|
Total PWR / Input Voltage
|
60W (AC100-240V)
|
|
||
|
Power Consumption
|
Standby<20W; Full Load<45W
|
|
||
|
Power Supply
|
Built-in power supply, AC 100~240V 50-60Hz 5.0A
|
|
||
|
Physical Parameter
|
|
|
||
|
Operation TEMP / Humidity
|
-20~+55°C;5%~90% RH Non condensing
|
|
||
|
Storage TEMP / Humidity
|
-40~+80°C;5%~95% RH Non condensing
|
|
||
|
Dimension (L*W*H)
|
440*290*44.5mm
|
|
||
|
<3.2kg / <3.8kgNet /Gross Weight
|
<3.5kg / <4.3kg
|
|
||
|
Installation
|
Desktop, wall-mounted,19 inch 1U cabinet
|
|
||
|
Certification & Warranty
|
|
|
||
|
Lightning protection
|
Lightning protection :4KV 8/20us;
Protection Level:IP30 |
|
||
|
Certification
|
CCC;CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS;
|
|
||
|
Warranty
|
3 years , lifelong maintenance.
|
|
||
|
Network Management
|
|
|
||
|
Interface
|
IEEE802.3x flow control (full duplex)
Broadcast storm suppression for port rate
support speed limit for incoming and offline message traffic, with a minimum particle size of 64Kbps. Temperature protection setting Energy saving configuration of port EEE Ethernet |
|
||
|
VLAN
|
Support port based VLAN (4K), IEEE802.1q
Support protocol based VLAN Support for MAC address-based VLAN Support Voice VLAN Support Access, Trunk, Hybrid three types of port configuration Support QinQ configuration |
|
||
|
Port Aggregation
|
LACP, Static aggregation, Max 16 aggregation groups and 8 ports per group.
|
|
||
|
Spanning Tree
|
STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)
|
|
||
|
Industrial Ring Network Protocol
|
G.8032 (ERPS),255 Ring at most, Max 1024 devices per ring.
Recovery time less than 20ms |
|
||
|
Multicast
|
IGMP Snooping v1/v2/v3, Max 1024 multicast groups
Fast log out,MLD Snooping v1/v2,Multicast VLAN |
|
||
|
Port Mirroring
|
Bidirectional data mirroring based on port
|
|
||
|
QoS
|
Diff-Serv QoS,
Priority Mark/Remark,
8*Output queues of each port
Queue Scheduling Algorithm (SP, WRR, SP+WRR) ACL based on port and VLAN, Flow-based Packet Filtering Flow-based Redirection, Flow-based Rate Limiting
802.1p/DSCP priority mapping
|
|
||
|
ACL
|
L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based
on
MAC, Destination MAC address, IP Source, Destination IP, IP Protocol
Type,
TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. Port-based Issuing
ACL.
ACL based on port and VLAN
|
|
||
|
Security
|
User hierarchical management and password protection
IEEE802.1X & MAC address authentication AAA & RADIUS，Broadcast storm control MAC learning limit,Mac black holes. SSH 2.0,SSL,ARP inspection Port isolation, ARP message speed limit IP source protection, Anti-DoS attack Backup for host datum，IP-MAC-VLAN-Port binding |
|
||
|
DHCP
|
DHCP Client, DHCP Snooping，DHCP Server,DHCP Relay
|
|
||
|
Management
|
ONV NMS - Smart Network Management System Platform (LLDP+SNMP)
Web Management (HTTPS)，SNMP V1/V2C/V3,LLDP Download & Management on FTP, TFTP, Xmodem, SFTP One-key recovery, Cable Diagnose NTP,Ping Test,System work log CPU instant utilization status view |
|
||
|
System
|
Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42
or
higher, Microsoft Internet Explorer10 or later;
TCP/IP, network adapter, and network operating system (such as Microsoft
Windows, Linux, or Mac OS X) installed on each computer in a network
Category 5 Ethernet network cable |
|
||
|
Model
|
Description
|
|
|
|
|||
|
ONV36368FM
|
L2+ managed Ethernet aggregation /core fiber switch with 8* 10/100/1000M RJ45 ports and 24*100/1000M SFP ports and 4*1/10G SFP+
fiber slot ports. Built-in 60W power supply. Support 1U/19 inch rack installation. |
|
|
|
|||
|
PACKING LIST
|
CONTENT
|
QTY
|
UNIT
|
|||
|
|
36-port 10G uplink L3 managed Ethernet fiber switch
|
1
|
SET
|
|||
|
|
RJ45-DB9 Line
|
1
|
PC
|
|||
|
|
AC Power Cable
|
1
|
PC
|
|||
|
|
Mounting Kits(Hanging Ear)
|
1
|
SET
|
|||
|
|
User Guide
|
1
|
PC
|
|||
|
|
Warranty Card
|
1
|
PC
|
|||
|
Note:
Ethernet switch does not match the optical module by default.
|
Note
:
Industrial PoE switch does not match the power supply and SFP module.
|
|
|
|||
