Quick Details
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
web-20240419-6
-
Brand Name:
-
WEB
-
name:
-
stainless steel 304 304L 316 316L flat top crimped wiremesh
-
keyword:
-
stainless steel flat top crimped wire mesh
-
usage:
-
machine guards,safety guards,aggregate sizing and sorting
-
mesh opening:
-
4mm to 60mm
-
wire diameter:
-
1.6mm to 5mm
-
mesh width:
-
up to 4m
-
sample:
-
avaliable
-
design:
-
professional 3D and CAD drawing
-
supply form:
-
crimped mesh can be made in rolls or sheets
Quick Details
-
Material:
-
stainless steel wire, galvanized steel wire,
-
Type:
-
Crimped Wire Mesh
-
Application:
-
Screen
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
web-20240419-6
-
Brand Name:
-
WEB
-
name:
-
stainless steel 304 304L 316 316L flat top crimped wiremesh
-
keyword:
-
stainless steel flat top crimped wire mesh
-
usage:
-
machine guards,safety guards,aggregate sizing and sorting
-
mesh opening:
-
4mm to 60mm
-
wire diameter:
-
1.6mm to 5mm
-
mesh width:
-
up to 4m
-
sample:
-
avaliable
-
design:
-
professional 3D and CAD drawing
-
supply form:
-
crimped mesh can be made in rolls or sheets
Stainless steel 304 304L 316 316L flat top crimped wiremesh
Flat top wire mesh materials
Corrosion resistance is the main advantage of stainless steel, stainless steel is also high and low temperature resistant,easily fabricated,strong and durable,easy cleaned and maintained etc.

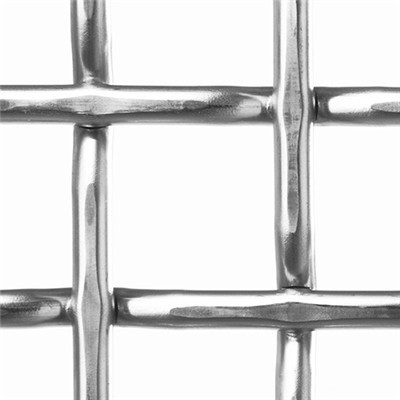

Woven Types : Flat Top Crimped
Flat top is similar to the lock crimp, but all of its crimping is offset to one side of the material. This creates a smooth top surface, with no high points, as all wires are woven on a single plane. Its bottom side, however, has crimp bumps approximately twice the height of lock crimp bumps. The smooth shape of flat top lends itself to a wide variety of architectural applications because of its unique characteristics and reflectivity.
Characteristics of crimped wire mesh
Application of crimped wire mesh
Usage of flat top crimped wire mesh includes:
- In the architectural & decorative industries, for the screen of fence, facade and ceiling.
- In the agricultural & food industries, for pig raising screens.
- In the mining & aggregate industries,vibrating machine.
Mesh Sizes
Mesh 4mm to 60mm
Roll width 1000mm to 4000mm
Length 15m,30m,60m,90m
|
wire |
aperture |
open area |
weight |
|
mm |
mm |
% |
kg/m2 |
|
1.6 |
4 |
51 |
5.7 |
|
1.6 |
10 |
75 |
2.6 |
|
2.0 |
6 |
57 |
6.2 |
|
2.0 |
8 |
64 |
5.0 |
|
2.0 |
10 |
69 |
4.2 |
|
2.0 |
12 |
73 |
3.6 |
|
3.0 |
12 |
64 |
7.6 |
|
5.0 |
12 |
49 |
18.6 |
|
2.0 |
15 |
77 |
2.9 |
|
2.5 |
15 |
73 |
4.5 |
|
3.0 |
16 |
70 |
6.0 |
|
4.0 |
16 |
64 |
10.1 |
|
2.0 |
20 |
82 |
2.3 |
|
2.5 |
20 |
79 |
3.5 |
|
3.0 |
20 |
75 |
4.9 |
|
3.0 |
25 |
79 |
4.0 |
|
4.0 |
25 |
74 |
7.0 |
|
3.0 |
30 |
82 |
3.4 |
|
3.0 |
40 |
86 |
2.6 |
|
4.0 |
40 |
82 |
4.6 |
|
5.0 |
40 |
79 |
7.0 |
|
3.0 |
50 |
88 |
2.1 |
|
4.0 |
50 |
85 |
3.7 |
|
5.0 |
50 |
82 |
5.7 |
|
5.0 |
60 |
85 |
4.8 |
Packing of crimped wire mesh
flat top crimped woven wire screen packed in rolls,wrapped in moistureproof paper or plastic film, outside wooden cases or wooden pallet.
About us
Web Wire Mesh has been manufacturing crimp screen since 1995. We are an ISO 9001-2000 certified company and we take quality seriously. High quality products are the life of our enterprise and the satisfaction of our customers is our endless pursuit.
FAQ
1.Are you trader or manufacturer?
We are a professional wire mesh manufacturer.
2.Do you accept ODM&OEM orders?
Yes, we provide ODM&OEM services to worldwide customers, we are able to customize in different styles and sizes, we also customize packaging box as per your requirements.
3.What is your minimum order quantity?
Our usual quantity is 60 square meters .
4.Which payment method you can accept?
Generally we adopt T/T, L/C, Western Union etc
5.Is shipping included in the price?
Unless otherwise stated, pricing does not include shipping costs.
6.How long is your delivery time?
Generally it's 10-15 days ( depending on quantity )
7.Do you test all your goods before delivery?
Yes, we have a 100% test before delivery
8.What is sample policy?
We would like to send the wire mesh samples for your testing.
Sample manufacturing cost and air courier cost will be charged, and the sample s will be sent by DHL or other air courier. The s ample costs will be refunded when a bulk order is confirmed unless otherwise specified.
Please contact with us for the details.
