IT WILL BE 5 SPEED .
- Product Details
- {{item.text}}
Quick Details
-
Horsepower:
-
< 150hp
-
Cargo Tank Type:
-
Fence
-
Gross Vehicle Weight:
-
5001-10000 kg
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Video technical support, Online support
-
Place of Origin:
-
Hubei, China
-
Size:
-
5995*1980*2155
-
Cargo Tank Dimension:
-
3500*1880*400
-
Driving type:
-
4x2
-
Wheelbase(mm):
-
3300
-
Product name:
-
truk crane
-
Chassis brand:
-
DongFeng.FAW.Foton.Sino.JAC.IVECO.Shacman
-
Tire:
-
7.00R16
-
Transmission:
-
Manual Operation
-
Horse power:
-
102hp
-
Loading capacity:
-
2-5TON
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 3
-
Market Segement:
-
Construction materials transportation
-
Horsepower:
-
< 150hp
-
Cargo Tank Type:
-
Fence
-
Gross Vehicle Weight:
-
5001-10000 kg
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Video technical support, Online support
-
Place of Origin:
-
Hubei, China
-
Size:
-
5995*1980*2155
-
Cargo Tank Dimension:
-
3500*1880*400
-
Driving type:
-
4x2
-
Wheelbase(mm):
-
3300
-
Product name:
-
truk crane
-
Chassis brand:
-
DongFeng.FAW.Foton.Sino.JAC.IVECO.Shacman
-
Tire:
-
7.00R16
-
Transmission:
-
Manual Operation
-
Horse power:
-
102hp
-
Loading capacity:
-
2-5TON

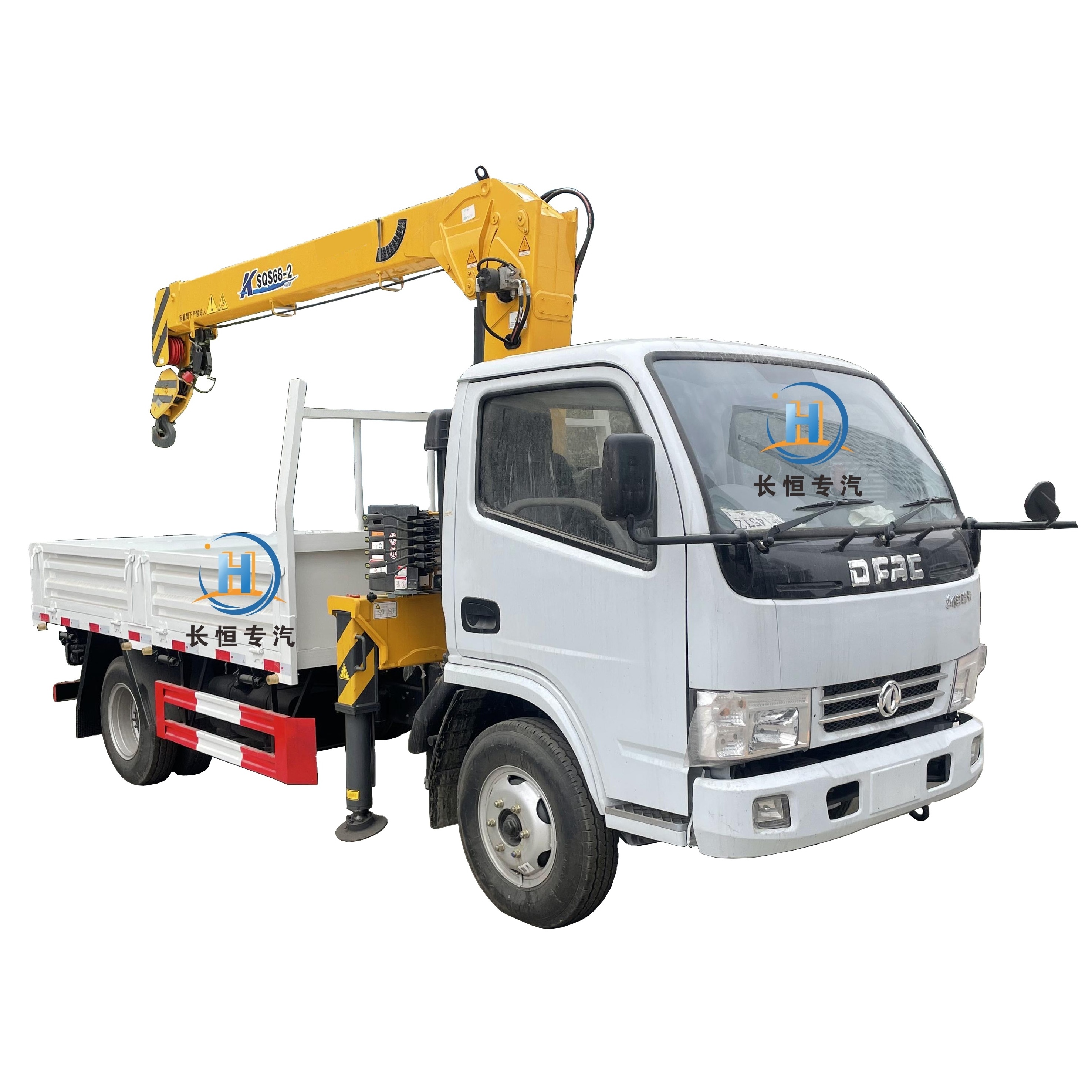

Main Images
LEFT HAND DRIVE IS OPTIONAL !!!
Specification
|
Dimension
|
Length (mm)
|
5970
|
||
|
|
width (mm)
|
1980
|
||
|
|
height (mm)
|
2155
|
||
|
Cargo tray size (mm)
|
|
3500*1800*400
|
||
|
Wheelbase (mm)
|
|
3300
|
||
|
Total weight ( Kg)
|
|
7500
|
||
|
Vehicle weight (kg)
|
|
3650
|
||
|
Payload (kg)
|
|
4000
|
||
|
Oil tank volume (L)
|
|
140
|
||
|
ENGINE
|
|
|
||
|
Engine model
|
|
CY4102-C3F
|
||
|
Fuel type
|
|
Diesel
|
||
|
Engine structure
|
|
4 cylinders , in-line, Turbo ,Intercooler
|
||
|
Engine power (kw)
|
|
70
|
||
|
Max torque (N.m/rpm)
|
|
235/1600
|
||
|
Displacement (cc)
|
|
3856
|
||
|
Engine manufacturer
|
|
Dongfeng cummins Co.,ltd
|
||
|
Emission standard
|
|
EURO II
|
||
|
CHASSIS & MODIFICATION
|
|
|
||
|
Transmission
|
|
5 speed, Manual
|
||
|
Axles capacity
|
|
Front 2.3 ton, Rear 4 ton
|
||
|
Suspension system
|
|
leaf spring
|
||
|
Brake
|
|
Air brake
|
||
|
Tyres
|
|
7.00R16
|
||
|
Crane lift capacity (kg)
|
|
2000
|
||
|
Knucles of the crane
|
|
2 or 3
|
||
