IB-3-24-250/300（LFP）

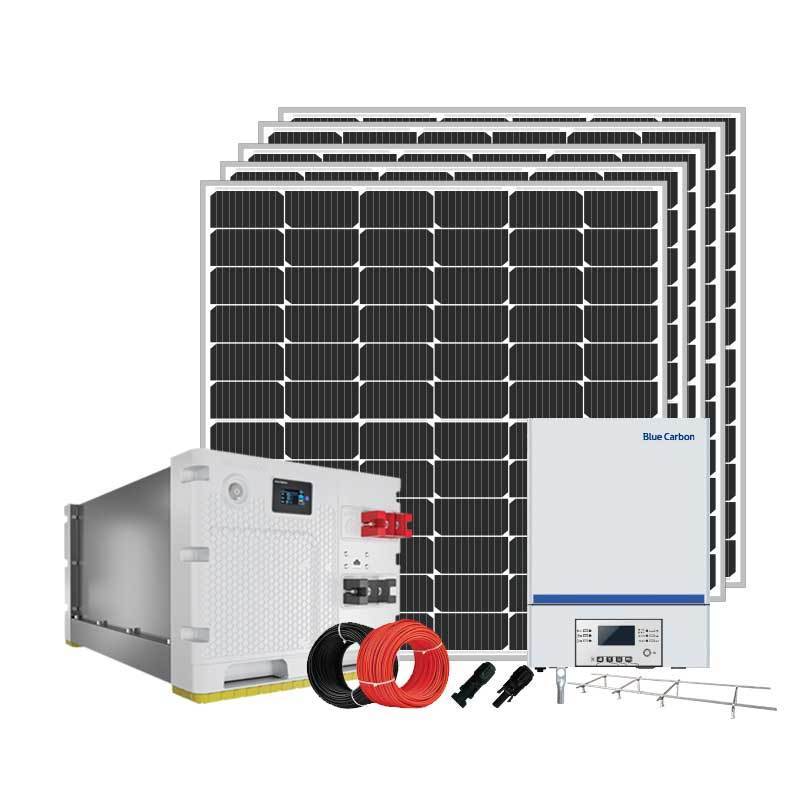

Power Generation-Storage-Inverter BOX
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Controller Type:
-
NONE
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
UN38.3/CE/MSDS/DGM
-
Warranty:
-
5 Years, 5 Years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Blue Carbon
-
Model Number:
-
BCT-B3-24-250/300(LFP)
-
Output Frequency:
-
50HZ/60HZ
-
Work Time (h):
-
24 Hours
-
Nominal Capacity:
-
250Ah/300Ah
-
Nominal Voltage:
-
24V(25.6V)
-
Electricity(kWh):
-
6.4kWh/7.68kWh
-
Cell type:
-
LiFePO4 Battery/LFP
-
Panel Power:
-
300w
-
Panel Size:
-
1134*1166*35mm
-
Inverter Rated Power:
-
3kw
-
Inverter Max. input Voltage:
-
230Vac
-
Certification standards:
-
UN38.3/CE/MSDS/DGM
Quick Details
-
Application:
-
Commercial
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lithium Ion
-
Controller Type:
-
NONE
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
UN38.3/CE/MSDS/DGM
-
Warranty:
-
5 Years, 5 Years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Blue Carbon
-
Model Number:
-
BCT-B3-24-250/300(LFP)
-
Output Frequency:
-
50HZ/60HZ
-
Work Time (h):
-
24 Hours
-
Nominal Capacity:
-
250Ah/300Ah
-
Nominal Voltage:
-
24V(25.6V)
-
Electricity(kWh):
-
6.4kWh/7.68kWh
-
Cell type:
-
LiFePO4 Battery/LFP
-
Panel Power:
-
300w
-
Panel Size:
-
1134*1166*35mm
-
Inverter Rated Power:
-
3kw
-
Inverter Max. input Voltage:
-
230Vac
-
Certification standards:
-
UN38.3/CE/MSDS/DGM
Product Description
Blue Carbon BOX
Product Advantage
|
Power
|
300W
|
|
Open-Circuit Voltage（Voc）[V]
|
49.52V
|
|
Optimum Operating Voltage（Vmp）[V]
|
41.32V
|
|
Short-Circuit Current（Isc）[A]
|
7.67A
|
|
Optimum Operating Current（Imp）[A]
|
7.26A
|
|
Component Effiffifficiency[%]
|
22.68%
|
|
Size
|
1134×1166×35mm
|
* High efficiency.
* High transmission tempered glass.
* Durable anodized aluminum frame.
* Efficient protection from frame deformation and water accumulation.
* Rugged design to withstand high wind pressure and snow load, easy installation.
* High transmission tempered glass.
* Durable anodized aluminum frame.
* Efficient protection from frame deformation and water accumulation.
* Rugged design to withstand high wind pressure and snow load, easy installation.
|
Nominal Capacity
|
250Ah/300Ah
|
|
Nominal Voltage
|
24V
|
|
Electricity(kWh)
|
6.4kWh/7.68kWh
|
* High quality aluminium magnesium alloy, anti-corrosion, substantial, durable, artistic, practical.
* All in one mould design and production, easy to install.
* With longer span life LiFePO4 battery, over 12 years lifespan, ensure the whole set products’life span.
* Dustproof structure d esign, DC output, safe and reliable.
* Integrated packaging, safe and convenient to transport.
* All in one mould design and production, easy to install.
* With longer span life LiFePO4 battery, over 12 years lifespan, ensure the whole set products’life span.
* Dustproof structure d esign, DC output, safe and reliable.
* Integrated packaging, safe and convenient to transport.
|
Rated Power
|
3kW
|
|
Max. input Voltage
|
230Vac
|
|
Rated Frequency
|
50Hz / 60Hz (auto-sensing)
|
|
AC Voltage Regulation(Batt. Mode)
|
230Vac±5%
|
|
Waveform
|
Pure Sine Wave
|
|
Battery Voltage
|
24Vdc
|
Blue Carbon photovoltaic inverters have outstanding strength. At present,
Blue Carbon
Photovoltaic has obtained grid access certifification in 20 countries around the world, ranking among the top 10 distributed inverter brands in China, the most inflfluential brand in China's energy storage industry, and the best solar energy storage integrated solution provider in China's energy storage industry. It has been awarded as one of the top 500 global new energy companies. It has been exported to more than 100 countries and regions in the world, and has been highly recognized by global consumers.
Wide Application
1.For no city power areas, the battery pack can be charged by solar panels and used for night lighting;
2.For the areas that city power is expensive, the battery pack can be charged during the electricity valley value period, and used at the peak power period;
3.For the areas which power off from time to time, the battery pack can be used as UPS, to avoid information loss caused by sudden power outage.
4.The battery pack is applicable to commercial lighting, industrial lighting, home lighting, outdoor lighting, camping tourism, farming, planting, the night market stalls, etc.
Why Blue Carbon
Blue Carbon Technology Inc. designs, manufactures and markets of solar module products for residential, commercial and industrial application worldwide. We put customers' needs first, and we are devoted to progress, innovation and ethical choices. Solar energy is about empowerment, and that's something we take very seriously. Our mission is to deliver innovative photovoltaic technologies for building integration to generate renewable solar electric power. Our hope is to secure the health of our planet for future generation by transforming our infinite supply of sunshine into a practical energy for humanity.
Strict Test & Inspection
Blue Carbon battery pack undergoes rigorous quality control inspection at each stage of assembly and strictly tested to ensure a reliable and consistent product.
High-standard Production
Blue Carbon lithium batteries are built to the high standards from the inside out, quality and safety are guaranteed to work in various applications
Certificate
Blue Carbon lithium battery comply to CE, MSDS, UN38.3 etc certifications that are safe for sale and delivery.
Packing&Shipping
Professional export package
1.Every customs-compliant battery will be packaged in dangerous goods. Appropriate packaging methods will be used based on battery weight and size that are strong enough to last for extended periods of time Long-distance transport.
2.Payment Term: FOB, CFR, CIF, DDP, DAP base on customers' requirement.
3.Shipment: By sea, By air, By train, Express courier available.
3.Shipment: By sea, By air, By train, Express courier available.
Reliable Shipping Service
Blue Carbon cooperates with professional and experienced forwarders in the transport of dangerous goods, to guarantee the battery shipping quick, safe, and efficiency.
WARM PROMPT：
1.If you can't find the product you need, please do not leave immediately, as our products are not all displayed in our Alibaba
store, please contact us, we will reply within 24 hours. 2.If you do not know which model is suitable for your project, please
contact us and we will reply within 24 hours.
3.If you are interested in our products and want to know more, but have no purchase requirements at present, please contact us, we
will update our new products for you.
4.As the price of raw materials and exchange rate changes frequently, and our products are constantly upgrading, the product price
is not regarded as the final transaction price, please contact us for the latest product information and price.
store, please contact us, we will reply within 24 hours. 2.If you do not know which model is suitable for your project, please
contact us and we will reply within 24 hours.
3.If you are interested in our products and want to know more, but have no purchase requirements at present, please contact us, we
will update our new products for you.
4.As the price of raw materials and exchange rate changes frequently, and our products are constantly upgrading, the product price
is not regarded as the final transaction price, please contact us for the latest product information and price.
Customer feedback
Our Service:
1. Quick reply within 24 hours.
2. Blue Carbon guarantees all the products are inspected properly before delivery.
3. Blue Carbon provides quality card, detailed installation guide and common problem solution,ensuring the customer to install our products correctly.
4. Blue Carbon promises to provide solutions within 24 hours since quality objection raised by customer. Customer shall cooperate with the supplier to check the cause in order to confirm quality problem.
5. Blue Carbon strictly fulfill the responsibility of after-sales service, being committed to warranty scope, implementing the national regulation for industrial products. We will exchange the defective products for free
when quality problem has been confirmed.
3. Blue Carbon provides quality card, detailed installation guide and common problem solution,ensuring the customer to install our products correctly.
4. Blue Carbon promises to provide solutions within 24 hours since quality objection raised by customer. Customer shall cooperate with the supplier to check the cause in order to confirm quality problem.
5. Blue Carbon strictly fulfill the responsibility of after-sales service, being committed to warranty scope, implementing the national regulation for industrial products. We will exchange the defective products for free
when quality problem has been confirmed.
matters need attention:
1. Never use or keep the battery under the high temperature. Otherwise it will cause battery heat, get into fire or lose some function and reduce the life. The proposed temperature for long-term storage 10-45℃ 2. Never throw the battery into fire or heating machine to avoid fire, explosion and environment pollution; scrap battery should be returned to the supplier and handled by the recycle station.
3. Never use the battery under strong static and strong magnetic field, otherwise it will destroy the protecting device.
4. If battery leaked, the electrolyte get into eyes, please don’t knead, please wash eyes by water and send to hospital. Otherwise it will hurt eyes.
5. If battery emit peculiar smell, heating, distortion or appear any unconventionality during using, storage or charging process, please take it out from device or charge and stop using.
6. Never cut the battery in socket directly; please use the stated charger when charging.
7. Check the voltage of battery and relevant connectors before using the battery. It can’t be used until everything turns out to be normal.
8. Prior to charging, fully check the insultivity, physical condition and ageing status, since breakage and ageing are never allowed; the pack voltage must not be less than 10V,if not, it’s abnormal and that battery needs to be labeled. The user should contact our Customer Service Dept and It can’t be charged until
repaired by our staff.
9. The battery should be stored in half SOC. It needs to be charged once if out of use foras long as half a year.
10. Clean the dirty electrode, if any, with a clean dry cloth, or poor contact or operation failure may occur.
11.It is strictly forbidden to install near bed-room and nearby flammable material. 12.Installation in inhabited rooms is not rec-ommended.
13.It is strictly forbidden to use the controllers,inverters, inverters and controller integratded equipment which are not professionally matched.
FAQ
1.Q: Can I have a sample order?
A:Yes, we welcome sample order to test and check quality
2. Q:What about the lead time?
A:Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.
3. Q: Do you have any MOQ limit?
A:Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
4. Q: How do you ship the goods and how long does it take to arrive?
A:It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
5. Q:How to proceed with an order?
A: Firstly let us know your requirements or application.
A:Yes, we welcome sample order to test and check quality
2. Q:What about the lead time?
A:Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.
3. Q: Do you have any MOQ limit?
A:Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
4. Q: How do you ship the goods and how long does it take to arrive?
A:It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
5. Q:How to proceed with an order?
A: Firstly let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places a deposit for formal order.
Fourthly We arrange the production.
6 .Q:What is the terms of payment?
A:T/T, L/C, Alipay, for T/T it is 30% for deposit, the balance 70% before shipment for bulk order.
7.Q:How about the after sales service?
A:Blue Carbon welcome you contact us at 24 hours per day, 7 days per week,your any questions will be highly appreciated.
6 .Q:What is the terms of payment?
A:T/T, L/C, Alipay, for T/T it is 30% for deposit, the balance 70% before shipment for bulk order.
7.Q:How about the after sales service?
A:Blue Carbon welcome you contact us at 24 hours per day, 7 days per week,your any questions will be highly appreciated.
