- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
SHN
-
Brand Name:
-
GEWLISON
-
Model Number:
-
ldf2500xe
-
Speed:
-
3600
-
Product Name:
-
Silent Diesel Generator
-
Type:
-
Silent(super Silent)or Open
-
Engine:
-
Brand Engine
-
Controller:
-
Smartgen
-
Control panel:
-
LCD Digital Display
-
Phase:
-
1 Phase/3 Phase
-
Cooling method:
-
Air-cooling System
-
Starting system:
-
Electric System
-
Warranty time:
-
1 Year Or1000 Hours
-
ATS:
-
SUYANG OPTIONAL
-
Certification:
-
CE
Quick Details
-
Rated Voltage:
-
400/230V/110v
-
Rated Current:
-
24A
-
Frequency:
-
50/60HZ
-
Place of Origin:
-
SHN
-
Brand Name:
-
GEWLISON
-
Model Number:
-
ldf2500xe
-
Speed:
-
3600
-
Product Name:
-
Silent Diesel Generator
-
Type:
-
Silent(super Silent)or Open
-
Engine:
-
Brand Engine
-
Controller:
-
Smartgen
-
Control panel:
-
LCD Digital Display
-
Phase:
-
1 Phase/3 Phase
-
Cooling method:
-
Air-cooling System
-
Starting system:
-
Electric System
-
Warranty time:
-
1 Year Or1000 Hours
-
ATS:
-
SUYANG OPTIONAL
-
Certification:
-
CE

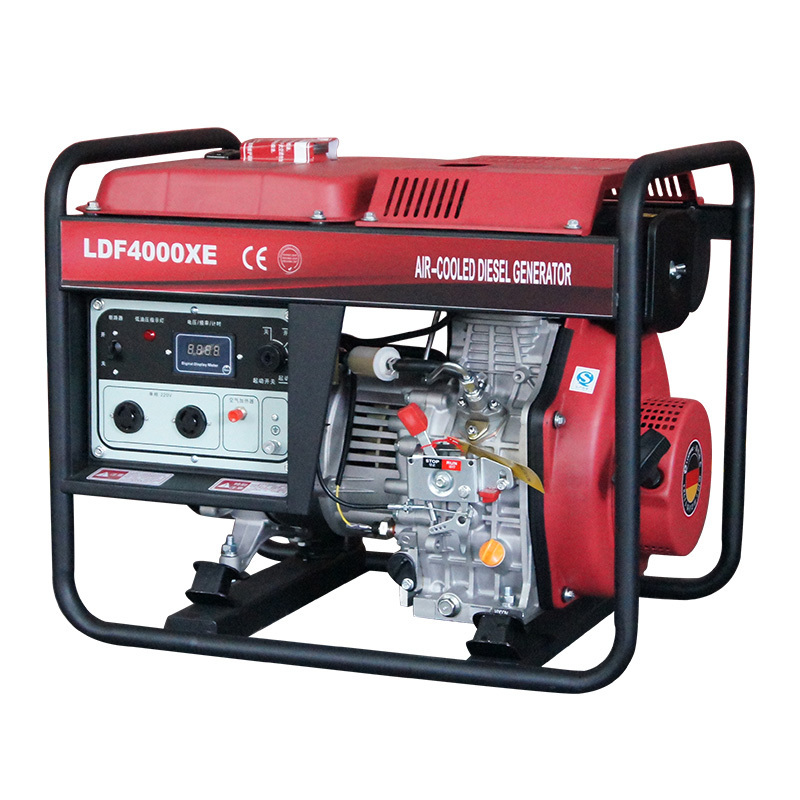

PRODUCT SHOW
Export 68+countries;
Have our own shipping lines, cheap transportation
1 year after sale service;
Strong technical team of chief engineers, senior technicians,QC;
Equipped with completely inspection&testing equipment.
1 year after sale service;
Strong technical team of chief engineers, senior technicians,QC;
Equipped with completely inspection&testing equipment.
SPECIFICATION
|
MODEL
|
|
LDF2500XE
|
LDF4000XE
|
LDF6700XE(-3/3D)
|
||||
|
GENERATOR
|
Frequency HZ
|
50HZ /60HZ
|
|
|
||||
|
|
Voltage V
|
110V/220V/240V/380V/400V
|
|
|
||||
|
|
Rated power KVA
|
2.2
|
3.0
|
5.0/6.5
|
||||
|
|
Max power KVA
|
2.5
|
3.3
|
5.5/7.0
|
||||
|
|
Phase
|
Single phrase
|
Single phrase
|
Single phrase/Three phrase
|
||||
|
|
Excitation mode
|
Brush self excitation
|
|
|
||||
|
|
Power factor
|
1.0
|
1.0
|
1.0
|
||||
|
|
Insulation class
|
F
|
F
|
F
|
||||
|
Engine
|
Engine number
|
LD170F
|
LD178F
|
LD186FA
|
||||
|
|
Start model
|
Recoil / Electric
|
|
|
||||
|
|
Engine model
|
Single cylinder, four stroke, air cooled
|
|
|
||||
|
|
Bore×Stroke mm
|
70*55
|
78*62
|
86*72
|
||||
|
|
Displacement cc
|
211
|
296
|
418
|
||||
|
|
Compression ratio
|
20:1
|
20:1
|
19.5:1
|
||||
|
|
Speed rpm
|
3600
|
3600
|
3600
|
||||
|
|
Fuel capacity L
|
12.5
|
12.5
|
12.5
|
||||
|
|
Fuel consumption g/kwh
|
275
|
275
|
285
|
||||
|
|
Oil capacity L
|
0.75
|
1.1
|
1.65
|
||||
|
Package
|
Net weight KG
|
48
|
63
|
99
|
||||
|
|
Package mm
|
640*460*520
|
640*460*540
|
740*505*630
|
||||
|
|
|
|
|
|
||||
|
MODEL
|
|
LD7500XE(-3/3D)
|
LDF8500XE(-3/3D)
|
LDF9500XE(-3/3D)
|
||||
|
Generator
|
Frequency HZ
|
50HZ /60HZ
|
|
|
||||
|
|
Voltage V
|
110V/220V/240V/380V/400V
|
|
|
||||
|
|
Rated power KVA
|
5.5/7.0
|
6.5/8.1
|
7.0/8.8
|
||||
|
|
Max power KVA
|
6.0/7.5
|
7.0/8.8
|
7.5/9.3
|
||||
|
|
Phase
|
Single phrase/Three phrase
|
|
|
||||
|
|
Excitation mode
|
Brush self excitation
|
|
|
||||
|
|
Power factor
|
1.0
|
1.0
|
1.0
|
||||
|
|
Insulation class
|
F
|
H
|
H
|
||||
|
Engine
|
Engine number
|
LD188F
|
LDF192F
|
LDF195F
|
||||
|
|
Start model
|
Recoil / Electric
|
|
|
||||
|
|
Engine model
|
Single cylinder, four stroke, air cooled
|
|
|
||||
|
|
Bore*Stroke mm
|
88*75
|
92*77
|
95*75
|
||||
|
|
Displacement cc
|
456
|
492
|
531
|
||||
|
|
Compression ratio
|
19.5:1
|
19.5:1
|
20:1
|
||||
|
|
Speed rpm
|
3600
|
3600
|
3600
|
||||
|
|
Fuel capacity L
|
12.5
|
12.5
|
18
|
||||
|
|
Fuel consumption g/kwh
|
275
|
275
|
260
|
||||
|
|
Oil capacity L
|
1.65
|
1.65
|
1.65
|
||||
|
Package
|
Net weight KG
|
100
|
107
|
126
|
||||
|
|
Package mm
|
740*505*630
|
740*505*630
|
740*505*630
|
||||
|
|
|
|
|
|
||||
|
MODEL
|
|
LDF11000XE(-3/3D)
|
LDF12000XE(-3/3D)
|
LDF16000XE(-3/3D)
|
||||
|
Generator
|
Frequency HZ
|
50HZ /60HZ
|
|
|
||||
|
|
Voltage V
|
110V/220V/240V/380V/400V
|
|
|
||||
|
|
Rated power KVA
|
8.0/10.0
|
9.0/11.0
|
11.0/13.8
|
||||
|
|
Max power KVA
|
8.5/10.6
|
10.0/12.0
|
12.0/15.0
|
||||
|
|
Phase
|
Single phrase/Three phrase
|
|
|
||||
|
|
Excitation mode
|
Brush self excitation
|
|
|
||||
|
|
Power factor
|
1
|
1
|
1
|
||||
|
|
Insulation class
|
H
|
H
|
H
|
||||
|
Engine
|
Engine number
|
LD1100F
|
LD2V80
|
LD282F
|
||||
|
|
Start model
|
Recoil / Electric
|
|
|
||||
|
|
Engine model
|
Single cylinder, four stroke, air cooled
|
Double cylinder, four stroke, water cooled
|
Double cylinder, four stroke, air cooled
|
||||
|
|
Bore*Stroke mm
|
100*85
|
2-80*79
|
2-92*75
|
||||
|
|
Displacement cc
|
667
|
794
|
998
|
||||
|
|
Compression ratio
|
20:1
|
23:1
|
19:1
|
||||
|
|
Speed rpm
|
3600
|
3000
|
3000
|
||||
|
|
Fuel capacity L
|
18
|
34
|
34
|
||||
|
|
Fuel consumption g/kwh
|
260
|
280
|
260
|
||||
|
|
Oil capacity L
|
2.0
|
2.3
|
2.75
|
||||
|
Package
|
Net weight KG
|
160
|
230
|
320
|
||||
|
|
Package mm
|
780*585*705
|
1060*660*880
|
930*660*910
|
||||
|
Optional accessories
|
ATS
|
|
|
|
||||
|
|
Remote control
|
|
|
|
||||
|
|
Digital control panel
|
|
|
|
||||
|
|
Wheels and handles
|
|
|
|
||||
|
Certifications
|
EPA/CARB/CE/EU5
|
|
|
|
||||
PRODUCT DETAILS
