Quick Details
-
Battery Size:
-
12V200Ah
-
Place of Origin:
-
Guangdong, China
-
Type:
-
Li-Ion
-
Size:
-
500*(522)*240*215*(240)mm
-
Name:
-
lifepo4 12v 200ah battery pack
-
Cell Specification:
-
3.2V 6Ah
-
Cell Combination:
-
4S33P
-
input voltage:
-
14.6V
-
out put voltage:
-
10V-14.6V
-
Cycle life:
-
2000 cycles
-
Product name:
-
12v 200ah lithium ion battery
-
Item name:
-
deep cycle solar battery 12v 200ah
-
Certification:
-
CE MSDS
Quick Details
-
Application:
-
Home Appliances, Golf Carts, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
-
Brand Name:
-
Herculesi
-
Model Number:
-
Lifepo4 battery pack
-
Battery Size:
-
12V200Ah
-
Place of Origin:
-
Guangdong, China
-
Type:
-
Li-Ion
-
Size:
-
500*(522)*240*215*(240)mm
-
Name:
-
lifepo4 12v 200ah battery pack
-
Cell Specification:
-
3.2V 6Ah
-
Cell Combination:
-
4S33P
-
input voltage:
-
14.6V
-
out put voltage:
-
10V-14.6V
-
Cycle life:
-
2000 cycles
-
Product name:
-
12v 200ah lithium ion battery
-
Item name:
-
deep cycle solar battery 12v 200ah
-
Certification:
-
CE MSDS

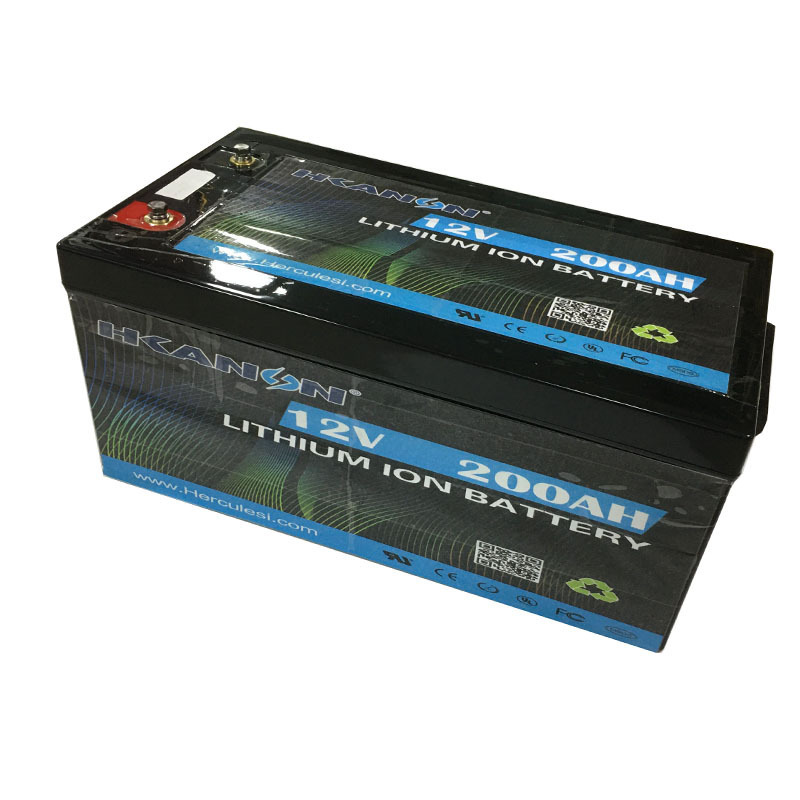

Deep Cycle 12v 200ah LiFePO4 Lithium Ion Battery for Solar/Golf cart/Camping car/Marine/Trolling motor
| 12V 200Ah LiFePO4 battery pack | |
| Nominal voltage | 12.8V |
| Nominal capacity | 200Ah |
| Cell type | 3.2V 6000mAh |
| Cell combine | 4S33P |
| Cell quantity | 132PCS |
| Cycles | more 3000 cycles |
| Standard charge model | CC/CV |
| Standard charge current | 0.5C-100A |
| Fast charge current | 1C-200A(last 10 seconds) |
| Suggest charge current | 10A-50A |
| Constant discharge current | 60A BMS inside |
| Peak current | 100A |
| Rated power | 720W |
| Discharge cut-off voltage | 10V around |
| Charge cut-off voltage | 14.6V |
| Case size | 500*(522)*240*215*(240)mm |
| BMS inside | Over-charge, over-discharge, short circuit,over-temperature, etc/can be customized:Bluetooth ,Balance function, RS485, RS232, SMbus,CAN port, or so on. |
| Package include |
1PC battery 1PC charger or without charger |
| Capacity | Size | Housing |
| 6V 6Ah | 70*46*(100*10)5mm | IP65 |
| 6V 7Ah | 150*34*(92*97)mm | IP65 |
| 6V 10Ah | 150*50*(93*98)mm | IP65 |
| 12V 7Ah | 150*63*(93*98)mm | IP65 |
| 12V 9Ah | 150*63*(93*98)mm | IP65 |
| 12V 12Ah | 151*98*(95*101)mm | IP65 |
| 12V 15Ah | 151*82*130mm | IP65 |
| 12V 20Ah | 181*77*170mm | IP65 |
| 12V 24Ah | 181*77*170mm | IP65 |
| 12V 25Ah | 165*125*(176*180)mm | IP65 |
| 12V 30Ah | 189*122*(170*172)mm | IP65 |
| 12V 50Ah | 197*165*(170*190)mm | IP65 |
| 12V 80Ah | 258mm*168mm*215mm | IP65 |
| 12V 100Ah | 329*172mm*213mm(223mm) | IP65 |
| 12V 150Ah | 450(482)*168*240*(248)mm | IP65 |
| 12V 200Ah | 500*(522)*240*215*(240)mm | IP65 |
| 12V 300Ah | 495*(520)*268*220*(245)mm | IP65 |
| 12V 400Ah | 483*170*240 | IP65 |
| 12V 350Ah | 495*(520)*235*220*(245) | IP65 |
Applications of 12V 200Ah Lifepo4 battery pack
Electric Propelling Applications
Engine Starting Battery
Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
Intellectual Robots
Power tools: electric drills, toys
Energy Storage
Solar-Wind Power System
City Grid (On/Off)
Back-up System and UPS
Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment
Other Applications
Security and Electronics, Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
Yes,we can supply samples .
2: Do you provide after-sales serive?
Yes,the warranty is 13 months, if any quality problems on our side in this period, we can send new one as replacement.
3: Do you accept OEM/ODM?
Yes,it is avaliable.
4:Are you battery real capacity?
All of our battery cells with Grade A,100% new and real capacity.
