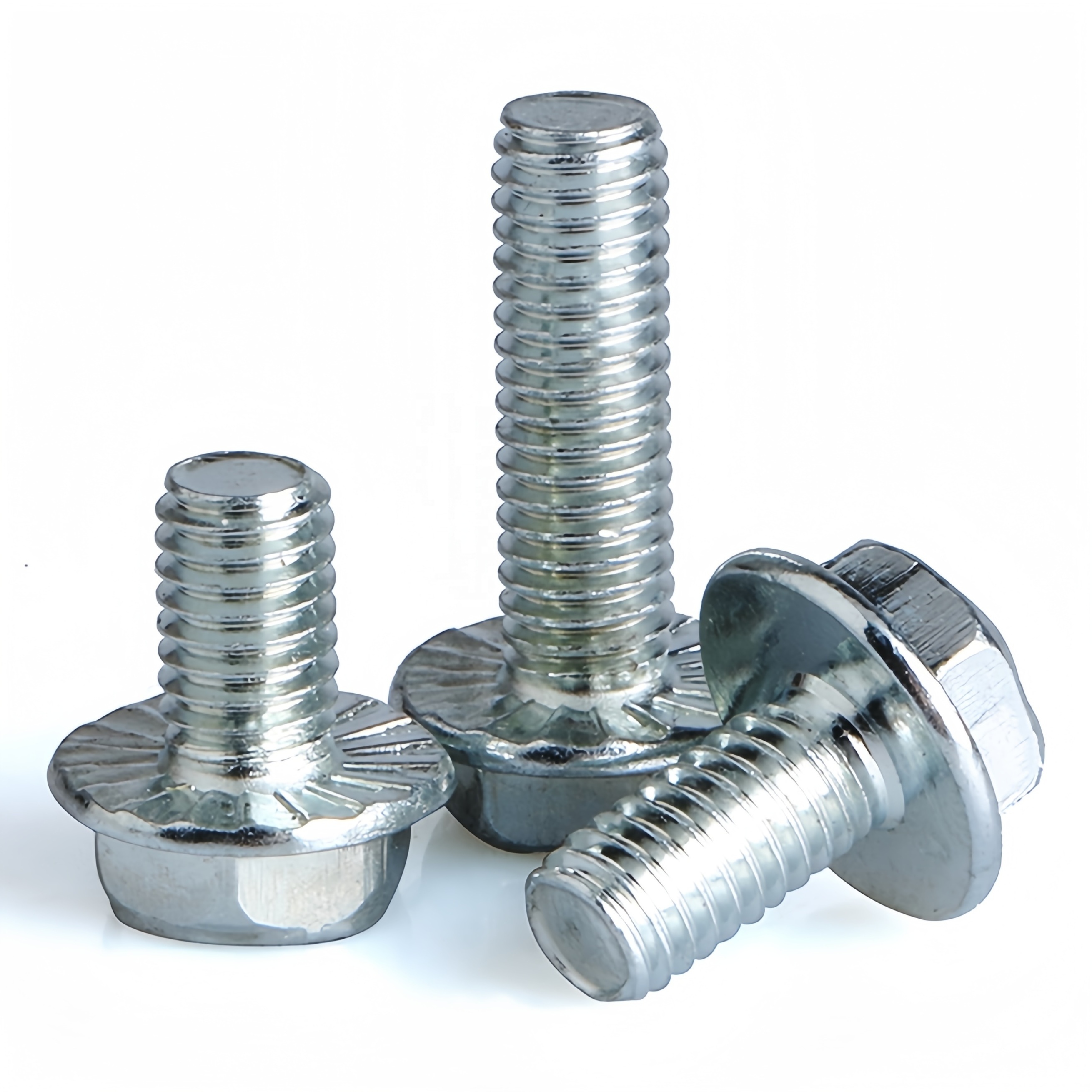

M6 M7 M8 M10 Zinc Plated Din6921 S-S 304 316 Aluminum Hex Flange Bolts

M6 M7 M8 M10 Zinc Plated Din6921 S-S 304 316 Aluminum Hex Flange Bolts

FOB Reference Price: Get Latest Price

≥1000 Pieces

US $0.1

≥5000 Pieces

US $0.09

≥10000 Pieces

US $0.08

≥100000 Pieces

US $0.01

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Sokun

Model Number:: DIN 6922

Product name:: /Hexagon flange bolts with reduced shank

Grade:: 4.8/ 8.8/ 10.9/ 12.9 Ect

Surface Treatment:: Plain/black/galvanized

Quality:: Testing can be performed on request.

Packing:: Based on customer requirements

Delivery time:: Normally in 30-40 days

Tips:: According to standards or customize according to requirements

Quick Details

Finish:: ZINC, Plain

Material:: Stainless steel, Steel

Place of Origin:: Zhejiang, China

Brand Name:: Sokun

Model Number:: DIN 6922

Product name:: /Hexagon flange bolts with reduced shank

Grade:: 4.8/ 8.8/ 10.9/ 12.9 Ect

Surface Treatment:: Plain/black/galvanized

Quality:: Testing can be performed on request.

Packing:: Based on customer requirements

Delivery time:: Normally in 30-40 days

Tips:: According to standards or customize according to requirements

Product Description

Product Name:	Hexagon flange bolts with reduced shank DIN 6922 - 1983
Standard:	DIN 6922 - 1983
Material:	Carbon steel and stainless steel
Size:	Reference standards and according to customer requirements
Finished:	Zinc Plated,Hot Dip Galvanized Steel,Dacromet,Nickel Plated,Black Oxide,Plain
Delivery time:	Normally in 30-40 days.

Thread Position	External	Thread Type:	Metric [M]
Internal Driving:	/	External Driving:	Hex Flange Head
Locking Type:	Flange	Shank:	Reduced Shank
Point:	Flat Point	Mark:	As required

Nominal Length L - 30 35 40 45 50 55 60 65 70 80 90 100 110 120 130 140 150 160 180 200 Tips:seclect Nominal Length L and get Thread length .

Thread Size d

M5 ×0.8

M6 ×1

M8 ×1.25

M8 ×1

M10 ×1.5

M10 ×1.25

M10 ×1

M12 ×1.75

b	L≤125
	125<L≤200
	L>200
c	min
dc	max
ds	max
ds	min
e	min
k	max
s	max
s	min

16	18	22	22	26	26	26	30
/	/	28	28	32	32	32	36
/	/	/	/	/	/	/	/
1	1.1	1.2	1.2	1.5	1.5	1.5	1.8
11.8	14.2	18	18	22.3	22.3	22.3	26.6
5	6	8	8	10	10	10	12
4.82	5.82	7.78	7.78	9.78	9.78	9.78	11.73
8.71	10.95	14.26	14.26	16.5	16.5	16.5	17.62
5.4	6.6	8.1	8.1	9.2	9.2	9.2	11.5
8	10	13	13	15	15	15	16
7.78	9.78	12.73	12.73	14.73	14.73	14.73	15.73

Length of Thread b

Thread Size d

M12 ×1.5

M12 ×1.25

M14 ×2

M14 ×1.5

M16 ×2

M16 ×1.5

M20 ×2.5

M20 ×1.5

b	L≤125
	125<L≤200
	L>200
c	min
dc	max
ds	max
ds	min
e	min
k	max
s	max
s	min

30	30	34	34	38	38	46	46
36	36	40	40	44	44	52	52
/	/	/	/	57	57	65	65
1.8	1.8	2.1	2.1	2.4	2.4	3	3
26.6	26.6	30.5	30.5	35	35	43	43
12	12	14	14	16	16	20	20
11.73	11.73	13.73	13.73	15.73	15.73	19.67	19.67
17.62	17.62	19.86	19.86	23.15	23.15	29.87	29.87
11.5	11.5	12.8	12.8	14.4	14.4	17.1	17.1
16	16	18	18	21	21	27	27
15.73	15.73	17.73	17.73	20.67	20.67	26.67	26.67

Length of Thread b

1),Material: a)Steel, Property class (material): 8.8,10.9,12.9 Standard DIN ISO 898-1 b)Stainless steel, Property class (material): A2-70 Standard DIN 267-11
