Quick Details
-
Brand Name:
-
Saili
-
Weight:
-
780 KG
-
Dimension(L*W*H):
-
3800*1800*1600MM
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field maintenance and repair service
-
Product name:
-
Magnet inserting machine
-
Feature:
-
drilling ,gluing ,sticking
-
Material:
-
magnet,iron sheet
-
Man-Machine interface:
-
PLC system
-
Company established:
-
1996
-
Speed:
-
40-42 sheets/Min
-
Glue tank capability:
-
2L
-
Certification:
-
CE
Quick Details
-
Voltage:
-
380V/220V, customized
-
Power:
-
5KW
-
Place of Origin:
-
China
-
Brand Name:
-
Saili
-
Weight:
-
780 KG
-
Dimension(L*W*H):
-
3800*1800*1600MM
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field maintenance and repair service
-
Product name:
-
Magnet inserting machine
-
Feature:
-
drilling ,gluing ,sticking
-
Material:
-
magnet,iron sheet
-
Man-Machine interface:
-
PLC system
-
Company established:
-
1996
-
Speed:
-
40-42 sheets/Min
-
Glue tank capability:
-
2L
-
Certification:
-
CE

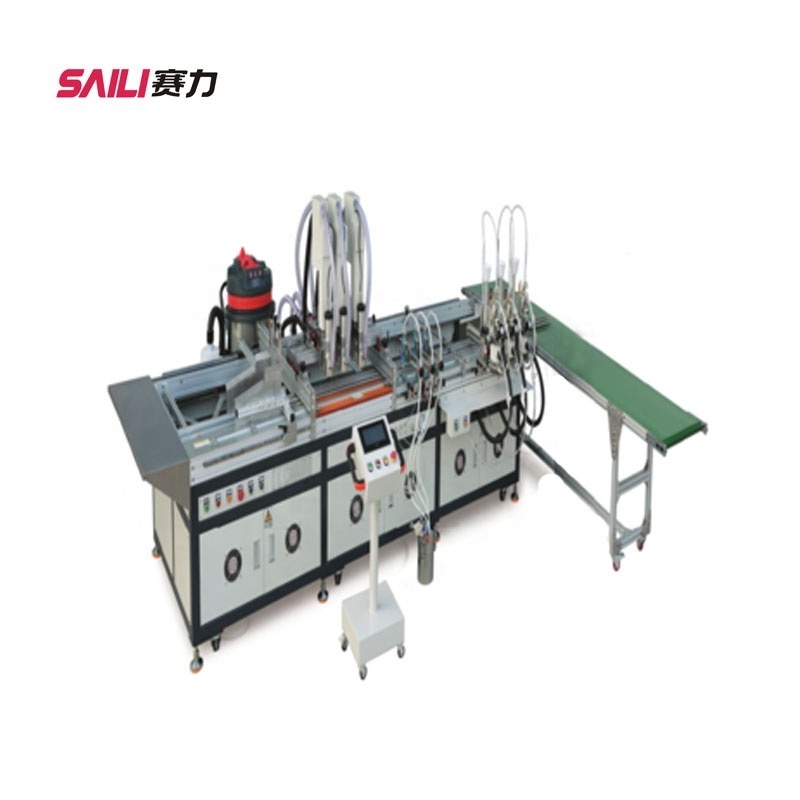

SL-9060 Automatic magnet inserting machine
Introduction : This type of equipment is suitable for the automatic production of many gift boxes,such as book boxes ,lid and base boxes,collapsible magnetic boxes.It has the functions of automatic feeding ,automatic drilling ,automatic glue dispensing and automatic magnet inserting and sticking.Instead of the traditional manual hole picking and magnet placement mode ,the output can reach 1500-1800PCS/Hour,with high efficiency ,high stability,high pass rate ,small foot print and other advantages by customers .
Technical parameters:
|
Model |
SL-9060 |
|
Cardboard size |
Max.900*450mm |
|
Cardboard size |
Min.120*90mm |
|
Cardboard thickness |
1-3mm |
|
Stacking height |
200-400mm |
|
Magnetic disc diameter |
6-20mm |
|
Air supply |
0.5-0.8MPa |
|
Machine speed |
40-42PCS /Min |
|
Positioning accuracy |
± 0.1mm |
|
Hole spacing |
Min 80mm / Max 500mm |
|
Glue tank capability |
2L |
|
Control system |
Independent R&D |
|
Programming method |
Teaching programming |
|
PLC |
XDM-60T10-E XINJIE |
|
Power |
5KW |
|
Air pressure |
0.5-0.8Mpa |
|
Machine dimension |
3800*1800*1600MM |
|
Weight |
780KGS |
|
Mold |
1 sets for magnetic and 1 sets for iron sheet |
