3.,40W water cooling laser tube
4., high quality LCD control board
5.It employs a USB port
- Product Details
- {{item.text}}
Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JX AUTO CNC stamp laser engraving machine
-
Dimension(L*W*H):
-
950*630*410mm
-
Weight (KG):
-
38 KG
-
Core Components:
-
stamp laser engraving machine
-
Mode of Operation:
-
CO2 Laser, continuous wave
-
Configuration:
-
CO2 Laser tube
-
Working speed:
-
0-500mm/s (adjustable)
-
Min. shaping character:
-
1mm*1mm
-
Power supply:
-
AC110V/220V±5% 50/60HZ
-
Total power:
-
≤200W
-
Keywords:
-
stamp laser engraving machine
-
Laser tube service life:
-
1000-1500 Hours
-
Certification:
-
CE, ISO
Quick Details
-
Engraving Area:
-
400*400mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
350mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JX AUTO CNC stamp laser engraving machine
-
Dimension(L*W*H):
-
950*630*410mm
-
Weight (KG):
-
38 KG
-
Core Components:
-
stamp laser engraving machine
-
Mode of Operation:
-
CO2 Laser, continuous wave
-
Configuration:
-
CO2 Laser tube
-
Working speed:
-
0-500mm/s (adjustable)
-
Min. shaping character:
-
1mm*1mm
-
Power supply:
-
AC110V/220V±5% 50/60HZ
-
Total power:
-
≤200W
-
Keywords:
-
stamp laser engraving machine
-
Laser tube service life:
-
1000-1500 Hours
-
Certification:
-
CE, ISO
Products Description

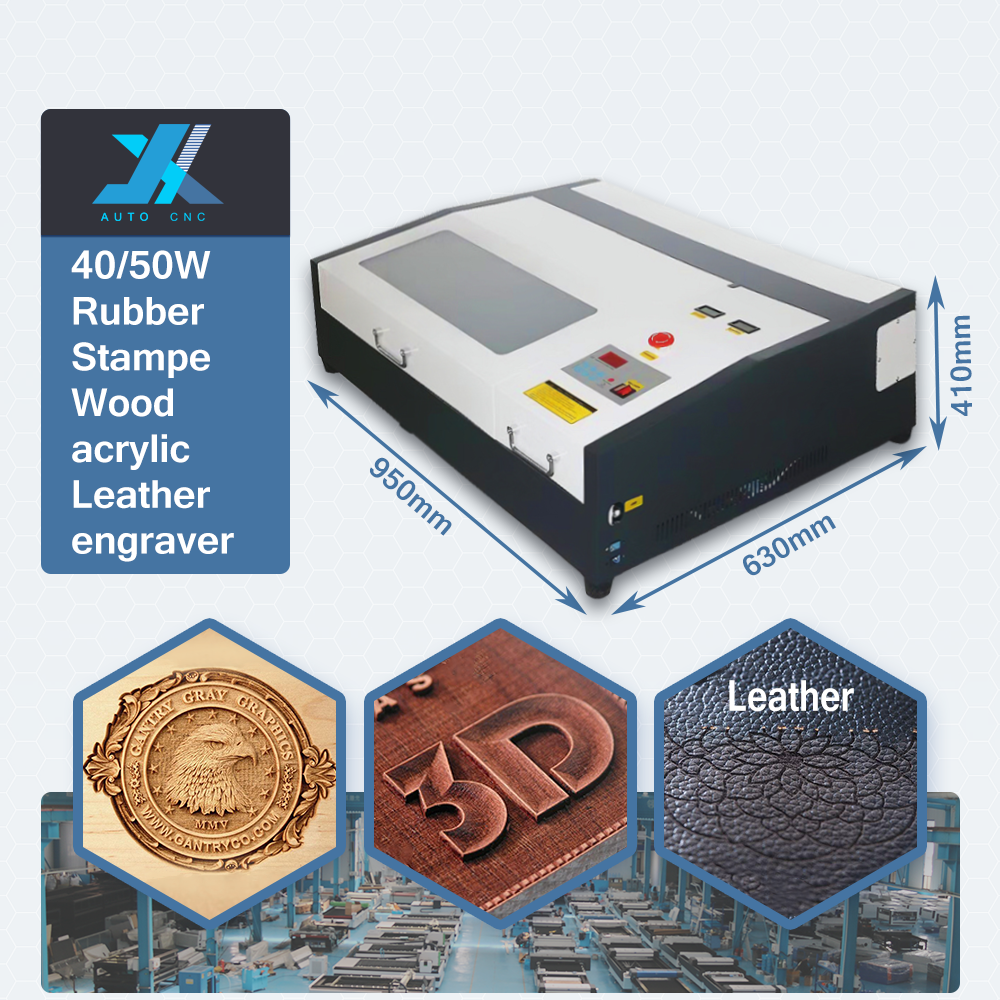

4040 Ltampe Laser Engraver
1.working size 400*400mm
2..integrates the newest light
EMF/JPG/PLT/WMF. CorelDraw has the ability of both NewlySeal and NewlyDraw and so it can be employed in both carving and cutting works. All laser engraving machines can not carve / cut metal or ceramics.
Note: This engraving machine can't carve metals without alumina coatings. It can only cut non-metallic materials with a thickness of 3 mm and below.
Product Paramenters
|
Model
|
JX-4040
|
|
Power supply
|
AC110V/220V±5% 50/60HZ
|
|
Total power
|
≤200W
|
|
Laser type
|
CO2
|
|
Laser power
|
50W
|
|
Laser tube service life
|
1000-1500 Hours
|
|
Tube trigger Volt
|
20KV
|
|
Tube operating Volt
|
15KV
|
|
Current
|
0~22mA
|
|
Working area
|
400*400mm*50mm
|
|
Worktable material
|
Aluminum platform
|
|
Working speed
|
0-500mm/s (adjustable)
|
|
Location precision
|
±0.1mm
|
|
Min. shaping character
|
1mm*1mm
|
|
Motor system
|
Stepper motor system
|
|
Cooling way
|
Water cooling
|
|
Operating temperature
|
5-40(℃)
|
|
Humidity
|
0-95%(RH)
|
|
Lighting system
|
LED light with high-brightness
|
|
Certification
|
CE, ISO
|
|
Color
|
Blue and white color optional
|
|
Accessory bag
|
Manual book, Software CD, USB line, Power line, USB-Key
|
|
Machine parts
|
Water pump, Smoke pipe, Exhaust fan
|
|
Support software and Graphic Format
|
Core LASER/ Laser DRW/ Win seal XP/ Core DRAW X4 SP2 can identify
|
Details Images
CO2 Laser Tube
The sealed-off 40W laser tube adopts advanced CO2 technology with increased power and fast operating speeds. And the high-pressure discharge excites a high-concentration CO2 gas to produce a laser with a 10.6um wavelength for effectively engraving and cutting.
Premium Laser Head
The high-precision laser head, with high quality, reliable performance, and durability, improves the engraving precision and
performance. Its stable laser beams significantly improve your engraving
efficiency for various materials.
Accurate LCD Panel
Temperature display and laser power display make it easier to observe the running condition to correct any engraving or cutting
problems. The engraving machine comes with a laser switch, emergency stop switch, power switch, lighting switch for hassle-free
operation.
USB Connectivity
The laser engraving machine employs a USB port for convenient connection to desktop or laptop, which obtains a more precise and
better control of engraving.
Effective Heat Dissipation
The integrated fan improves ventilation performance, lowers noise levels, and increases portability. A pipeline
exhaust fan and air vents
are included, which reduce all
electronic components' temperature,
thus extending its service life.
Sample & Application
