- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
KACON
-
Model Number:
-
HRF-M82YB
-
IP level:
-
IP54
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KACON
-
Model Number:
-
HRF-M82YB
-
IP level:
-
IP54
Product Overview

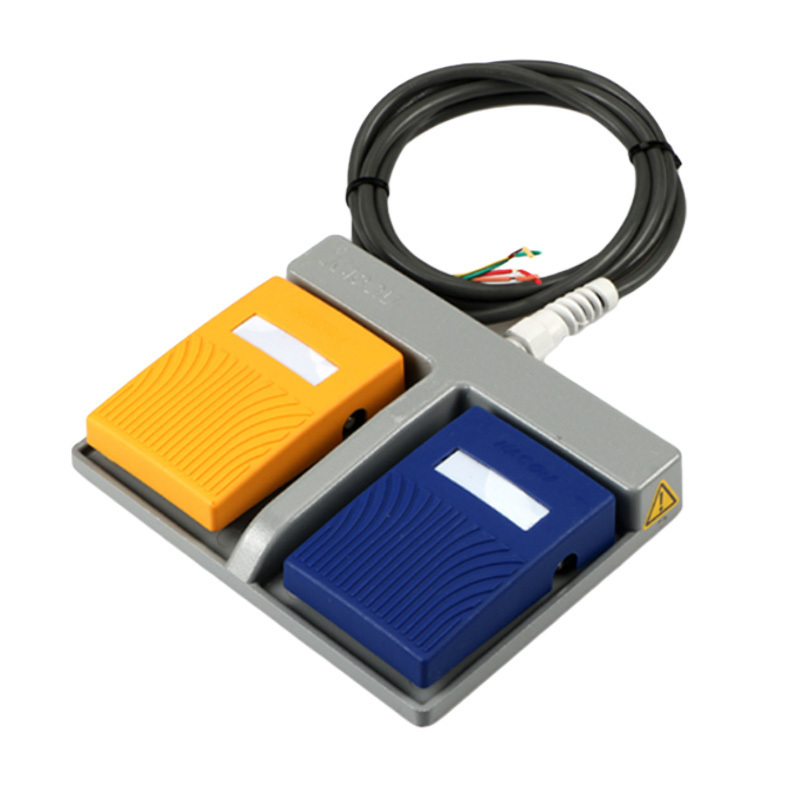

Medical waterproof dual foot switch
Flame retardant reinforced engineering plastic shell with high structural strength and aging resistance Chemical resistance, impact resistance, and chemical resistance.
Equipped with an embedded marker board for convenient purpose and function codes
Marked and resistant to detachment and discoloration.
Long term operation with fatigue free rear step construction.
FEATURES AT A GLANCE
Reset type 1a
Flame retardant reinforced engineering plastic nylon
Mechanical life over 1 million times
Electrical life over 100000 times
Protection level IP68
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Material
|
Engineering plastic ABS
|
|
2
|
contact resistance
|
Below 50m Ω (first time)
|
|
3
|
insulation resistance
|
Test for 500VDC above 100M Ω
|
|
4
|
dielectric withstand voltage
|
2000VAC time 1 minute
|
|
5
|
mechanical life
|
More than 1 million times
|
|
6
|
Electrical life
|
More than 100000 times
|
|
7
|
ambient temperature
|
-25℃~+70℃(No condensation or freezing)
|
|
8
|
ambient humidity
|
45%~85%RH
|
|
9
|
protection grade
|
IP68
|
|
10
|
Rated current
|
3A 250VAC (resistive)
|
