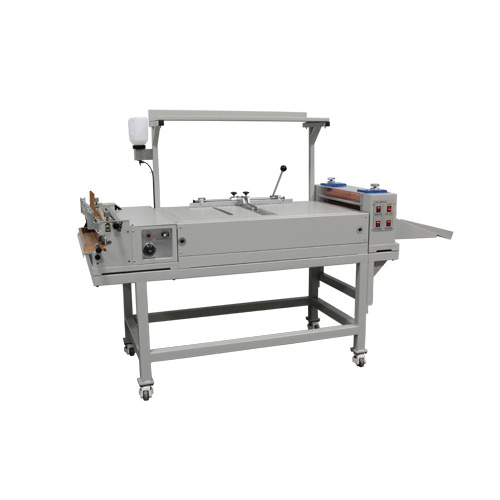

WD-SK950L Semi Automatic A3+ Hard Cover Maker

Model

SK950L

The size of operation desk

980×466mm

Max. size of product

A3+ landscape size

Gluing width

500 mm

Rolling width

500 mm

Power Supply

220V/110V (Optional)

Machine Weight

265kg

Machine dimensions

1710×850×1450mm

Standard accessory

8mm paper guide - Long

Optional Spine Guides

long 3mm spine guide short 3mm spine guide
long 8mm spine guide short 8mm spine guide
long 10mm spine guide short 10mm spine guide

Hot melt gluing           Auto water replenishing

Electric edge folder S oft light table

Center position           Suction assistance Rolling press

SK950L Hard cover maker is a case making system which features hot-melt gluing, suction positioning, edge folding and rolling pressing multi-functions in one machine.

It is designed according to the case making process and operating habits, it is a complete line of making mass production hard cover. It makes the case making more convenient, standard, normative, accurate and fast.

500mm gluing and pressing width, Max. size of hard cover up to A3 landscape size.

Copper alloy made Glue application roller and Glue tray. Independent homo-thermal
impermeable heater unit.
Automatic water replenishing, step less glue application speed.
Micro-thermal animal glue drying quickly, no deformation and lower cost.
Animal glue and water-based white latex are both available.

Soft bright table with center position.
Large air quantity suction assistance position.
Flexible and fast to change the different width of spine guides.
Antidromic electric edge folding operate.
Adjustable rolling press pressure.
Soft rubber roller and steel roller makes the pressure uniform and constant.
Stack the cover papers and cardboard on the Upper table.
The base of the machine is equipped with high load bearing Foot-master casters, which is convenient for moving the machine, level adjustment and rising fixed.
