Double seal ring design to protect the performance of glue more effectively
Pressure monitoring and pressure protection system, real-time monitoring of the pressure value in the pipe and provide
overpressure protection.
Intelligent production connection precise calculation of glue application amount and real-time online detection function of glue
application amount
Shortage of glue alarm to prevent glue emptying and shortage of glue in the production line
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Gluexpert
-
Dimension(L*W*H):
-
1500*700*1700
-
Weight:
-
450 KG
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Warranty of core components:
-
1.5 Year
-
Voltage:
-
110V 220V 380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Gluexpert
-
Dimension(L*W*H):
-
1500*700*1700
-
Weight:
-
450 KG
-
Marketing Type:
-
Ordinary Product
Product Overview

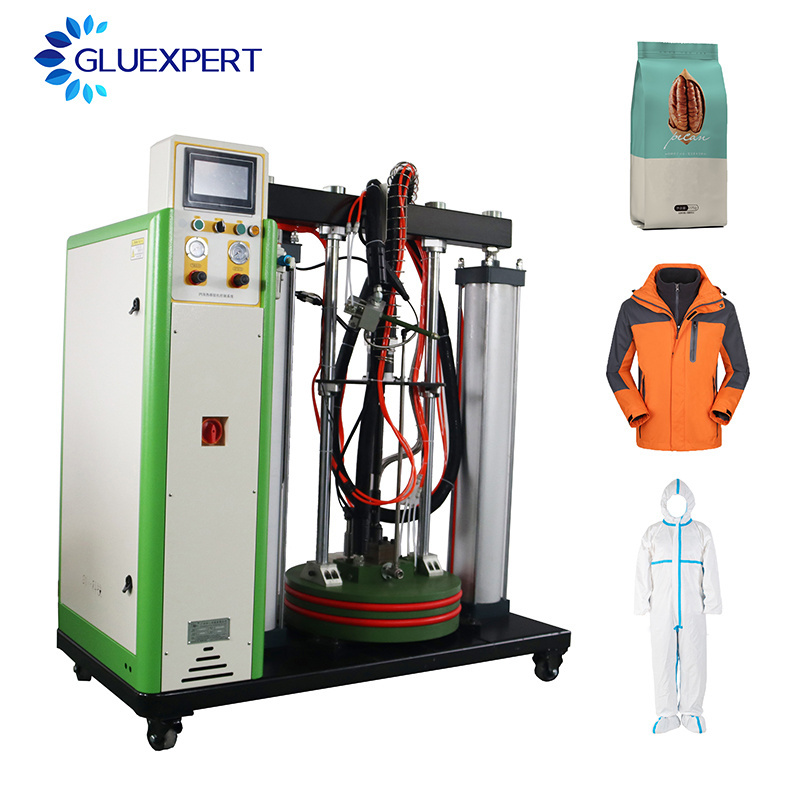

JBPURHP-55 Hot melt glue machine
JBPURHP-55 glue machine is designed for hot melt glue in 200L or 55 gallon drums. The heat transfer design of the platen makes the glue in contact with the platen part melt, while the other adhesive in the drum remains solid to protect the original performance of the glue.The product is widely used in the following industries: Flexible packaging lamination, Textile lamination,Woodworking cladding, Automotive and home appliance assembly, etc.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Type of system
|
Metering gear pumps
|
|
2
|
Drum Diameter
|
571mm(22.5in)
|
|
3
|
Maximum Pump rate
|
200Kg/hr(440ib/hr
|
|
4
|
Number of hose
|
2 standard ( up to 6 additional)
|
|
5
|
Maxmum working hydraulic pressure
|
200 bar (3000 psi)
|
|
6
|
Operating temp range
|
20 to 200 C (68-392 F)
|
|
7
|
Temperature sensor
|
Pt100/K/J/E
|
|
8
|
Electical service
|
220V/380V
|
|
9
|
Power capacity
|
22000a//36000 watts
|
|
10
|
Weight(empty)
|
450Kg
|
|
11
|
Melter Dimensions (W x H x D)
|
70mm x 2800mm x 1500mm(27.56 x 110.24 x 59.06in)
|
Successful Project
Textile
Woodworking
Flexible packaging
Shoe material industry
Home appliance assembly
Automotive interior bonding
SIMILAR PRODUCTS
FAQ
Q1：The name of this device
A1：PUR hot melt glue machine or single component glue machine
Q2: What industries are they used in
A2：Flexible packaging textile automotive woodworking electronics appliance assembly
Q3：What equipment is it used with
A3：Flexible packaging Solvent-free laminating machine, textile laminating machine woodworking wrapping machine
Q2: What industries are they used in
A2：Flexible packaging textile automotive woodworking electronics appliance assembly
Q3：What equipment is it used with
A3：Flexible packaging Solvent-free laminating machine, textile laminating machine woodworking wrapping machine
