High Sensitivity Needle Detector Detecting Textiles, Clothes, Blankets, Socks, Stuffed Toys Broken Needle and Metal Detector

High Sensitivity Needle Detector Detecting Textiles, Clothes, Blankets, Socks, Stuffed Toys Broken Needle and Metal Detector

FOB Reference Price: Get Latest Price

≥1 Sets

US $1800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Torzn

Model Number:: ND-600

Product name:: Conveyor Needle Detector for Clothing

Application:: Clothing, baby products, textiles

Usage:: Detecting clothing

Function:: Detect broken needles

Keyword:: Conveyor Needle Detector for Clothing

Alarm Mode:: Audible and visual alarm/ Belt stop or return

Sensitivity:: Iron ball 0.8mm

Power:: AC200-240V 50-60HZ

Feature:: Automatic detecting

Detecting height:: 100 mm (can be customized)

Quick Details

Warranty:: 1 year

Type:: AEC500C

Place of Origin:: Shanghai, China

Brand Name:: Torzn

Model Number:: ND-600

Product name:: Conveyor Needle Detector for Clothing

Application:: Clothing, baby products, textiles

Usage:: Detecting clothing

Function:: Detect broken needles

Keyword:: Conveyor Needle Detector for Clothing

Alarm Mode:: Audible and visual alarm/ Belt stop or return

Sensitivity:: Iron ball 0.8mm

Power:: AC200-240V 50-60HZ

Feature:: Automatic detecting

Detecting height:: 100 mm (can be customized)

Product Overview

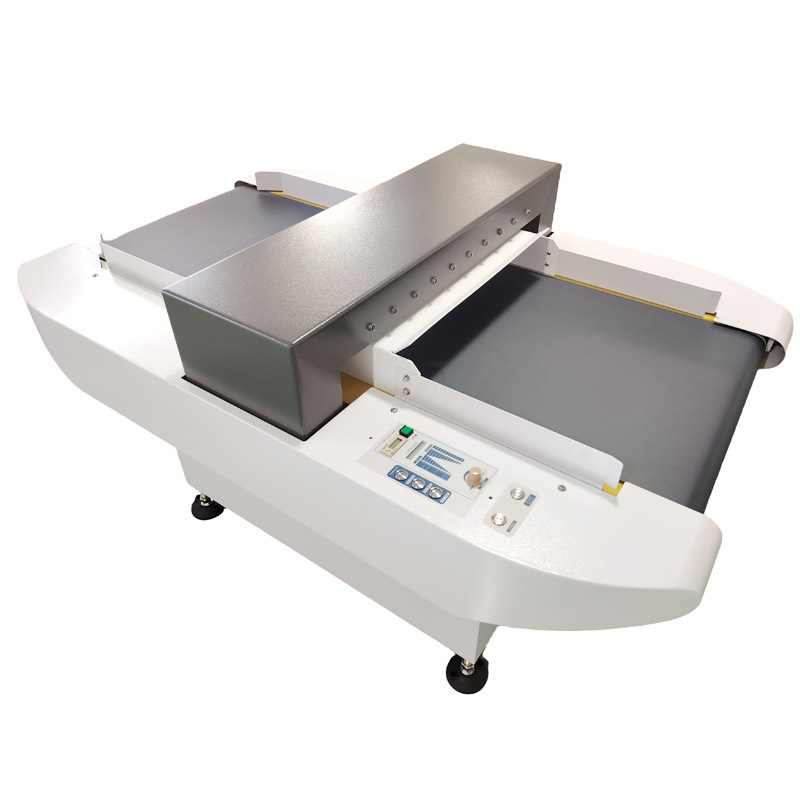

Needle Detector for Clothing Textiles

Needle detector is applied widely in toys, clothing, textiles, footwear, non-woven fabrics, food, polyester wadding, cloth and other industries to detect broken needle, wire and other iron, which inclusions or lost in raw materials or products. With easy operation and indicate function. help you find the metal impurities easily. Conveyor needle detector and non power needle detector are optional. As the product dimension and characteristic. We will provide suitable solution.

FEATURES AT A GLANCE

1. With the latest chip, it has high performance, reliability, sensitivity and anti-interference ability;

2. Digital signal processing (DSP) is used for data acquisition and motor control, it’s highly intelligent.

3. It’s simple and easy to use, the data can be processed and stored automatically, the boot can keep the shutdown settings each time.

4. Self developed high-frequency switching power supply, strong adaptability.

5. It adopts integrated design and optimized product design. reducing the number of
components, using computer to replace complex electronic components so that failure rate decreased exponentially;

6. The timing sequence of the motor is precisely controlled by the computer to extend the service life of the motor.

7. It can count the number of qualified, defective and total number exactly.

8. It can automatic shutdown after ten minutes without operation.

Function button

Photoelectric sensor

Position indicator

PRODUCT SPECIFICATIONS

Model	ND-600
Detection Tower	Single tower Double tower
Detection Height(mm)	100 mm
Detection Width(mm)	600 mm
Effective Detecting Height(mm)	100 mm
Power supply	1P AC220V 50/60HZ
Rate(W)	200
Detective capability of Iron Ball(mm)	Fe 0.8 mm
Sensitivity Adjustment	Level adjustment
Conveyor Speed(m/min)	32
Detection	Magnet
Alarm	Automatic buzzer and alarm indicator light,the conveyor rewinding function

Application Scope

Anti interference needle detector is mainly used in toys, clothing, textiles, footwear, food and other industries to detect broken
needle, wire and other iron, which inclusions or lost in raw materials or products.

SIMILAR PRODUCTS

Company Introduction

Unique engineering expertise, combined with practical industry knowledge in your sector. R&D resources and commitment to support both continuous improvement and major innovation. Solutions include consultancy and project management, complete packing lines, distribution and topping systems, inspection system, checkweighers, weigh-price-labellers, carton sealing, automatic strapping machine and pick-and -place system.

Packing&Shipping

FAQ

Q1: Are you a manufacturer or a trading company? A: We are manufacturer. We have professional factory in Shanghai, China, which produce all kinds of metal detector, checkweigher, needle detector, metal separator and so on. Q2. Do you sell the accessories for Products ? A: Yes. We can provide spare parts for customer whose machines have problems in lowest cost. Q3. How about the packing for product? Is it easy damaged during transportation? A: We use wood case for package which is strong enough for transportation. Q4. How about your after-sales policy? A: Customer first is our principle. All of our products have warranty one year. We give necessary video guidance for daily problems. Our technical engineer can support overseas service if machine faces massive problems. Q5. Do you accept customer Logo and customized ? A: We provide customization on machine and logo.
