- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
LDM01
-
Car Make:
-
Electric car
-
Warranty:
-
12 Months
-
Product name:
-
Electric Motor Rear Axle
-
Application:
-
Transmission System
-
Material:
-
Steel
-
OEM:
-
Avaible
-
Speed ratio:
-
10.86/ 17.75/ 19.75/ 26/43.5
-
Port:
-
Shenzhen/Zhuhai
-
Wheel Track:
-
372mm
-
Brake system:
-
Automatic electromagnetic brake
-
Wheel type:
-
Rubber
-
Controller:
-
Available
Quick Details
-
OE NO.:
-
standard
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
UCOM
-
Model Number:
-
LDM01
-
Car Make:
-
Electric car
-
Warranty:
-
12 Months
-
Product name:
-
Electric Motor Rear Axle
-
Application:
-
Transmission System
-
Material:
-
Steel
-
OEM:
-
Avaible
-
Speed ratio:
-
10.86/ 17.75/ 19.75/ 26/43.5
-
Port:
-
Shenzhen/Zhuhai
-
Wheel Track:
-
372mm
-
Brake system:
-
Automatic electromagnetic brake
-
Wheel type:
-
Rubber
-
Controller:
-
Available
LDM01 /LDM02Series Transaxles
| Model NO. | LDM01-283-300 | LD01-355-500 | LD01-355-600 |
| Rate voltage | DC24V/36V/48V | DC24V/36V/48V | DC24V/36V/48 |
| Rate power | 300W | 500W | 600W |
| Gear Ratio | 1:19.75 | 1:19.75 | 1:19.75 |
| Free output RPM | 220RPM | 200 RPM | 230 RPM |
| Max output torque | 16Nm | 28Nm | 31Nm |
| Motor Diameter | 87mm | 87mm | 87mm |
| Brake torque | 4Nm | 4Nm | 4Nm |
| Motor Efficiency | 83% | 85 % | 85 % |
| Noise(db)(A) | ≤60 | ≤60 | ≤65 |

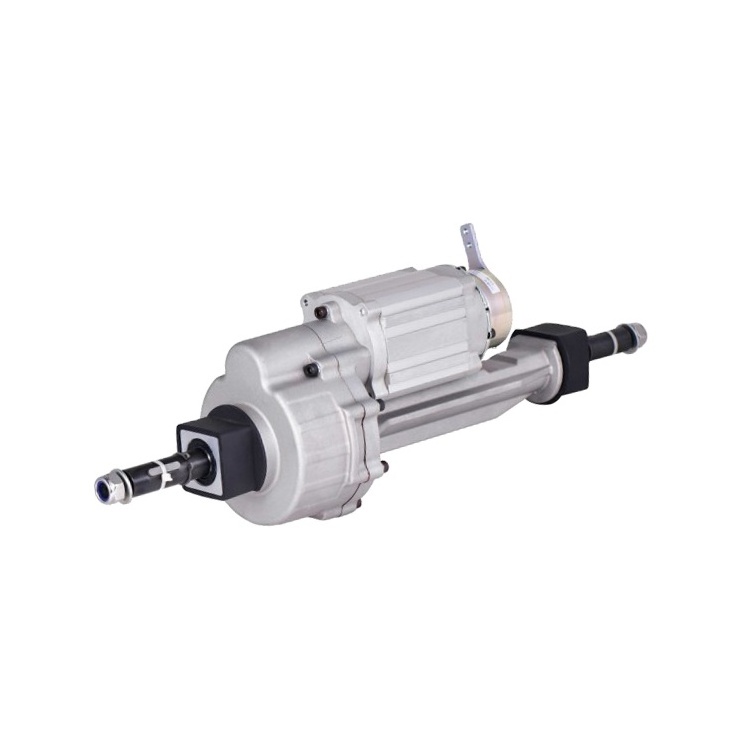

Electric Drive Axle is composed of a permanent magnet DC motor and a differential. It has the characteristics of small turning radius and high sensitivity .
Suitable for three-wheel and four-wheel electric vehicles that require rear drive. Specially designed for scooters, children's amusement vehicles, cleaning vehicles, dust carts, electric carts, and mobile trucks ,etc. Models can be selected and customized according to the requirements .
