Quick Details
-
Market Segement:
-
Urban construction muck transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
100
-
Drive Wheel:
-
10x6
-
After-sales Service Provided:
-
Video technical support, Online support
-
Brand Name:
-
sinotruk howo
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
11900x2500x3500
-
Cargo Tank Dimension:
-
details
-
Color::
-
Red, Yewllo, Blue, Green, White
-
Capacity (Load):
-
61 - 70t
Quick Details
-
Condition:
-
New
-
Horsepower:
-
351 - 450hp
-
Emission Standard:
-
Euro 4
-
Market Segement:
-
Urban construction muck transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
100
-
Drive Wheel:
-
10x6
-
After-sales Service Provided:
-
Video technical support, Online support
-
Brand Name:
-
sinotruk howo
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
11900x2500x3500
-
Cargo Tank Dimension:
-
details
-
Color::
-
Red, Yewllo, Blue, Green, White
-
Capacity (Load):
-
61 - 70t
|

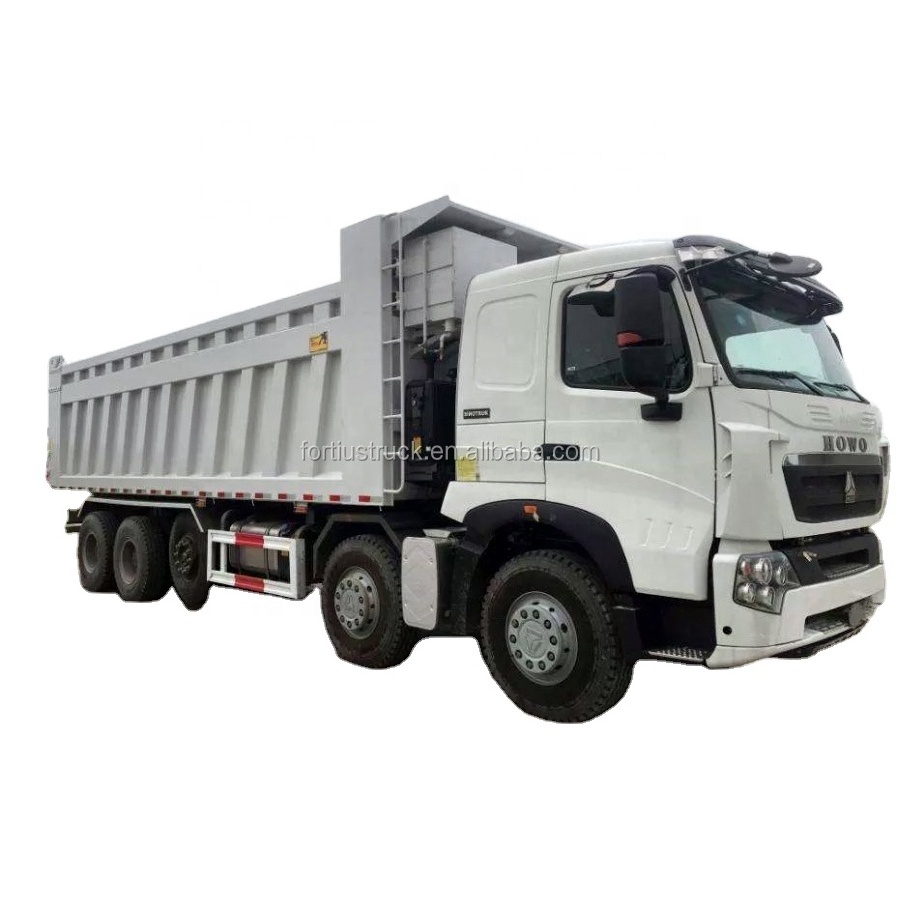

Euro 4 Brand new 40 cubic Dump truck 10x4 420hp howo a7 model Sinotruk 16 wheeler SINOTRUK HOWO-A7 10x4 DUMP TRUCK SPECIFICATIONS |
||||
|
Body |
Carriage Internal Dimensions(mm) |
8500x2300x1600 |
||
|
Cubage (m3) |
32 |
|||
|
Steel thickness of Carriage(mm) |
Floor:8mm/Side:6mm |
|||
|
Steel |
Q235 |
|||
|
Hydraulic Lift of Carriage |
Front Lift |
|||
|
Weight in kg |
Kerb weight (Kg) |
15880 |
||
|
Gross vehicle weight (Kg) |
45000 |
|||
|
Dimension ( mm )
|
Dimensions(mm) |
Length(mm) |
11345 |
|
|
Width(mm) |
2550 |
|||
|
Height(mm) |
3550 |
|||
|
Wheel base (mm) |
1800+4600+1350 |
|||
|
Performance |
Maximum driving speed (km/h) |
75 |
||
|
Fuel consumption (1/100 km) |
38 |
|||
|
Cab |
Model |
SINOTRUK A7-G High-floor High-roof Cab Double bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,right driving,air conditioner |
||
|
Engine |
Model |
WD615.47 ( Euro 2 ) |
||
|
Type |
6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection |
|||
|
Horsepower |
371 |
|||
|
Maximum output Kw/r/min |
273/2200 |
|||
|
Maximum torque N.m/r/min |
1460/1300-1600 |
|||
|
Bore x Stroke |
126x130mm |
|||
|
Valve |
2 |
|||
|
Displacement |
9.726L |
|||
|
Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 71 ℃ opening begin, Rigid fan |
||||
|
Transmission |
SINOTRUK HW19710 transmission ,10 forward and 2 reverse |
|||
|
Clutch |
SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance |
|||
|
Steering |
ZF8098 Steering Gear Box ,hydraulic steering with power assistance.(Right hand driving) |
|||
|
Front Axle |
SINOTRUK HF9*2 Front Axle,new 9*2-ton front axles of equipped with drum brakes. |
|||
|
Rear Axles |
SINOTRUK HC16*2 Heavy reduction drive axle and one axle liftable function,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.8;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers. |
|||
|
Brake System |
Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating on rear wheels Water leaking system. |
|||
|
Wheels & Tyres |
Rims:10 hole-steel ;Tyres:12.00R20*17 radial tyre with 1 Spare tire. |
|||
|
Electrics |
Operating voltage:24V,negative grounded Starter:24V,7.5 Kw Alternator:3-phase,28V,1500 W Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light |
|||
|
Oil Tank |
Square type-300L Aluminum alloy fuel tank |
|||
ZZ3317N4667N1
1. We will do quality test from the production of each trailer part to the finish of the whole truck.
2. We have an experienced and technological team to customize the best products.
3. Spare Parts Supply:
We have our own spear parts departments, have strong production and distribution capability. We can satisfy your demand within 2-7 days. We always do our best to solve the problems, and put our customers' interests in the first place. And We can Supply Spare Parts For Many Brands, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.
Q: How do you ensure the quality of product?
A: Our Factory is standard production workship, got ISO CCC BV Certification,our workers are well trained. Our very product under goes a scrutinizing inspection process.
Q:Can you satisfy my special requirement?
A:Definitely! We are located in manufacturer and we have strong producing capacity and R&D capacity!
Q: How about the delivery time?
A: for stock trucks, we can delivery within 7 days, if the trucks are placed by order, we can finish production within 45 days, if specially ordered, We always need around 60 days for production.
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck. You should reinstall in your country. Or we ship it by rack flat deck container, if the whole length of the vehicle is below 12m
Q:I want to be your agent in my country , is that ok?
A:It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.
Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?
A: We can make the tyres as your requirement to suit your country's need.
Q: how to pay for the vehicles
A : Normally, we can accept T/T or L/C at sight payment terms.
Q: Can I get whole truck spare parts after using?
A: of course, we can provide all original spare parts for our trucks
