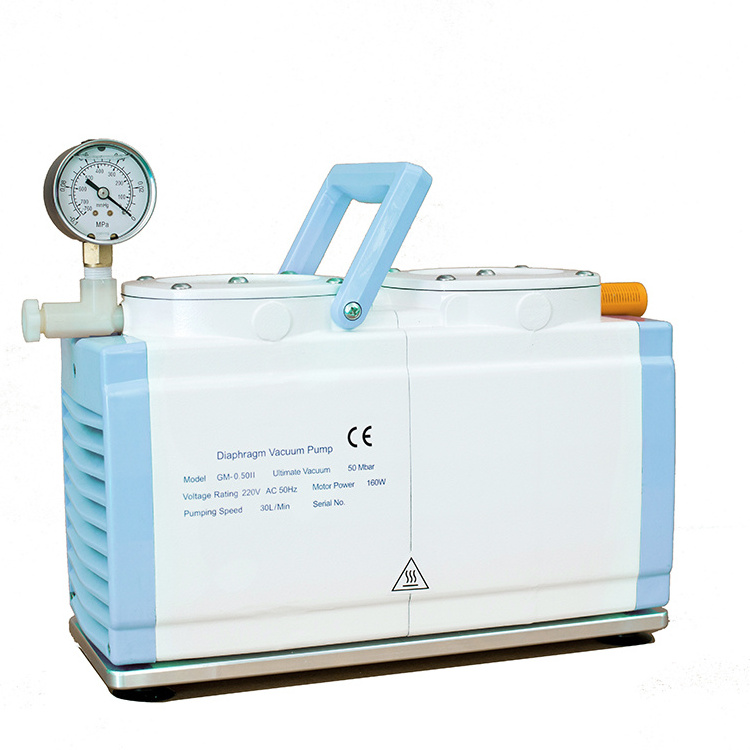

GM-0.5B 30L/min Diaphragm Vacuum Pump for Rotary Evaporator and Autoclave

GM-0.5B 30L/min Diaphragm Vacuum Pump for Rotary Evaporator and autoclave

F eatures :

1.Corrosion resistance, able to tolerance almost all strong acid (including aqua regia), strong alkali, strong oxidizer, reductant , and variety of organic solvents.

2.Withstand high and low temperatures, can be used in temperature of -190℃ to 260℃ .

3.Non-stick surface, most solid material and impurity particles can not conglutinate on the surface.

Technological competitiveness :

The internal components of our diaphragm vacuum pump series are produced by numerical control equipments which imported from Germany DMG and Korea kia. This is our unique technology competitiveness that all the same type of products made by other companies could not match . With the good appearance, stable quality, excellent performance of our products , and high quality service of our company, we believe that our diaphragm vacuum pump is the best choice for your laboratory.

GM-0.5B

Speed of evacuation: 30L/Min

Ultimate pressure vacuum: ≥0.095 Mpa

50 mbar

Voltage rating: 220Vac, 50Hz

Motor power: 160W

Inlet: Ø 6mm

Outlet (mm): Silencer

Temperature of working environment: 7-40℃

Function: Vacuum

Pump head: 2

Temp of the body: < 55℃

Dimensions ( L*B*H ): 300 * 120* 235mm

Noise level: < 60dB

Weight: 10kg

Diaphragm: NBR

Valves: NBR
