Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HSE
-
Model Number:
-
HS28JSX-385-296
-
Torque:
-
560 mN.m
-
Product Name:
-
Planetary Gearbox Motor
-
Motor type:
-
DC Motor
-
Keywords:
-
Gearbox Motor
-
Voltage:
-
24V
-
Rated Speed:
-
280 r/Min
-
Diameter:
-
28mm
-
Brush Type:
-
Carton Brush
-
Output Power:
-
5.73W
-
Application:
-
Printer,Automobile Product,Rear Box Of Automobile
-
MOQ:
-
500PCS
Quick Details
-
Speed(RPM):
-
280 r/Min
-
Continuous Current(A):
-
0.09 ~ 0.4A
-
Efficiency:
-
IE 2
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HSE
-
Model Number:
-
HS28JSX-385-296
-
Torque:
-
560 mN.m
-
Product Name:
-
Planetary Gearbox Motor
-
Motor type:
-
DC Motor
-
Keywords:
-
Gearbox Motor
-
Voltage:
-
24V
-
Rated Speed:
-
280 r/Min
-
Diameter:
-
28mm
-
Brush Type:
-
Carton Brush
-
Output Power:
-
5.73W
-
Application:
-
Printer,Automobile Product,Rear Box Of Automobile
-
MOQ:
-
500PCS

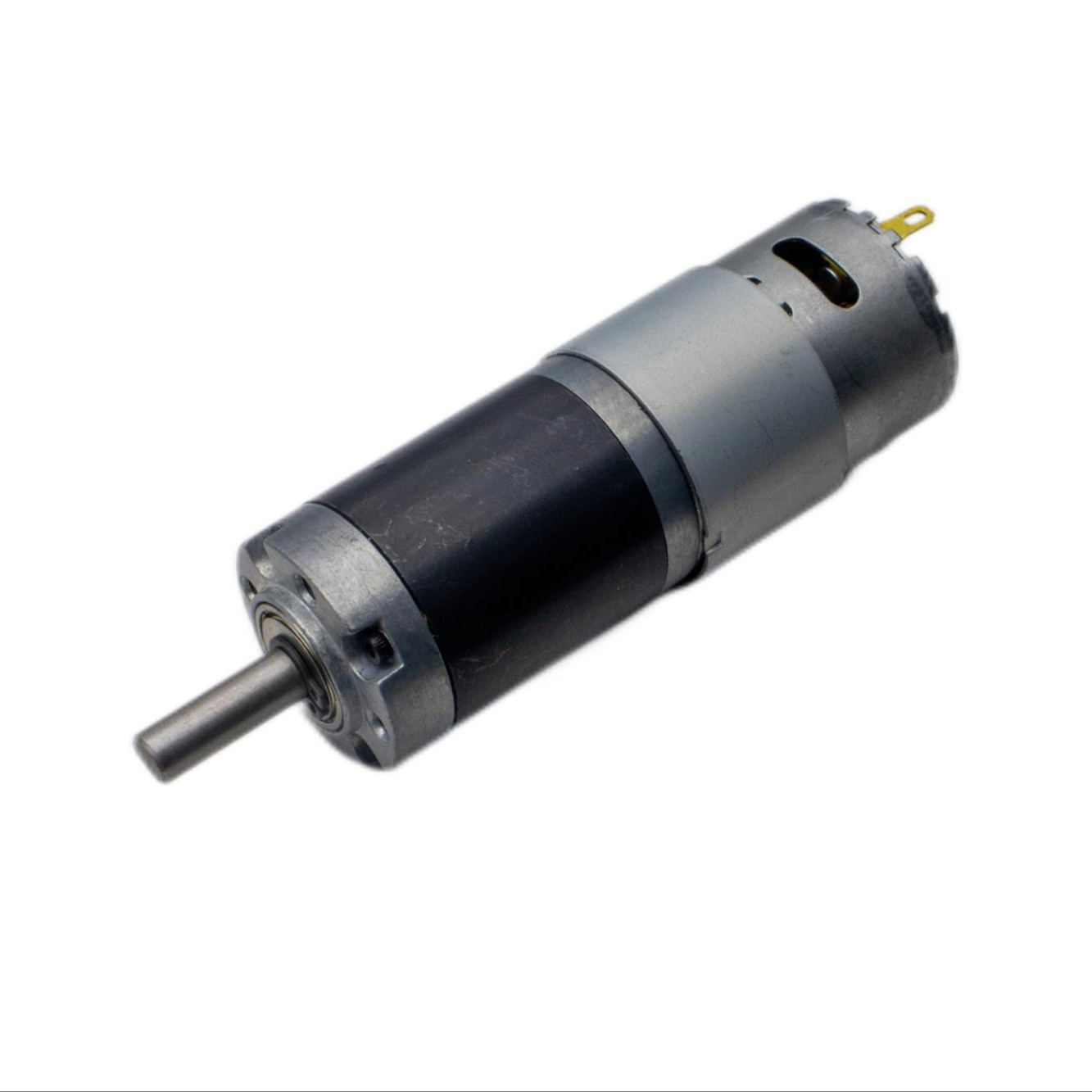

Products Description
The reducer generally converts the input low torque and high speed into high torque and low speed output through the gear group.
Planetary Gearbox Motor has two characteristics, the first is the input shaft output shaft is coaxial; Second, it has more than 3 planetary gears, which provide a larger combined torque in the change of speed, and a more stable speed transmission (there is always a good engagement of the gear).
Product Feature :
1.Widely used, economical and practical.
2.Light appearance and structure design.
3.The structure is relatively compact, the return gap is small, the precision is high, and the service life is long.
4.The price is a little expensive.
