portable laser paint removal cleaning machine 100w pulse laser cleaner for removing paint oil cleaning laser wood cleaning

portable laser paint removal cleaning machine 100w pulse laser cleaner for removing paint oil cleaning laser wood cleaning

FOB Reference Price: Get Latest Price

≥1 Pieces

US $5850

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Core Components:: laser source

Place of Origin:: Shandong, China

Brand Name:: JNCT Laser

Year:: 2024

Weight (KG):: 10.5 KG

Product name:: Fiber Laser Cleaning Machine

Application:: Surface Paint Cleaning

Function:: Cleaning Metal Rust Oil Painting

Laser Power:: 100W

Keywords:: CNC Fiber Laser Cleaning

Cleaning Process:: Non-contact Laser Cleaning

Clean way:: Non-touch Laser Cleaning

Laser source:: MAX Laser Source

Material:: Sheet Metal Case

Cleaning Type:: Handheld Laser Gun

Quick Details

Power:: 100W

Laser Type:: Fiber Laser

Laser Source Brand:: MAX

Core Components:: laser source

Place of Origin:: Shandong, China

Brand Name:: JNCT Laser

Year:: 2024

Weight (KG):: 10.5 KG

Product name:: Fiber Laser Cleaning Machine

Application:: Surface Paint Cleaning

Function:: Cleaning Metal Rust Oil Painting

Laser Power:: 100W

Keywords:: CNC Fiber Laser Cleaning

Cleaning Process:: Non-contact Laser Cleaning

Clean way:: Non-touch Laser Cleaning

Laser source:: MAX Laser Source

Material:: Sheet Metal Case

Cleaning Type:: Handheld Laser Gun

Machine Display

Backpack Pulse Laser Cleaning Machine
Model	TPC- 100W
Max average power	100W
Power Adjustment Range	10%- 100%
Output central wavelength( nm)	1064
Max pulse energy( mJ)	1.5
Pulse repetition rate( kHz)	20-200
Pulse width( ns)	180-220
Scanning Width( mm)	0-250 adjustable NEW
Relative humidity(% )	＜80
Machine Weight (kg)	10.5

2D Laser cleaning head

(1) Button control, easy to operate.
(2) Increased air outlet for cooling and blowingaway dust during cleaning
(3) The scanning width is 250 mm, and the cleaning
efficiency is high.
(4) 8 cleaning modes, which can be flexibly used in
different cleaning scenarios.
(5) The whole laser head weighs about 650 g , which is ergonomically designed and can be held for a long time. The standard length of the optical fiber cable is 3 m, which supports customization and can be extended.

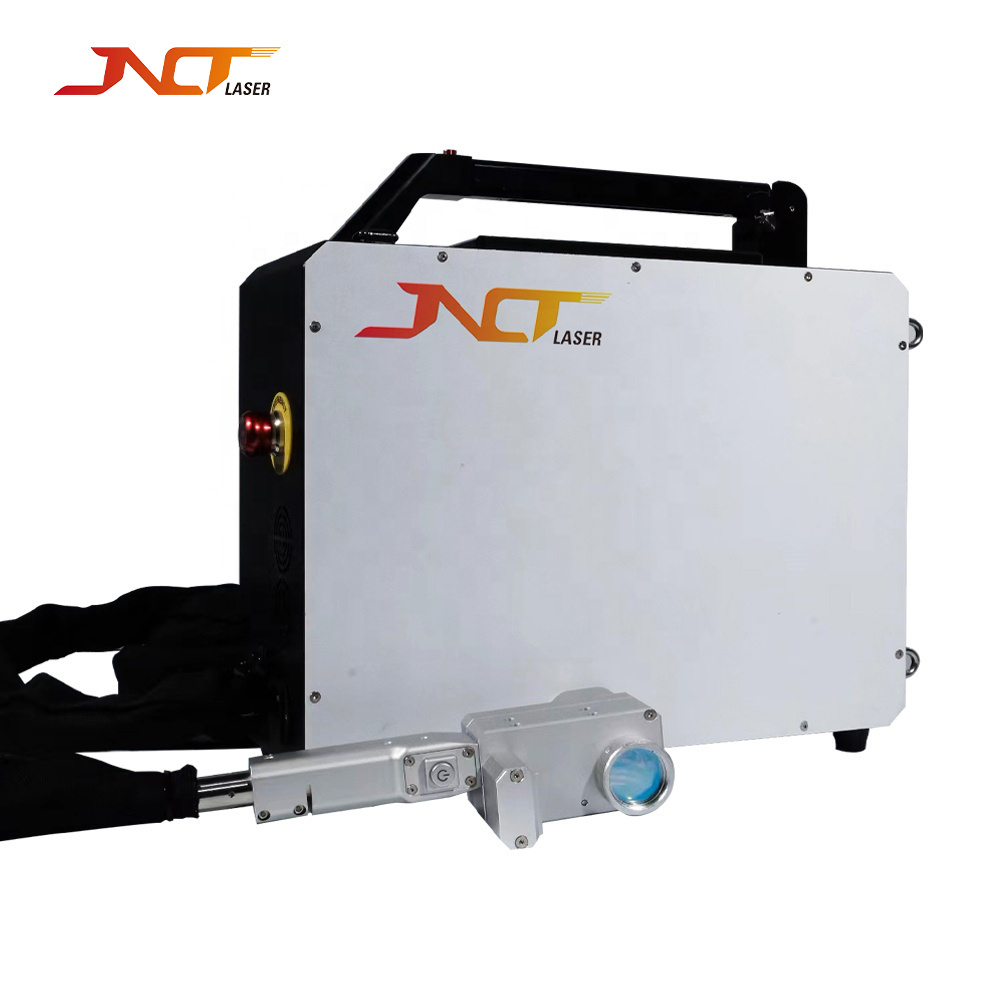

Backpack machine body

(1) Backpack style seal design, compact structure.
(2) The volume is very small, only the size of a piece of A3 paper:
(3) 380*280*152 mm The weight is only 10 . 5 kg, and it can be moved with one hand.

MAX pulse laser source

(1) The best MAX brand laser source in China, highly integrated design, efficient and clean, easy to operate, environmentally friendly and pollution- free, suitable for a variety of scenarios.
(2) Power: 100W . The pulsed light is periodic, and the pulse settling time is very short.
(3) High stability laser output. High single pulse energy. High Efficiency & High Reliability.

Control system

(1) Nanosecond laser cleaning system, large display
screen, easy to operate.
(2) Support 1 2 languages including Chinese, English, Italian. Francais, Deutsch, Roman, Japanese,
Turkey, Russian, Spanish and more.
(3) Supports 8 cleaning modes: straight line, spiral, circle, rectangle, rectangle throw and circular throw, etc.
The software is easy to operate, and the pre- stored
parameters can be directly selected, and the process is safe.

Multiple core functions: notebook size, handle and work

light combined into one, one-button transformation. It saves

space while warning the working status.

Unique and innovative backpack-style design: the

chassis is equipped with a strap buckle, and the strap can be

hung on the shoulder, which is portable and hands-free.

The handle of the chassis is made of aluminum alloy:

it has a good texture, is lightweight and durable at the same

time. The arc design saves effort when carrying it

Application

*
Quick cleaning of rust, paint, oil and oxide on metal + non- metal surfaces
*
Coating + Graffiti + Ceramics + Marble + Weld Seam cleaning + Wood cleaning
*
Car paint removal, parts cleaning and polishing
*
Stainless steel passivated, chrome plated or anodized finish
*
Remove glue and adhesive
*
Cleaning plastic injection molds, rubber molds and more.
