Quick Details
-
Rated Voltage:
-
120V to 440V by choice
-
Rated Current:
-
2A to 55A
-
Speed:
-
3000/3600RPM
-
Frequency:
-
50HZ/60HZ
-
Color Genset:
-
Red/black/yellow/blue
-
Certificate Genset:
-
CE ISO9001
-
Type Genset:
-
Open Frame
-
Product name:
-

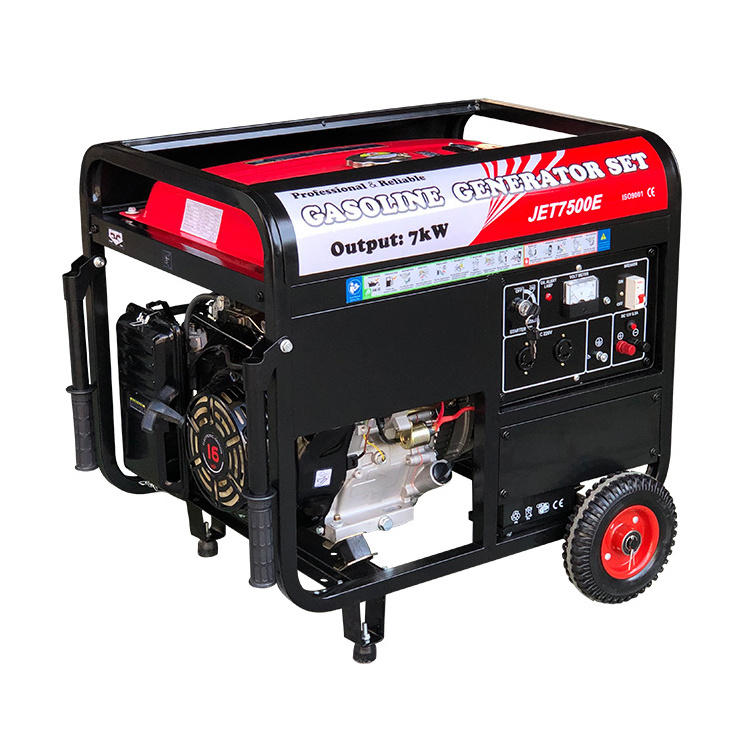

Jet series/Japan gasoline generator
-
Starting system:
-
Recoil Start/Electric Start optional
-
Function Genset:
-
Small Generator Provide Electric Power
-
Engine type:
-
Air-cooled Gasoline Engine
-
Item Genset:
-
gasoline generator
-
Fuel Genset:
-
Gasline/petrol
-
Fuel tank capacity:
-
15-25 Liters
-
Certification:
-
CE ISO
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JET POWER
-
Model Number:
-
JET7500
-
Rated Voltage:
-
120V to 440V by choice
-
Rated Current:
-
2A to 55A
-
Speed:
-
3000/3600RPM
-
Frequency:
-
50HZ/60HZ
-
Color Genset:
-
Red/black/yellow/blue
-
Certificate Genset:
-
CE ISO9001
-
Type Genset:
-
Open Frame
-
Product name:
-
Jet series/Japan gasoline generator
-
Starting system:
-
Recoil Start/Electric Start optional
-
Function Genset:
-
Small Generator Provide Electric Power
-
Engine type:
-
Air-cooled Gasoline Engine
-
Item Genset:
-
gasoline generator
-
Fuel Genset:
-
Gasline/petrol
-
Fuel tank capacity:
-
15-25 Liters
-
Certification:
-
CE ISO
Product Description
Product Application
1. With GX series,original strong commercial engine.
2. Generator set with AVR, Voltage adjust.
3. Low Oil sensor protection.
4. Cradle, Overall protection, easy move and storage.
5. Frequency, 50/60 Hz. Voltage, including, 110/150/120/220/230/240V to be optional.
6. Start, Recoil or E-start.
7.Single Phase or Three Phase, (380/400/415V)optional.
Technical Datas
|
Model
|
JET2500
|
JET3500
|
JET3800
|
JET4500
|
JET5500
|
JET6500
|
JET7500
|
JET8500
|
|||||||
|
AC Frequency
|
50Hz / 60Hz
|
50Hz / 60Hz
|
50Hz / 60Hz
|
50Hz / 60Hz
|
50Hz / 60Hz
|
50Hz / 60Hz
|
50Hz / 60Hz
|
50Hz / 60Hz
|
|||||||
|
AC Output
|
120;220;230;240 Voltage
|
120;220;230;240;
|
120;220;230;240;
|
120;220;230;240;
|
120;220;230;240;
|
120;220;230;240;
|
120;220;230;240;
|
120;220;230;240;
|
|||||||
|
Rated Power
|
1800W
|
2000W
|
2500W
|
2800W
|
4500W
|
5000W
|
6000W
|
7000W
|
|||||||
|
Max. Power
|
2000W
|
2200W
|
2800W
|
3100W
|
5000W
|
5500W
|
7000W
|
8000W
|
|||||||
|
Power Factor
|
1
|
1
|
1
|
1
|
1
|
1
|
1
|
1
|
|||||||
|
DC Output
|
12V/8.3A
|
12V/8.3A
|
12V/8.3A
|
12V/8.3A
|
12V/8.3A
|
12V/8.3A
|
12V/8.3A
|
12V/8.3A
|
|||||||
|
Engine
|
GE210
|
GE210
|
GE210
|
GE210
|
GE420
|
GE420
|
GE460
|
GE460
|
|||||||
|
Type
|
4-stroke OHV; Air-cooled; Gasoline Engine
|
|
|
|
4-stroke OHV; Air-cooled; Gasoline Engine
|
|
|
|
|||||||
|
Displacement
|
212
|
212
|
212
|
212
|
439
|
439
|
439
|
439
|
|||||||
|
Starting System
|
Recoil or Electric
|
Recoil or Electric
|
Recoil or Electric
|
Recoil or Electric
|
Recoil or Electric
|
Recoil or Electric
|
Recoil or Electric
|
Recoil or Electric
|
|||||||
|
Lubrication oil
|
SAE 10W/30
|
SAE 10W/30
|
SAE 10W/30
|
SAE 10W/30
|
SAE 10W/30
|
SAE 10W/30
|
SAE 10W/30
|
SAE 10W/30
|
|||||||
|
Oil capacity (L)
|
0.6L
|
0.6L
|
0.6L
|
0.6L
|
1.1
|
1.1
|
1.1
|
1.1
|
|||||||
|
Compression ratio
|
8.5:1
|
8.5:1
|
8.5:1
|
8.5:1
|
8.0:1
|
8.0:1
|
8.0:1
|
8.0:1
|
|||||||
|
Bore×Stroke
|
70mm×54mm
|
70mm×54mm
|
70mm×54mm
|
70mm×54mm
|
92mm×66mm
|
92mm×66mm
|
92mm×66mm
|
92mm×66mm
|
|||||||
|
Max.Output
|
7.0/3600
|
7.0/3600
|
7.0/3600
|
7.0/3600
|
15/3600
|
15/3600
|
16/3600
|
16/3600
|
|||||||
|
Fuel Consumption
|
≤360
|
≤360
|
≤360
|
≤360
|
≤390
|
≤390
|
≤390
|
≤390
|
|||||||
|
Ignition System
|
Non-contact transistorized ignition (T.C.I)
|
|
|
|
Non-contact transistorized ignition (T.C.I)
|
|
|
|
|||||||
|
Spark Plug
|
F6TC
|
F6TC
|
F6TC
|
F6TC
|
F6TC
|
F6TC
|
F6TC
|
F6TC
|
|||||||
|
Fuel Tank (l)
|
15
|
15
|
15
|
15
|
25
|
25
|
25
|
25
|
|||||||
|
Work hour (h)
|
12
|
11
|
11
|
11
|
10
|
10
|
10
|
6
|
|||||||
|
Noise Level LwA
|
67
|
67
|
67
|
67
|
74
|
74
|
74
|
74
|
|||||||
|
Dimension
|
610X440X440
|
610X440X440
|
610X440X440
|
610X440X440
|
697X525X562
|
697X525X562
|
713X541X569
|
713X541X569
|
|||||||
|
Gross Weight(kg)
|
38
|
40
|
42
|
43
|
79
|
81
|
83
|
86
|
|||||||
|
20ft Container
|
245
|
245
|
245
|
245
|
135
|
135
|
135
|
135
|
|||||||
|
40ft Container
|
590
|
590
|
590
|
590
|
292
|
292
|
280
|
280
|
|||||||
