Quick Details
-
Brand Name:
-
Simbor
-
Weight:
-
3500 KG
-
Dimension(L*W*H):
-
2460*3000
-
machine name:
-
bottle unscrambler
-
machine materail:
-
SUS304
-
machine type:
-
fully-automatic
-
PLC:
-
MISTUBISHI
-
warranty time:
-
2 years
-
certification:
-
ISO, CE, LRQA
-
Certification:
-
CE,ISO
Quick Details
-
Voltage:
-
380v/220v
-
Power:
-
3.0 kw
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Simbor
-
Weight:
-
3500 KG
-
Dimension(L*W*H):
-
2460*3000
-
machine name:
-
bottle unscrambler
-
machine materail:
-
SUS304
-
machine type:
-
fully-automatic
-
PLC:
-
MISTUBISHI
-
warranty time:
-
2 years
-
certification:
-
ISO, CE, LRQA
-
Certification:
-
CE,ISO
Applicable Bottle: 50-200ml
Applicable Bottle: 200-2000ml
Applicable Bottle: Flat Bottle
Machine Parameter:
1. Working heads : 24 (customization)
2. Max Output capacity: 10000-12000BPH (customization)
3. Air supply pressure: 1.0 MPa
4. Air consumption: 2.5 M3/ min
5. Adaptive bottle: dia.50-90, height165-290
6. Motor power: 3.0 KW
7. Auto empty bottle lifter power: 1.5KW
8. External dimension: Φ2460×3000 (customization)
9. Main Weight: 3500kg (customization)
Machine features:
1) Torque limit part is designed for the main motor reducer so as to protect the machinery if malfunctions occur
2) Two put-casts in one cycle ensure that every work location should be with one bottle, which enhances bottle output efficiency
3) The bottles are neck locked through the air conveyor so as to avoid overturn in delivery
4) Dilapidated bottles will be eliminated by a special device
5) A lock detector is equipped for alarming; when locked, the machine will automatically stop
6) A photoelectric switch is set for starting when there is no bottle and stopping when there are bottles
7) An oil pump will readily fill up the gears, bearings and the cams
8) Maintenance doors and mould replacement door provided
9) Mitsubishi, Omron and Siemens provide the main electrical components; such as transducers, PLC, photoelectric switch and relay
1. how to design bottle unscrambler?
Answer: we deisng bottle unscrambler by client's bottle sample.
2. what is the speed bottle unscrambler?
Answer: it depends on bottle shape and size.
3. How many type bottle unscrambler?
Anwer: we have three type bottle unscrambler.
a. one type: for small type bottle, bottle volume within 200ml
b. one type: for big and varitety shape bottle
c. one type: for standard beverage bottle, like wate, juice pet bottle type, high speed

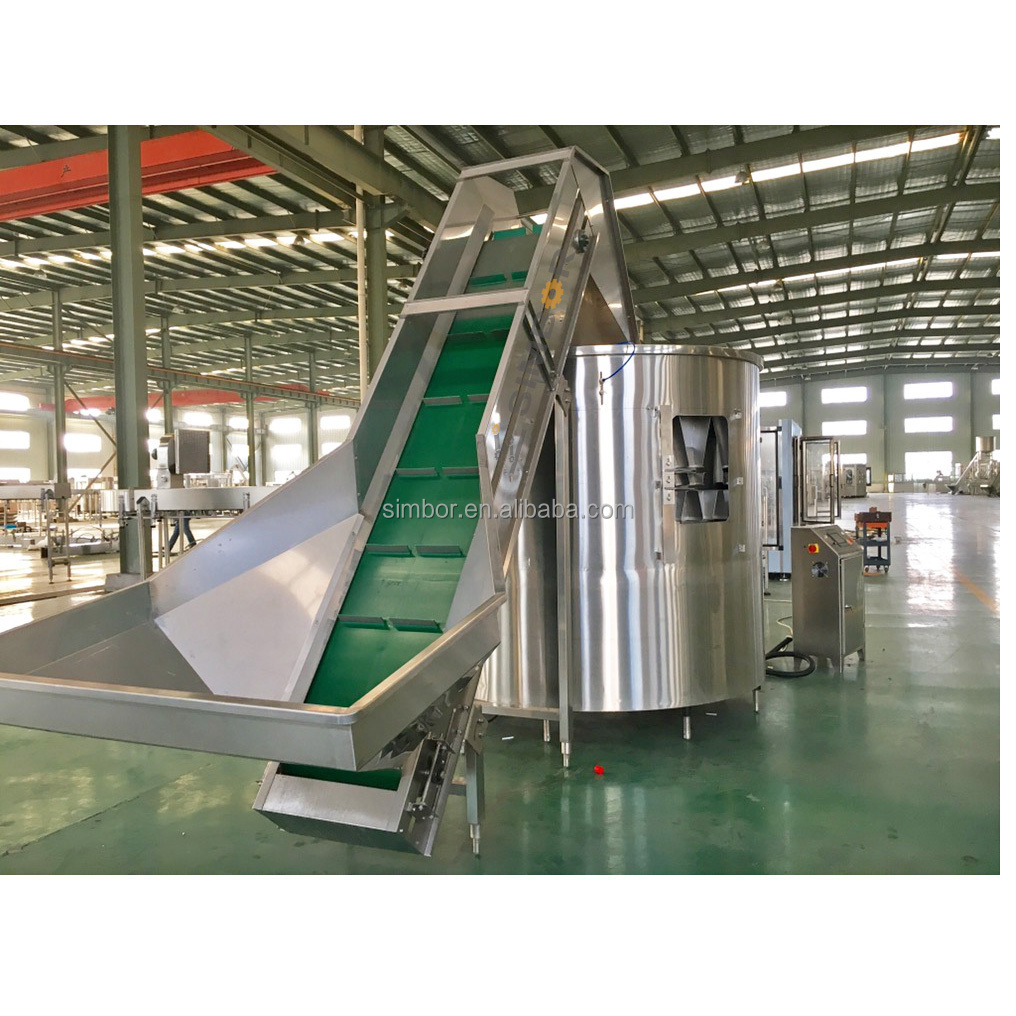

See attached photos for reference:
Oversea installation service provide & free training
24 hours online service support
