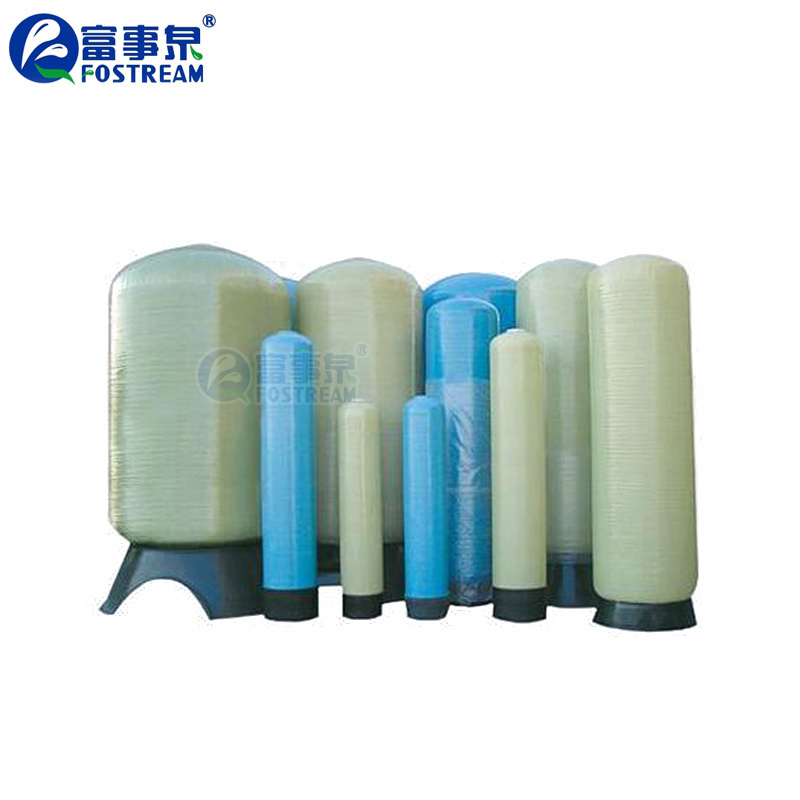

Sand Carbon Resin Softener 100M3 FRP Tank/Glass Fiber Water Tank
Sand Carbon Resin Softener 100M3 FRP Tank/Glass Fiber Water Tank
Sand Carbon Resin Softener 100M3 FRP Tank/Glass Fiber Water Tank
Sand Carbon Resin Softener 100M3 FRP Tank/Glass Fiber Water Tank
Sand Carbon Resin Softener 100M3 FRP Tank/Glass Fiber Water Tank
Sand Carbon Resin Softener 100M3 FRP Tank/Glass Fiber Water Tank
Sand Carbon Resin Softener 100M3 FRP Tank/Glass Fiber Water Tank
Sand Carbon Resin Softener 100M3 FRP Tank/Glass Fiber Water Tank

Sand Carbon Resin Softener 100M3 FRP Tank/Glass Fiber Water Tank

FOB Reference Price: Get Latest Price
≥10 Sets
US $1000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Capacity:
0.5-30T/H
Shell Layer:
Fiber Glass
Thickness:
2.5mm
Liner Material:
PE or PP
Max Working Pressure:
100 Psi
Max Test Pressure:
150 Psi
Maximum Operating Temperature:
120°F (49°C)
Color:
Natural, Blue, Gray and Green
Shipping:
By Sea or UPS/DHL/Fedex/TNT

Quick Details

Place of Origin:
Guangdong, China
After-sales Service Provided:
Video technical support
Application:
Water Treatment
Capacity:
0.5-30T/H
Shell Layer:
Fiber Glass
Thickness:
2.5mm
Liner Material:
PE or PP
Max Working Pressure:
100 Psi
Max Test Pressure:
150 Psi
Maximum Operating Temperature:
120°F (49°C)
Color:
Natural, Blue, Gray and Green
Shipping:
By Sea or UPS/DHL/Fedex/TNT

Sand Carbon Resin Softener 100M3 FRP Tank/Glass Fiber Water Tank

Product Description

Product Description

Lined with glass fiber reinforced tanks 7"----21"

1. Structure and material
Lining material: ABS engineering plastics
wrapping material: high energy oxygen resin and glass fiber
base material: 7”---16“ modified plastics 18”---21“ Composite FRP
2. Characteristics
anti-corrosion; High strength Light weight;
Lined with blow molding seamless structure without leakage;
Convenient transportation easy installation.
3. Application condition
working pressure ≤ 0.7 Mpa (100psi specification) or ≤ 1.0 Mpa (150psi specification)
Working temperature ≤ 49 ℃
Maximum vacuum 127mmHG (5" Hg)
Storage transportation environment: >-27℃
4. Design Parameter
Safety factor: 4.1
The minimum burst pressure: 400psi (100psi specification) or 600psi (150psi specification)
Lined with glass fiber reinforced tanks 24"----63"
1. Structure and material
Lining material: high performance PE
wrapping material: high energy oxygen resin and glass fiber
base material:Composite FRP
2. Characteristics
Use for commercial or industry water treatment;
Composite FRP structure, excellent anti-corrosion;
High strength Light weight,
Convenient transportation easy installation;
Roll forming lining, seamless structure without leakage;
High strength, RTM/SMC base
3. Application condition
working pressure ≤ 1.02 bar (150psi) or ≤ 0.7 bar (100psi)
Working temperature ≤ 49 ℃ (120°F) screw thread interface ≤ 65 ℃ (150°F) flange interface
Maximum vacuum 127mmHG (5" Hg)
Storage transportation environment: >-27℃ (-16.6°F)
4. Design Parameter
Safety factor: 4.1
The minimum burst pressure: 600psi (150psi specification) or 400psi (100psi specification)
