Quick Details
-
Use:
-
For PCB Circuit Board Repair
-
Weight (KG):
-
3 KG
-
Name:
-
Desoldering Vacuum Suction Pump
-
Voltage:
-
240V AC
-
Power:
-
90W
-
Temperature range:
-
160-480 Degree
-
Vacuum Pump System:
-
Air Pump Motor
-
Control System:
-
Mircroprocessor
-
Vacuum Suction:
-
Over 600MM Hg
-
Tube Length:
-
105MM
-
Power Cable Length:
-
1.2M
-
Price:
-
Negotiable
-
Certification:
-
RosH
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Pro'sKit
-
Dimensions:
-
22X16X8CM
-
Use:
-
For PCB Circuit Board Repair
-
Weight (KG):
-
3 KG
-
Name:
-
Desoldering Vacuum Suction Pump
-
Voltage:
-
240V AC
-
Power:
-
90W
-
Temperature range:
-
160-480 Degree
-
Vacuum Pump System:
-
Air Pump Motor
-
Control System:
-
Mircroprocessor
-
Vacuum Suction:
-
Over 600MM Hg
-
Tube Length:
-
105MM
-
Power Cable Length:
-
1.2M
-
Price:
-
Negotiable
-
Certification:
-
RosH
Product Description

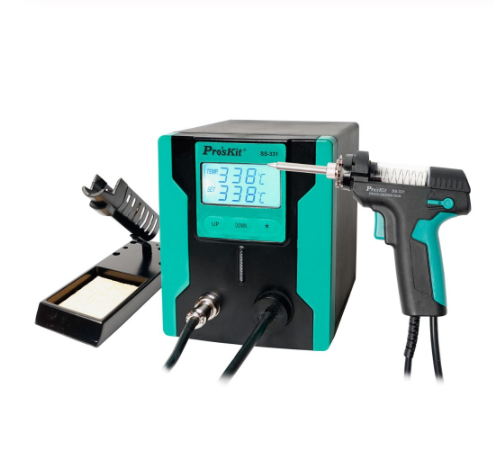

(Original!! New) Anti-Static Bga Desoldering Suction Vacuum Solder Sucker Gun 220V Lcd Desoldering Station Pro'Skit SS-331H
Package List :
1 x 220V LCD Desoldering Station
1 x Electric Desoldering Gun
1 x Stand
3 x Spare tip(Diameter 1.2 1.0 1.5mm)
3 x Cleaning Needles (Diameter 0.7 0.9 1.2mm)
12 x Filter sponge(Diameter 20.8x1 16.8x3)
USE Notice:
1.After Each Use. It is Recommended to take 3-5 times of Empty Suction to Full Clear the residual Tin in The Tube.
2.If the interval is about 20 minutes, it is recommended to use a needle to clean the steel pipe after empty suction.
3.During the use, If the suction is reduced. Please use a needle to clean the steel pipe.
4.If you do not use often, it is recommended to adjust the tin gun to about 200 degrees, and then adjust to the working temperature when using it
5.When there is about 1/2 of the tin slag in tin storage. It should be cleaned in time. When the filter Spong is hardness,Pls replaced in time.
6.The Reason For Block Desoldering Gun
1)The temperature is set too low for long time desoldering, The solder Tin does not reach the storage tube,But the temperature comes down.So they Stayed in the tube,Make it Block
2)Did not clean in time when too much tin slag in the tin storage tube , This will effect the Gun's suction , In this case , you should remove tail's tin slag . it can be removed only after you use the soldering iron to heat the tin until it melt
