- Product Details
- {{item.text}}
Quick Details
-
Type:
-
Seed Cleaner
-
Use:
-
Removed the impurity from the grain seeds
-
Production Capacity (kg/h):
-
3000 - 6000
-
Sieve Size(mm):
-
2400*1500
-
Power (kW):
-
16.1 kW
-
Weight:
-
3100 KG
-
Sieve layers:
-
3
-
Size of gravity table:
-
2200*1600 mm
-
Selecting rate:
-
≥ 97%
-
MOQ:
-
1 Set
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
sanli
-
Dimension(L*W*H):
-
6000*2350*3560mm
-
Type:
-
Seed Cleaner
-
Use:
-
Removed the impurity from the grain seeds
-
Production Capacity (kg/h):
-
3000 - 6000
-
Sieve Size(mm):
-
2400*1500
-
Power (kW):
-
16.1 kW
-
Weight:
-
3100 KG
-
Sieve layers:
-
3
-
Size of gravity table:
-
2200*1600 mm
-
Selecting rate:
-
≥ 97%
-
MOQ:
-
1 Set
Product Display
What's this machine can do?
It can effectively remove
light impurities
by air aspiration,
impurities with light bulk density
by gravity table,
impurities with large and small size
by vibration screen.
Take rice seeds as an example, see the picture below
Light impurity:
mainly including grain skin, grain husk, somestraw and dust, etc.
Bad seeds:
mainly including moth eaten, mildew, pathological changes, underdeveloped, poor grain and other bad seeds.
Also some straw objects.
Large impurities
: mainly including impurities whose overall dimension is larger than that of rice seeds, such as some
larger straws, soil blocks, etc.
Small impurities:
small rods, broken seed, sand and other small impurities.
The 5XFZ-10 Series combination seed cleaner is suitable for processing various crops and all granular materials. Especially for wheat, rice seed, sesame, flaxseed, sunflower seed and other crops with small bulk density, the sorting effect is better.
Diagrammatic sketch.
After the raw grain is fed, it is transported to the air screen by the bucket elevator to remove the dust, chaff and other light impurities in the grain. The light impurities are settled by the air duct and the cyclone dust collector, and then discharged by the air closers, Then, the grain flows into the gravity table to remove other impurities with light bulk density, such as chaff grains, bud grains, moth eaten grains, moldy grains, etc. After air separation and gravity separation, the grain finally enters the vibrating screen, and through the sieve with customized hole size, the larger and smaller size impurities are removed.

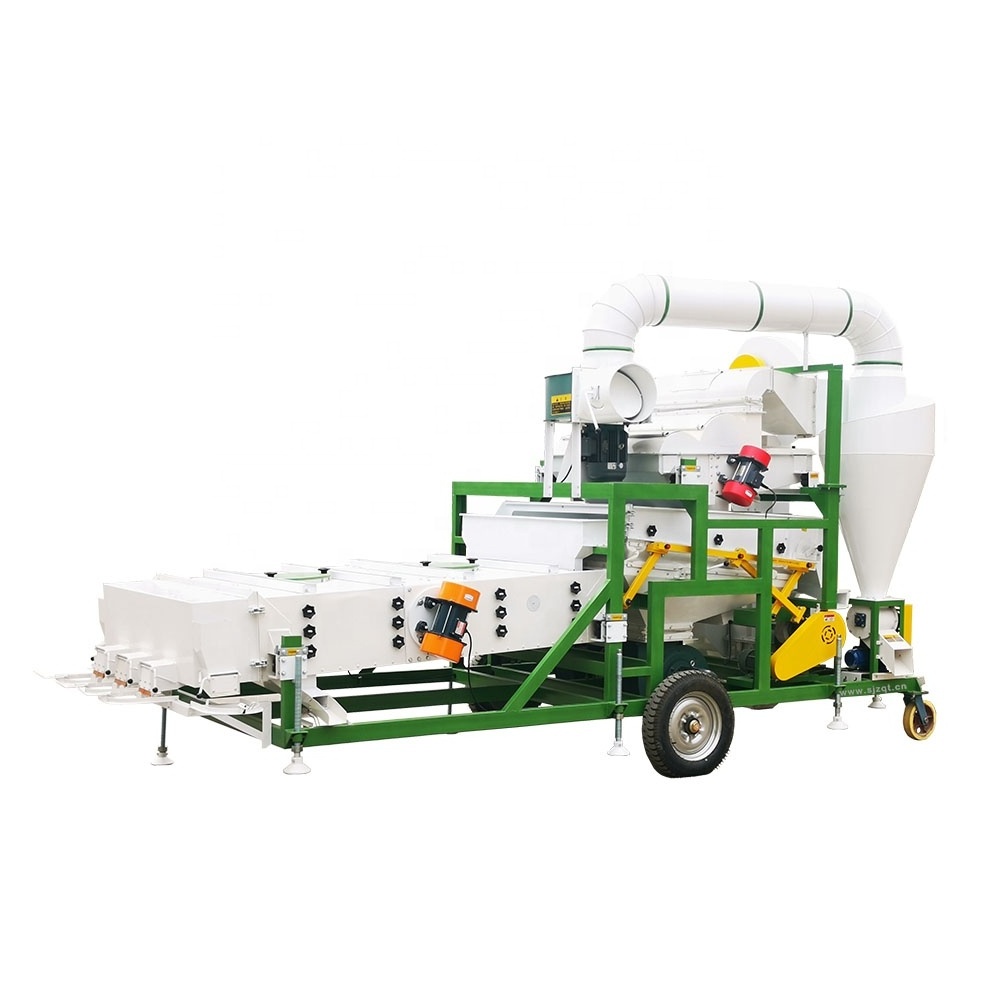

Photos of 5XFZ-10 Combination seed cleaner.
Optional accessibility.
Model: 5XFZ-10C1
Assemble wheat huller
Model: 5XFZ-10C2
Assemble
rice seed awning machine
Installation & After-sales service.
Overseas after-sales service
We have a professional after-sales installation and training team.
Video and documentation guided installation
When delivering goods, we carry detailed installation and commissioning guidance documents with the device to facilitate users to install by themselves. At the same time, we also can provide video guidance.
Product Paramenters
|
Model
|
|
5XFZ-7.5
|
5XFZ-10
|
|
|
Capacity
|
Rice seed
|
2000-3000 Kg/h
|
3000-5000 Kg/h
|
|
|
|
Wheat seed
|
5000-7000 Kg/h
|
6000-8500 Kg/h
|
|
|
|
Sesame seed
|
1200-2500 Kg/h
|
1500-3000 Kg/h
|
|
|
Size(L×W×H)
|
|
6000×2150×3560 mm
|
6000×2350×3560 mm
|
|
|
Sieve size(L×W×Layers)
|
|
2400×1250mm×3 layers
|
2400×1500mm×3 layers
|
|
|
Size of gravity table
|
|
2200×1400 mm
|
2200×1600 mm
|
|
|
Selecting rate
|
|
≥ 97%
|
≥ 97%
|
|
|
Broken rate
|
|
≤ 0.2%
|
≤ 0.2%
|
|
|
Total power
|
|
15.2 kW
|
16.1 kW
|
|
|
Weight
|
|
2800 Kg
|
3100 Kg
|
|
