Quick Details
-
Productivity:
-
100/60 cbm/h
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
/
-
Weight:
-
16 KG
-
Dimension(L*W*H):
-
10740*2500*3886mm
-
Product name:
-
Concrete Truck Mounted Line Pump 38X-5RZ/100 on sale
-
Maximum pressure on concrete:
-
80/150 bar
-
Conc. cylinders (diam. x stroke):
-
230*1650 mm
-
Concrete hopper capacity:
-
550 L
-
Maximum vertical reach:
-
37.1 M
-
Maximum horizontal distance:
-
32.8 m
-
Minimum unfolding height:
-
8 m
-
Section numbers:
-
5
-
Rotating angle:
-
±270°
-
Certification:
-
ISO,CE
Quick Details
-
Power Type:
-
Electric
-
Max. vertical conveying distance:
-
37.1 m
-
Max. horizontal conveying distance:
-
32.8 m
-
Productivity:
-
100/60 cbm/h
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
/
-
Weight:
-
16 KG
-
Dimension(L*W*H):
-
10740*2500*3886mm
-
Product name:
-
Concrete Truck Mounted Line Pump 38X-5RZ/100 on sale
-
Maximum pressure on concrete:
-
80/150 bar
-
Conc. cylinders (diam. x stroke):
-
230*1650 mm
-
Concrete hopper capacity:
-
550 L
-
Maximum vertical reach:
-
37.1 M
-
Maximum horizontal distance:
-
32.8 m
-
Minimum unfolding height:
-
8 m
-
Section numbers:
-
5
-
Rotating angle:
-
±270°
-
Certification:
-
ISO,CE
Contact
Eden Gao
Phone Number/Wechat/Whatsapp: (+86) 17865326096
Our Website:www.maxizm.com
ins:(+86) 17865326096
E-mail:eden@maxizm.com
Company:
Maxizm Construction Machinery (Qingdao) Co., Ltd.
Company Web:
http://www.maxizm.com

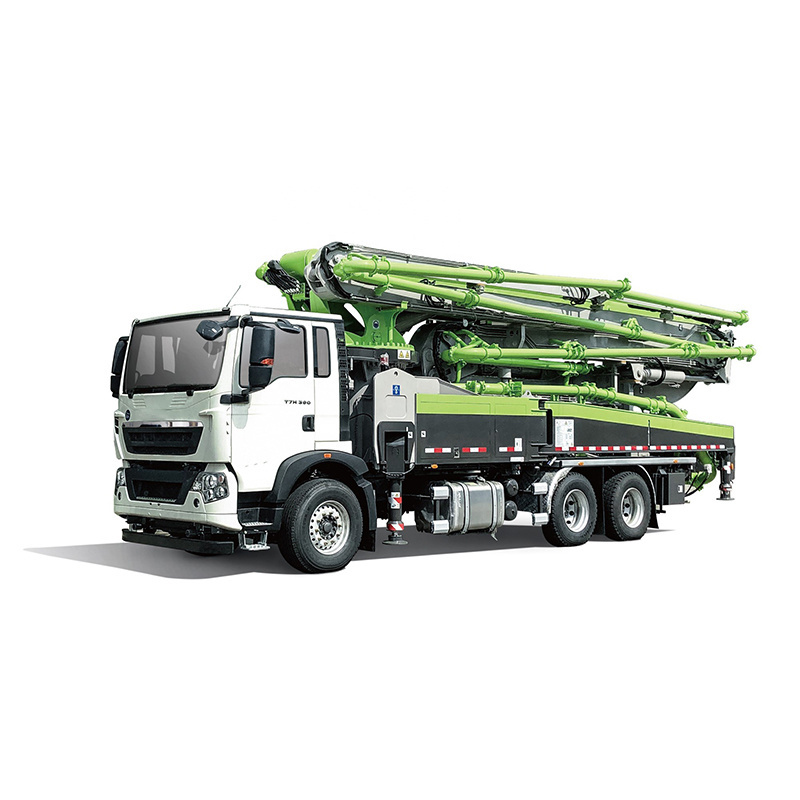

Cheap Price Concrete Truck Mounted Line Pump 38X-5RZ/100 on sale
Products Description
• Compact in design, 38m pump mounted on a 3-axle truck.
• Efficient pump unit, ideal for long time use.
• Agile placing boom with 5 arms with unfolding height 9.61m only, which gives a wide work range.
• One side lateral support enables to work in narrow sites.
• Controller is designed for heavy duty use, with a monitor which monitors the pump intelligently on working data management,
real-time diagnostics, alarm logging, and service interval notice.
• Various configurations and high quality components.
• Damping technology boom.
• Boom stabilization control.
• Multilingual man-machine interface system.
• PWM+CAN dual communication mode remote control.
• Efficient pump unit, ideal for long time use.
• Agile placing boom with 5 arms with unfolding height 9.61m only, which gives a wide work range.
• One side lateral support enables to work in narrow sites.
• Controller is designed for heavy duty use, with a monitor which monitors the pump intelligently on working data management,
real-time diagnostics, alarm logging, and service interval notice.
• Various configurations and high quality components.
• Damping technology boom.
• Boom stabilization control.
• Multilingual man-machine interface system.
• PWM+CAN dual communication mode remote control.
Product Paramenters
|
Model
|
|
Unit
|
38X-5RZ-2
|
|
|
Pump Unit
|
Maximum theorical output
|
m3/h
|
100/60
|
|
|
|
Maximum pressure on concrete
|
bar
|
80/150
|
|
|
|
Conc. cylinders (diam. x stroke)
|
mm
|
230x1650
|
|
|
|
Concrete hopper capacity
|
L
|
550
|
|
|
|
Hydraulic circuit
|
|
Open
|
|
|
Boom Section
|
Maximum vertical reach
|
m
|
37.1
|
|
|
|
Maximum horizontal distance
|
m
|
32.8
|
|
|
|
Minimum unfolding height
|
m
|
8
|
|
|
|
Section numbers
|
|
5
|
|
|
|
Rotating angle
|
|
±270°
|
|
|
|
End hose lenght
|
m
|
3
|
|
