Quick Details
-
Brand Name:
-
SY
-
Model Number:
-
SY371216
-
Usage:
-
furniture desk
-
Description:
-

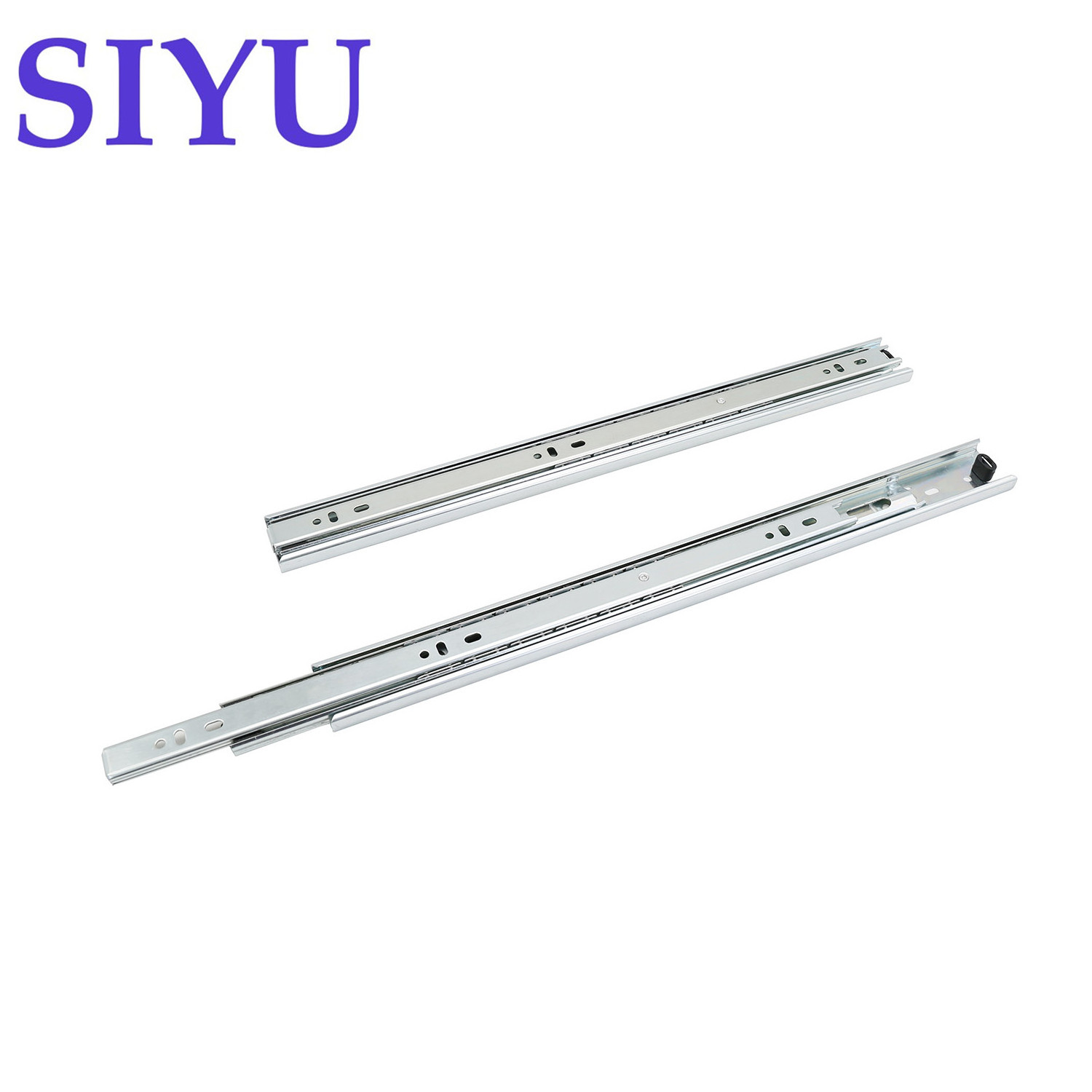

Us General Tool Box Parts, Full Extension Ball Bearing Drawer Channel
-
Width:
-
37mm
-
Thickness:
-
1.2x1.0x1.2mm
-
Finish:
-
zinc plated, electrolytic black
-
Installation Gap:
-
12.7±0.2mm
-
Loading capacity:
-
35kg/450mm
-
Length:
-
400mm(16")
-
Quality:
-
high quality
Quick Details
-
Type:
-
Slide, drawer slide
-
Material:
-
cold rolled steel, cold rolled steel
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SY
-
Model Number:
-
SY371216
-
Usage:
-
furniture desk
-
Description:
-
Us General Tool Box Parts, Full Extension Ball Bearing Drawer Channel
-
Width:
-
37mm
-
Thickness:
-
1.2x1.0x1.2mm
-
Finish:
-
zinc plated, electrolytic black
-
Installation Gap:
-
12.7±0.2mm
-
Loading capacity:
-
35kg/450mm
-
Length:
-
400mm(16")
-
Quality:
-
high quality
Welcome To Siyu Metal Factory
Amazing Place to Discover
Drawer Slide
Product Description
| Product Name | Us General Tool Box Parts, Full Extension Ball Bearing Drawer Channel |
| Item No. | SY371216 |
| Material | Cold Rolled Steel |
| Size | Width: 37mm |
| Length: 400mm (16") | |
| Installation Gap | 12.7±0.2 |
| Thickness |
0.9x0.9x1.0mm 1.0x1.0x1.2mm 1.2x1.0x1.2mm |
| Finish | Zinc Plated, Electrophoresis Black |
| Optional |
Full Extension |
| MOQ | 500 pairs |
| Design | 1, Customized logos are highly welcomed. |
| 2, We have our own design team | |
| 3, OEM | |
| Application | Kitchen Cabinet, Drawer, Office Desk, Furniture, Tool Box, Pull-out Basket, etc |
Packaging & shipping
| Packaging | 1, Nomal: 1set/polybag, then 10 or 15 sets in a carton |
| 2, Special: 1set/polybag with both side paper box, then shrink blister packing, and then 10 or 15 sets in a carton | |
| 3, Special: 1set in a color paper box, then 10 or 15 sets in a carton | |
| 4, Special: 1set in a full color polybag, then 10 or 15 sets in a carton | |
| Smples Policy | Free Charge. Need Express cost |
| Lead Time | 20 Working Days |
| Shipping | 1. Samples order: DHL/UPS/Fedex/EMS/TNT |
| 2. Bulk order: by sea or by air. | |
| 3. Choose the best and convenient way for your need. | |
| Payment | 1. T/T 30% in advance as deposit and 70% balance paid before shipping |
| Supply Capacity | Drawer Slide: 400000-500000 pairs per month |
|
Table Slide: 5000 pairs per month |
Warranty&Return Policy
1,If you find any damage and defective product after received our goods, pls contact us ASAP. By email, with evidence like photos, we will arrange refunds or exchange.
2,If you find bulk defective products after received our goods, pls send evidence like photos by email. After confirmed, we will send our workers to fix it if necessary.
3, Refunding, exchanging or repairing will be executed efficiently in a short time with any delay.
Our Services
1, We can supply drawer slide with different width, lenght, and material thickness. We have drawer slide in width of 35mm, 40mm, 45mm, 53mm, etc.
2, We have a spcial and professional team. We can help you find any goods like drawer slide, hinge, locks, you would like to purchase and consolidate them into containers.
Products Images
Product Specification
Packaging Details
| Spec | Material Thickness(mm) | QTY/CTN | Length | N.W(kg) | G.W(kg) | Carton Size(cm) |
| 37-10" | 1.2x1.0x1.2 | 20 sets | 250 | 11.40 | 11.65 | 27x20x11 |
| 37-12" | 1.2x1.0x1.2 | 20 sets | 300 | 13.68 | 13.93 | 32x20x11 |
| 37-14" | 1.2x1.0x1.2 | 20 sets | 350 | 15.96 | 16.21 | 37x20x11 |
| 37-16" | 1.2x1.0x1.2 | 20 sets | 400 | 18.24 | 18.54 | 42x20x11 |
| 37-18" | 1.2x1.0x1.2 | 20 sets | 450 | 20.52 | 20.82 | 47x20x11 |
| 37-20" | 1.2x1.0x1.2 | 20 sets | 500 | 22.80 | 23.10 | 52x20x11 |
| 37-22" | 1.2x1.0x1.2 | 20 sets | 550 | 25.08 | 25.38 | 57x20x11 |
| 37-24" | 1.2x1.0x1.2 | 20 sets | 600 | 27.36 | 27.71 | 62x20x11 |
| 37-26" | 1.2x1.0x1.2 | 20 sets | 650 | 29.64 | 29.99 | 67x20x11 |
Packing Images
Certifications
Factory Tour
Sample Room
Production Line
Zinc Plated Line
Why can you trust us?
1. Exporting experience for 6 years can assure you high quality, best service, fast delivery.
2. We are factory and manufacturer . Directly contacting us, instead of trading company avoid any misunderstanding.
3. Leadtime will be 15-20 days . We can produce 1 container of drawer slide in one day. This guarantee your delivery requirement.
4. Small orders are also welcome. We can accept MOQ low to 1000sets
5. We have a professional QC team to guarantee the normative daily quality control and production quality.
6. We have spray testing equipment and loading capacity testing equipment . We test our drawer slide regularly for guarantee.
