Quick Details
-
Brand Name:
-
LTMG
-
Fork Length:
-
1600mm
-
Fork Width:
-
180mm
-
Overall Dimensions:
-
7500*3000*3400mm
-
Weight (KG):
-
162000 kg
-
Product Name:
-
Rough Terrain Forklift
-
Key words:
-
articulated forklift
-
Type:
-
15 Ton Forklift
-
Load Center:
-
600mm
-
Free lift height:
-
100mm
-
Fork distance:
-
Min. 400mm / Max. 1480mm
-
Mast tilt angle:
-
6 / 8
-
Front overhang:
-
1210mm
-
Turning radius:
-
7300mm
-
Marketing Type:
-
New Product 2024
Quick Details
-
Min. Lifting Height:
-
0
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
LTMG
-
Fork Length:
-
1600mm
-
Fork Width:
-
180mm
-
Overall Dimensions:
-
7500*3000*3400mm
-
Weight (KG):
-
162000 kg
-
Product Name:
-
Rough Terrain Forklift
-
Key words:
-
articulated forklift
-
Type:
-
15 Ton Forklift
-
Load Center:
-
600mm
-
Free lift height:
-
100mm
-
Fork distance:
-
Min. 400mm / Max. 1480mm
-
Mast tilt angle:
-
6 / 8
-
Front overhang:
-
1210mm
-
Turning radius:
-
7300mm
-
Marketing Type:
-
New Product 2024
Advantages
1. Joystick control makes the operation more convenient and flexible.
2. Powerful and easy to maintain.
3. Specially designed for the harsh road conditions in mines.
4. High longitudinal stability, robust construction, good quality and durability.
5. Rational use of engine power and effective reduction of energy consumption.
7. Improve the stability of the hydraulic system to ensure reliable operation."
|

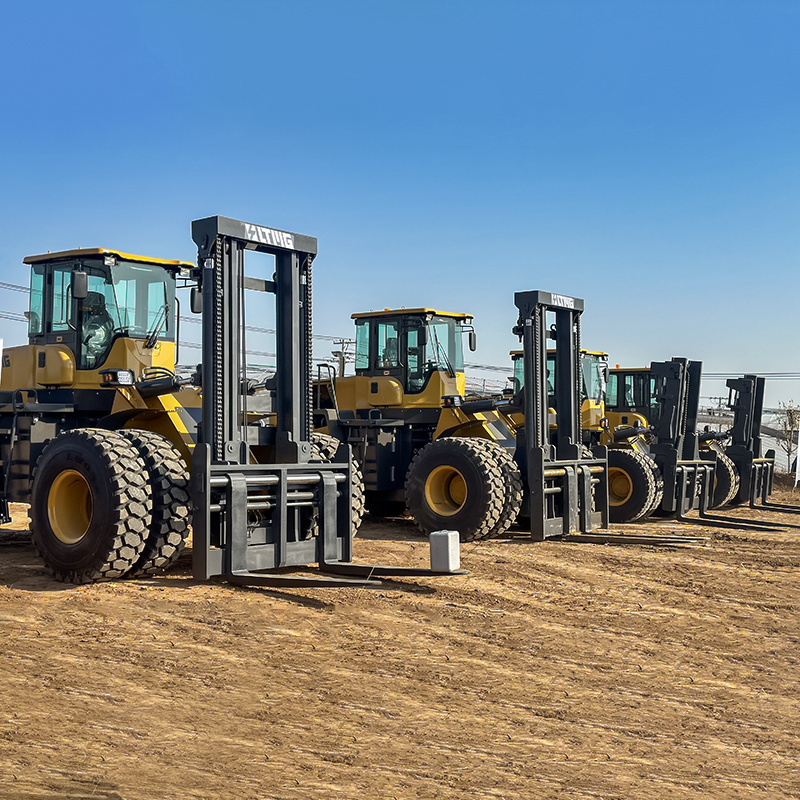

LTMG Articulated off-road forklift truck
|
|
|
|
|||
|
model
|
|
unit
|
LTR120
|
|||
|
Product name
|
|
|
|
|||
|
Rated load
|
|
Kg
|
12000
|
|||
|
Load center distance
|
|
mm
|
600
|
|||
|
Lifting height
|
|
mm
|
3600
|
|||
|
Gantry tilt angle (forward/backward tilt)
|
|
°
|
(6)(12)
|
|||
|
Maximum travel speed
|
|
Km/h
|
30
|
|||
|
Full load grade
|
|
°
|
20
|
|||
|
Self weight
|
|
Kg
|
162000
|
|||
|
Track (front/rear)
|
|
mm
|
front 2400 rear2000
|
|||
|
Wheelbase
|
|
mm
|
3000
|
|||
|
Dimensions (length x width x height)
|
|
mm
|
7500x3000x3400
|
|||
|
Full load lifting speed
|
|
mm/s
|
200
|
|||
|
Minimum turning radius
|
|
mm
|
5600
|
|||
|
Minimum ground clearance
|
|
mm
|
330
|
|||
|
engine
|
model
|
|
6BT5.9-C180
|
|||
|
|
manufacturer
|
|
Dongfeng cummins
|
|||
|
|
Rated power
|
Kw
|
132kw
|
|||
|
Battery
|
Voltage
|
V
|
24
|
|||
|
|
Capacity
|
Ah
|
100
|
|||
|
Transmission
|
Forward hydraulic torque converter gearbox
|
|
|
|||
|
Working system
|
Pilot operating system
|
|
|
|||
|
Tire
|
|
front
|
4*12.00R24
|
|||
|
|
|
rear
|
2*17.5-25
|
|||
|
Drive axle
|
50-wheel side deceleration bridge
|
four-wheel drive
|
Pneumatic clamp brake
|
|||
|
Fork
|
fork positionsers
|
|
|
|||
|
Cabin
|
cab with sound system, fan
|
|
|
|||
