Quick Details
-
Lo:
-
1998,2033,1738 and custom Lo
-
Power:
-
DC 25-24V
-
Gain:
-
34dB±1.5
-
Custom made:
-
support custom frequency and Lo
-
Application:
-
MMDSTerrestrail coverage ,MMDS System
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Input frequency:
-
2500-2700MHz; 2700-2900MHz; 2300-2500MHz
-
Bandwidth support:
-
200 MHZ
-
Lo:
-
1998,2033,1738 and custom Lo
-
Power:
-
DC 25-24V
-
Gain:
-
34dB±1.5
-
Custom made:
-
support custom frequency and Lo
-
Application:
-
MMDSTerrestrail coverage ,MMDS System

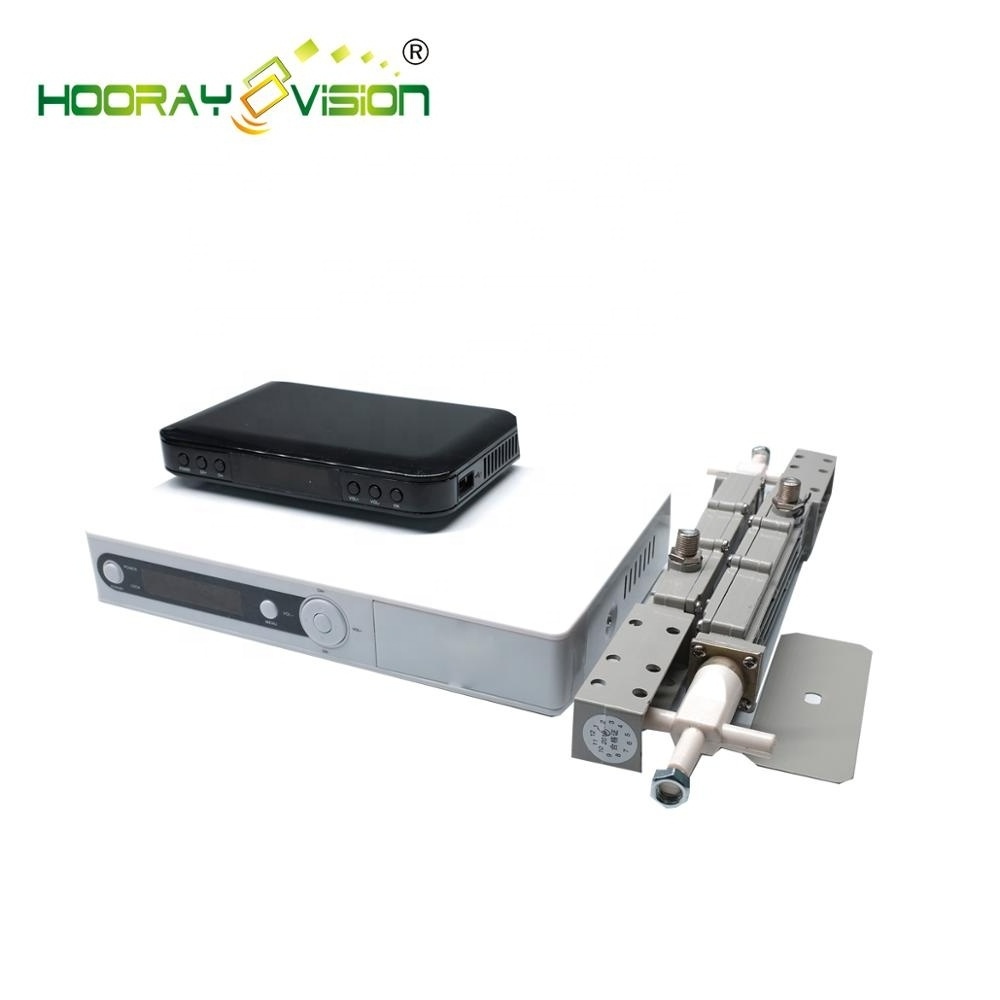

HRM-100 2500-2700MHz 2700-2900MHz mmds antenna integrated with MMDS LNB down converter
|
MMDS Down Converter |
|
|
Input Frequency |
2500-2700MHz |
|
Noise Figure : |
1.5d |
|
Image Rejection : |
≥60dB |
|
3 order intermodulation : |
≤-50dB |
|
Conversion Gain : |
34dB±1.5 |
|
L.O. Leakage Antenna Port : |
≤-85dBm |
|
L.O. Leakage IF-Port : |
≤-50dBm |
|
L.O. Phase Noise |
|
|
|
-80dBc@100Hzoffset |
|
|
-85dBc@1kHzoffset |
|
|
-93dBc@10kHzoffset |
|
|
-95dBc@100kHzoffset |
|
|
-120dBc@1MHzoffset |
|
Gain Flatness : |
≤0.2dB/CHANNEL |
|
IF Output Impedance : |
75ohms |
|
DC Input voltage : |
15v-24v |
|
L.O. Frequency : |
1838,1926,,2030,2033,2278,2233 |
|
2065MHz… |
(It can be customized) |
|
L.O. Stability: |
≤±25KHz |
|
Operating Temperature: |
-40 ℃ to +70 ℃ |
|
100% Hermetic: |
Sealed |
