Quick Details
-
Brand Name:
-
LOOBO
-
Product name:
-
Fume Extractor
-
Application:
-
Welding
-
Dimension:
-
900*800*1400mm
-
Usage:
-
Dust Filtration
-
Function:
-
Industrial Waste Gas Purification
-
Material:
-
Cold Rolled Steel
-
Keyword:
-

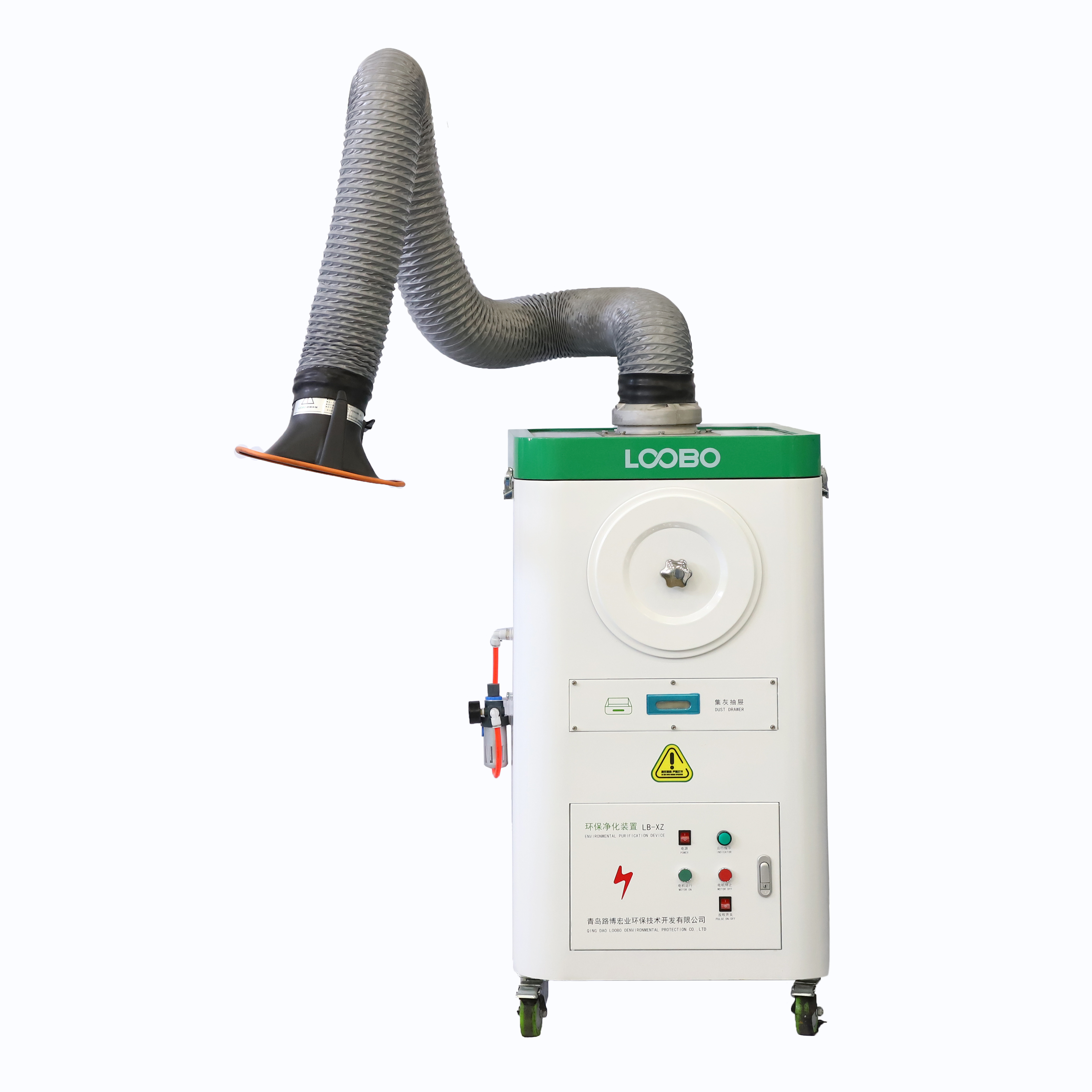

Portable Welding Fume Extractor
-
Certification:
-
CE Certification
-
Name:
-
welding fume extractor
-
Cleanliness:
-
Class100-10000 Customized
Quick Details
-
Weight (KG):
-
160
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LOOBO
-
Product name:
-
Fume Extractor
-
Application:
-
Welding
-
Dimension:
-
900*800*1400mm
-
Usage:
-
Dust Filtration
-
Function:
-
Industrial Waste Gas Purification
-
Material:
-
Cold Rolled Steel
-
Keyword:
-
Portable Welding Fume Extractor
-
Certification:
-
CE Certification
-
Name:
-
welding fume extractor
-
Cleanliness:
-
Class100-10000 Customized
Product Description
Control of exposure to welding fumes can usually be achieved with the help of extraction and ventilation. The choice of technique depends on the circumstances. The aim is to capture the welding fumes as close to the source as possible. This protects not only the welder but also other workers. Nederman systems are designed to extract welding smoke from a number of workstations but are also used for cleaning of workplaces and machines. The product range also includes portable fume extractors for welding fume extraction, hose reels for gas and compressed air, and cable reels for electric power.
Details Images
Applied to purification of smoke and dust produced by various of welding(arc welding, carbon dioxide arc welding, MAG welding, carbon arc gouging, gas welding, special welding and so on),polishing, cutting and grinding and recycle of rare metals and precious materials.
|
Model
|
Airflow(m3/h)
|
Voltage
|
Power(kw)
|
Body size(mm)
|
Noise(dB(A))
|
|
LB-XZ1500
|
1500
|
380V/220V
/418V/50H
Z/60HZ or
customer
requested
|
1.5
|
650*600*1250
|
≤65
|
|
LB-XZ2400
|
2400
|
|
2.2
|
650*600*1250
|
≤68
|
|
LB-XZ1500D
|
1500
|
|
1.5
|
650*670*1250
|
≤65
|
|
LB-XZ2400D
|
2400
|
|
2.2
|
650*670*1250
|
≤68
|
|
LB-XZ3600S
|
3600
|
|
3.0
|
710*710*1320
|
≤70
|
|
LB-XZ3600SD
|
3600
|
|
3.0
|
710*795*1320
|
≤70
|
Product packaging
1. Put the product into the master carton .
2. Put the master carton into the plywood box.
3. Put the plywood box into the container. .
2. Put the master carton into the plywood box.
3. Put the plywood box into the container. .
