Quick Details
-
Frequency:
-
50HZ
-
Welding Area:
-
30mm thickness
-
Dimensions:
-
3700mmx1100mmx1200mm, 2550x640x960
-
Use:
-
plastic board and tube
-
Weight (KG):
-
1500 KG
-
Power (kW):
-
4/5
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Pakistan, India, Mexico, Russia, Spain, Thailand, Australia, Morocco, Argentina, South Korea, Chile, UAE, Colombia, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
-
Showroom Location:
-
Egypt, Canada, Turkey, France, Germany, Viet Nam, Philippines, Brazil, Saudi Arabia, Pakistan, Mexico, Spain, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Australia
-
Roll circle diameter minimum:
-
320
-
Air pressure:
-
4-8
-
Suitable for material:
-
PP PVC PVCD PPN PE plastic
-
Energy source:
-
0.0062
-
Rated current:
-
13.6
-
Heating mode:
-
Overall heating
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OBT
-
Voltage:
-
380V
-
Frequency:
-
50HZ
-
Welding Area:
-
30mm thickness
-
Dimensions:
-
3700mmx1100mmx1200mm, 2550x640x960
-
Use:
-
plastic board and tube
-
Weight (KG):
-
1500 KG
-
Power (kW):
-
4/5
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Pakistan, India, Mexico, Russia, Spain, Thailand, Australia, Morocco, Argentina, South Korea, Chile, UAE, Colombia, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
-
Showroom Location:
-
Egypt, Canada, Turkey, France, Germany, Viet Nam, Philippines, Brazil, Saudi Arabia, Pakistan, Mexico, Spain, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Australia
-
Roll circle diameter minimum:
-
320
-
Air pressure:
-
4-8
-
Suitable for material:
-
PP PVC PVCD PPN PE plastic
-
Energy source:
-
0.0062
-
Rated current:
-
13.6
-
Heating mode:
-
Overall heating
ppr plastic pipe hdpe electrofusion welding machine ce 90 degree for sale
The plastic sheet butt fusion machine is of our own design, with Germany technology applied. This model is accurate, efficient & easy-to-use, and can be used to weld in horizontal and c ircular position and perform joints as well
3000mm, 4000mm, 5000mm plastic board welding machine all available.
Popular among Russia, Australia, Netherland, New Zealand etc.
The machine can both rolling welding and plain welding. This product can weld plastic plates to 90 degrees

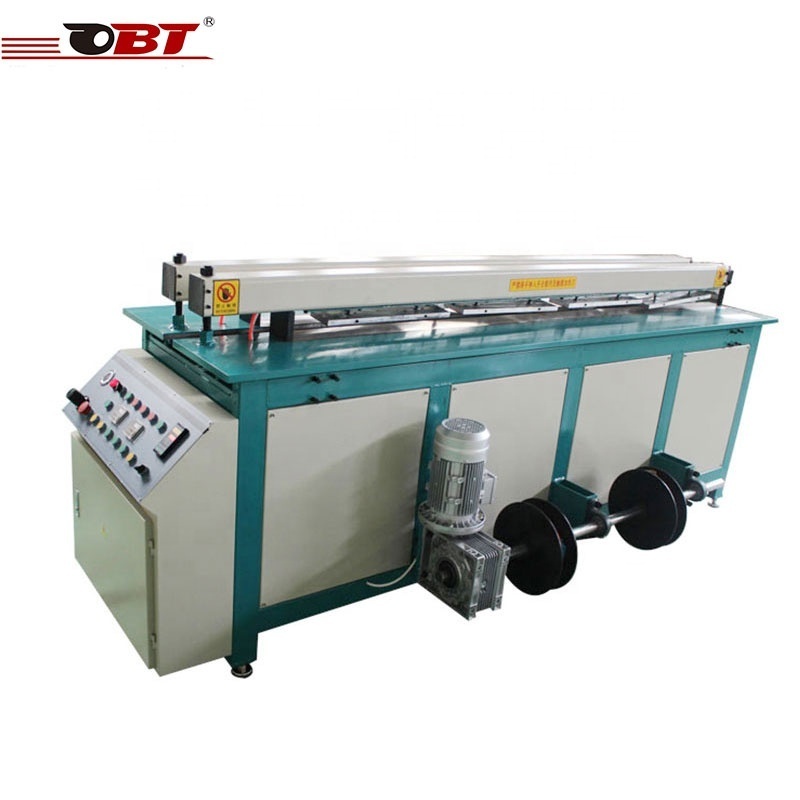

Our plastic bending machine picture and specifications
| OBT2000 | OBT3000 | OBT4000 | OBT5000 | OBT6000 | |||||
| Processing thickness(mm) | 2-50 | 2-50 | 2-50 | 2-50 | 2-50 | ||||
| Processing length(mm) | 2000 | 3000 | 4000 | 5000 | 6000 | ||||
| Roll circle diameter min(mm) | 320 | 400 | 450 | 550 | 550 | ||||
| Air pressure(kg.f/cm2) | 4to8 | 4to8 | 6to8 | 6to8 | 6to8 | ||||
| Energy source(m3/min) | 0.0032 | 0.0052 | 0.0062 | 0.0068 | 0.0075 | ||||
| The rated voltage(V) | 380 | 380 | 380 | 380 | 380 | ||||
| Rated current(A) | 9 | 13.6 | 13.6 | 13.6 | 13.6 | ||||
| Heating mode | whole heating | whole heating | whole heating | whole heating | whole heating | ||||
| Drum institutions(parts) | selectable | selectable | selectable | selectable | selectable | ||||
| Length*Width*Height(mm) | 2550*640*960 | 3700*1100*1200 | 4750*1200*1120 | 5750*2500*1020 | 6750*2500*1020 | ||||
| Suitable for material | PP PVC PVDF PPN PE | ||||||||
This product can weld plastic plates to 90 degrees
Why choose us
As long as you purchased equipments from us, we would provide any replacement part of your equipment at any time you need.
you can use machine in these areas.
our certification
Production Process
Our factory
Generally we will take care of your machine packages well ,Firstly our worker will make sure your machine clean before package.then add stretchy film for the whole machine and spare parts for sweet protection,at last we will make export standard strong plywood case package according to your needs.
if you have any question, please contact us
